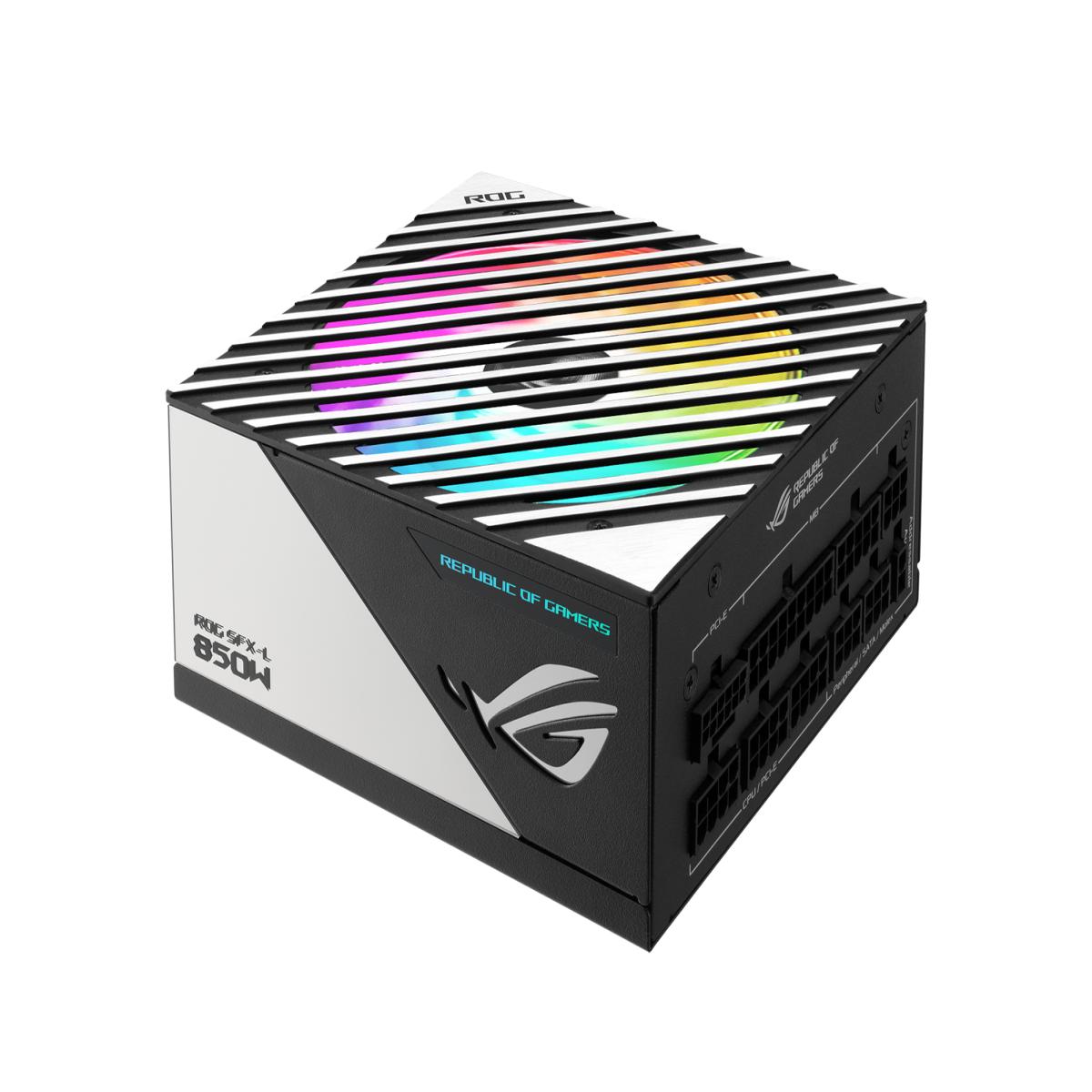

ASUS ROG Loki SFX-L 850W Platinum power supply unit 24-pin ATX Black, Silver

ASUS ROG Loki SFX-L 850W Platinum power supply unit 24-pin ATX Black, Silver

£194.57

ASUS ROG Loki SFX-L 850W Platinum, 850 W, 100 - 240 V, 110 W, 850 W, 110 W, 9.6 W

out of stock

SKU: 90YE00N3-B0NA00

ROG Loki 850W PlatinumThe Quietest SFX-L PSUTaking after the ROG Thor, the ROG Loki SFX-L 850W Platinum brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.ROG HeatsinksCool under pressureROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.80 PLUS Platinum CertifiedEffortless outputLow-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come.ATX 3.0 CompatibleStep into the futureThe latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs.ARGB-illuminated Fan & Aura SyncMagical glowThe Loki's 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.* If the connector cable is not used, the default color effect is rainbow.* To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.

E&OE

  • 850 W 100 - 240 V
  • Motherboard power connector: 24-pin ATX
  • PC SFX-L 80 PLUS Platinum
  • Active 12 cm
  • Black, Silver
Weight 2.50kg
Brand ASUS
Total power 850 W
Number of SATA power connectors 6
80 PLUS certification 80 PLUS Platinum
Power supply unit (PSU) form factor SFX-L
Specifications Power
Total power: 850 W
AC input voltage: 100 - 240 V
Combined power (+3.3V): 110 W
Combined power (+12V): 850 W
Combined power (+5V): 110 W
Combined power (-12V): 9.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V): 70.8 A
Max output current (+5V): 20 A
Max output current (-12V): 0.8 A
Max output current (+5Vsb): 2.5 A
Ports & interfaces
Motherboard power connector: 24-pin ATX
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 4
PCI Express power connectors (8-pin): 3
PCI Express power connectors (16-pin): 1
CPU power connector (4+4 pin): Yes
PCI Express connector: Yes
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Platinum
Supported motherboard form factors: ATX
Purpose: PC
Power supply unit (PSU) form factor: SFX-L
ATX version: 3.1
Silent mode: Yes
Design
Product colour: Black, Silver
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Illumination: Yes
Certificates
Compliance certificates: RoHS
Certification: OPP/OVP/UVP/SCP/OCP/OTP
Weight & dimensions
Width: 125 mm
Depth: 125 mm
Height: 63.5 mm
Weight: 1.81 kg
Packaging data
Package width: 285 mm
Package depth: 190 mm
Package height: 100 mm
Package weight: 2.5 kg
Package type: Box
