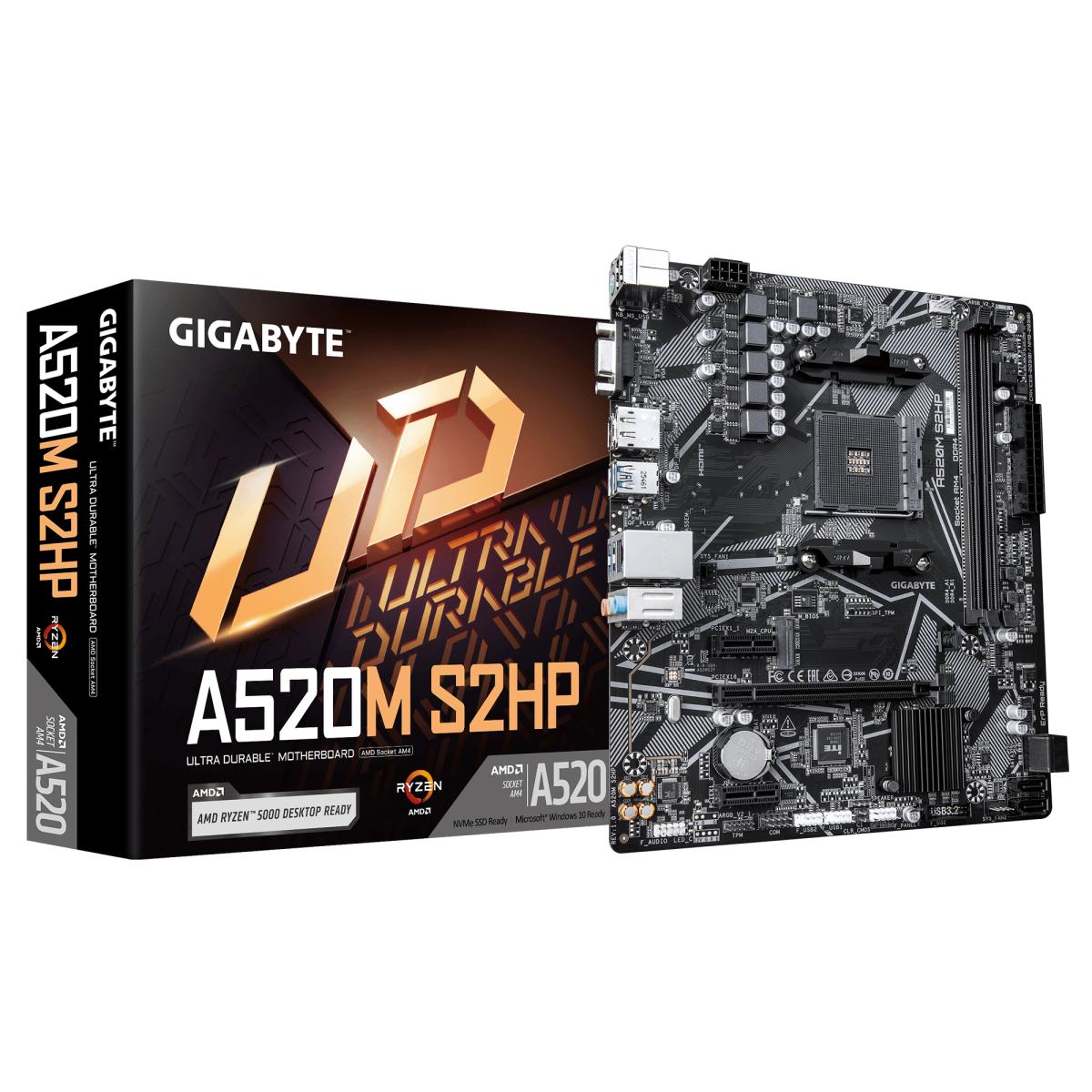

GIGABYTE A520M S2HP Motherboard
£58.02
GIGABYTE A520M S2HP Motherboard, AMD, Socket AM4, AMD Ryzen 3000 Series, Socket AM4, DDR4-SDRAM, 64 GB
250 in stock
SKU: A520M S2HP
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
E&OE
- AMD Socket AM4 AMD Ryzen 3000 Series
- PC micro ATX AMD A520 7.1 channels
- DDR4-SDRAM 2 DIMM Maximum internal memory: 64 GB
- M.2, PCI Express 3.0, SATA RAID support
- BIOS type: UEFI AMI 128 Mbit ACPI version: 5.0 Clear CMOS jumper Clear CMOS button
- Gigabit Ethernet
| Weight | 0.77kg |
|---|---|
| Specifications | Processor Processor manufacturer: AMD Processor socket: Socket AM4 Compatible processor series: AMD Ryzen 3000 Series Maximum number of SMP processors: 1 Supported processor sockets: Socket AM4 Memory Supported memory types: DDR4-SDRAM Number of memory slots: 2 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: ECC & Non-ECC Supported memory clock speeds: 2133,2400,2667,2933,3200,3333,3600,4866 MHz Supported memory clock speed (max): 3200 MHz Maximum internal memory: 64 GB Storage controllers Supported storage drive interfaces: M.2, PCI Express 3.0, SATA RAID support: Yes RAID levels: 0, 1, 10 Graphics On-board graphics card: No HDCP: Yes Internal I/O USB 2.0 connectors: 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1 Number of SATA III connectors: 4 ATX Power connector (24-pin): Yes Power fan connector: Yes CPU fan connector: Yes Number of chassis fan connectors: 2 RGB LED pin header: Yes Number of RGB LED pin headers: 4 Rear panel I/O ports USB 2.0 ports quantity: 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4 Ethernet LAN (RJ-45) ports: 1 PS/2 ports quantity: 1 HDMI ports quantity: 1 Network Ethernet LAN: Yes Ethernet interface type: Gigabit Ethernet Wi-Fi: No Features Motherboard chipset: AMD A520 Audio output channels: 7.1 channels Product colour: Black Component for: PC Motherboard form factor: micro ATX Motherboard chipset family: AMD Expansion slots PCI Express x1 (Gen 3.x) slots: 2 PCI Express x16 (Gen 3.x) slots: 1 Number of M.2 (M) slots: 1 BIOS BIOS type: UEFI AMI BIOS memory size: 128 Mbit ACPI version: 5.0 Clear CMOS jumper: Yes Clear CMOS button: Yes Desktop Management Interface (DMI) version: 2.7 System Management BIOS (SMBIOS) version: 2.7 Logistics data Country of origin: China Products per shipping (inner) case: 1 pc(s) Battery Battery weight: 3 g Lithium weight per battery: 0.07 g Number of battery cells: 1 Battery capacity: 220 mAh Battery technology: Lithium-Manganese Dioxide (LiMnO2) Battery type: CR2032 Packaging data Package width: 265 mm Package depth: 235 mm Package height: 52 mm Package weight: 772 g Weight & dimensions Width: 244 mm Depth: 205 mm Height: 35 mm Packaging content Batteries included: Yes Technical details Warranty period: 3 year(s) |
