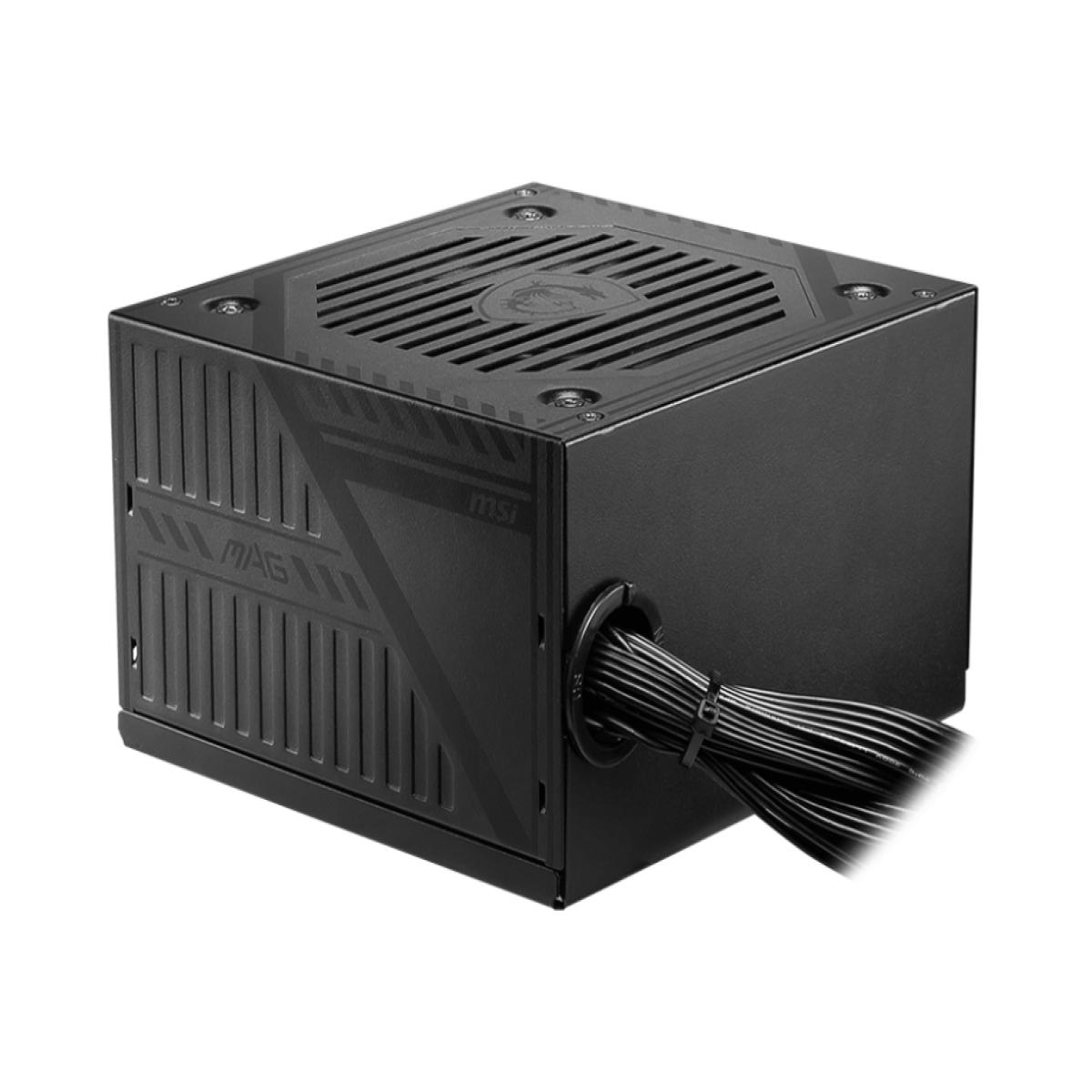

MSI MAG A550BNL power supply unit 550 W 24-pin ATX ATX Black
£27.90 inc VAT
out of stock
SKU: MAG A550BNL
The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.The MAG A550BNL’s distinctive design patterns symbolize unity and strength. It unites all the components by reliably and stably supplying power to the entire system. With the MAG A550BNL, any system has the power it needs to survive all challenges.80 PLUS BRONZEThe efficiency of your power supply directly influences your system’s performance and power consumption. The 80 PLUS certification promises lower energy consumption and qualified efficiency level.PROTECTION DESIGNProtection is designed to protect the unit mechanisms and provides comprehensive protection.TEMPERATURE ADAPTATIONEngineered for reliability, your system operates safely at peak performance even in high-temperature conditions. This rugged power supply ensures sustained operation regardless of your environment.120mm LOW NOISE FANThe 120mm fan reduces the noise generated while maintaining excellent heat dissipation.FLAT CABLE EQUIPMENTThe MAG A550BNL’s cables are flat and in black. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized.
E&OE
- 550 W 100 - 240 V 50/60 Hz
- Motherboard power connector: 24-pin ATX
- PC ATX 80 PLUS Bronze
- Active 12 cm
- Black
| Weight | 0.32kg |
|---|---|
| Brand | MSI |
| Total power | 550 W |
| Number of SATA power connectors | 5 |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | ATX |
| Specifications | Power Total power: 550 W AC input voltage: 100 - 240 V AC input frequency: 50/60 Hz Power Factor Correction (PFC) type: Active Combined power (+3.3V): 105 W Combined power (+12V): 648 W Combined power (+5V): 105 W Combined power (-12V): 3.6 W Combined power (+5Vsb): 12.5 W Max output current (+3.3V): 14 A Max output current (+12V): 54 A Max output current (+5V): 14 A Max output current (-12V): 0.3 A Max output current (+5Vsb): 2.5 A Efficiency: 85% Power protection features: Over current, Over power, Over voltage, Short circuit Ports & interfaces Motherboard power connector: 24-pin ATX Number of SATA power connectors: 5 Peripheral (Molex) power connectors (4-pin): 2 EPS power connector (8-pin): No EPS power connector (4+4 pin): Yes PCI Express power connectors (6+2 pin): 2 ATX Power connector (24-pin): Yes ATX power connector (20+4 pin): No Floppy disk drive connector: Yes Cabling type: Non-Modular Performance 80 PLUS certification: 80 PLUS Bronze Purpose: PC Power supply unit (PSU) form factor: ATX Bearing technology: Hydraulic Design Product colour: Black Cooling type: Active Fan diameter: 12 cm Number of fans: 1 fan(s) On/off switch: Yes Weight & dimensions Width: 140 mm Depth: 150 mm Height: 86 mm |
