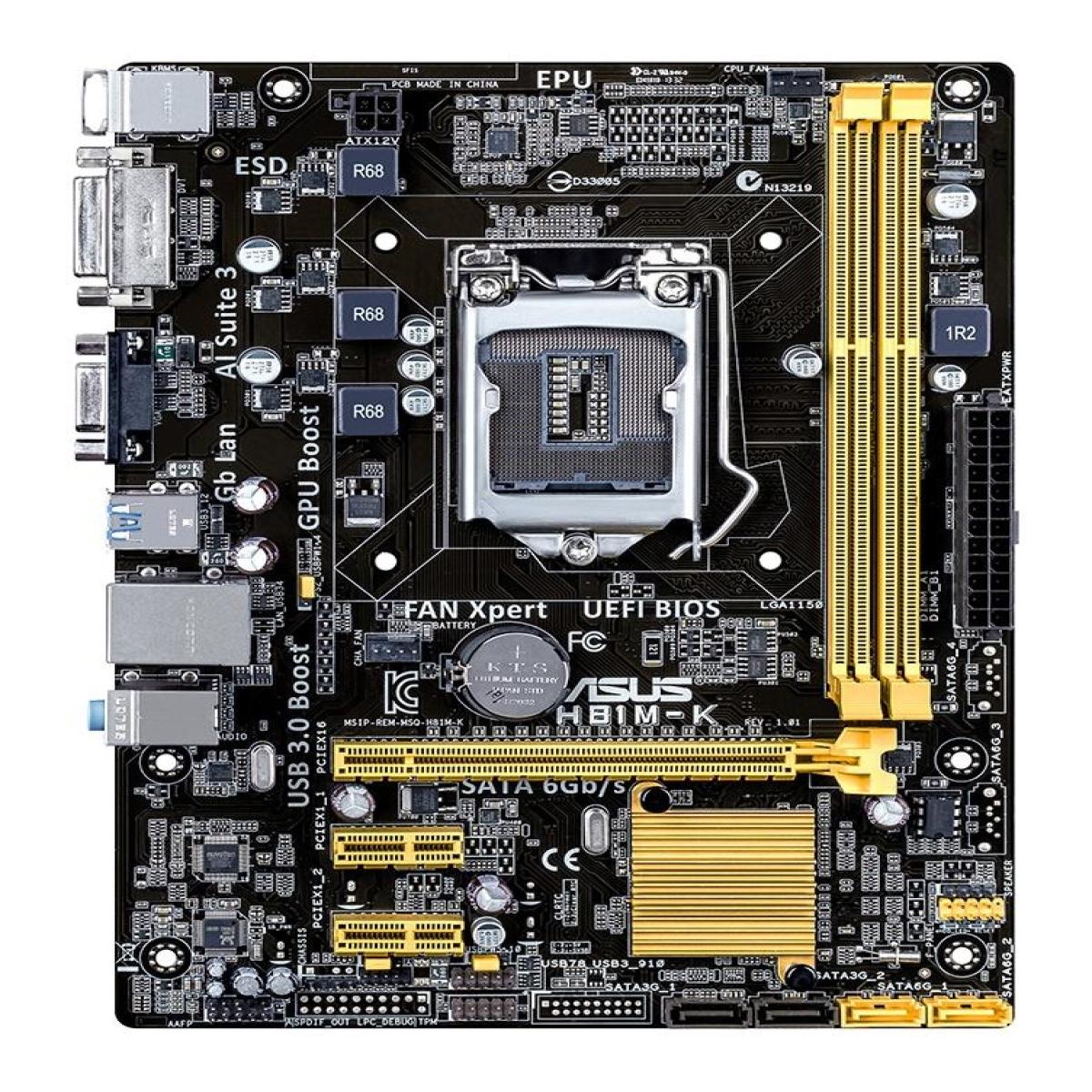

ASUS H81M-K Intel® H81 LGA 1150 (Socket H3) micro ATX
£54.29
ASUS H81M-K, Intel, LGA 1150 (Socket H3), Intel® Celeron®, Intel® Pentium®, DDR3-SDRAM, 16 GB, DIMM
out of stock
SKU: 90MB0HI0-M0EAY0
ASUS H81M-K. Processor manufacturer: Intel, Processor socket: LGA 1150 (Socket H3), Compatible processor series: Intel® Celeron®, Intel® Pentium®. Supported memory types: DDR3-SDRAM, Maximum internal memory: 16 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA. Maximum graphics card memory: 1024 MB, Maximum resolution: 1920 x 1200 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek 8111G
| Weight | 2.60kg |
|---|---|
| Brand | ASUS |
| Processor socket | LGA 1150 (Socket H3) |
| Supported memory types | DDR3-SDRAM |
| Motherboard chipset | Intel® H81 |
| Motherboard form factor | micro ATX |
| Specifications | Processor Processor manufacturer: Intel Processor socket: LGA 1150 (Socket H3) Compatible processor series: Intel® Celeron®, Intel® Pentium® Memory Supported memory types: DDR3-SDRAM Number of memory slots: 2 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: Non-ECC Supported memory clock speeds: 1066,1333,1600 MHz Maximum internal memory: 16 GB Unbuffered memory: Yes Flash memory: 64 MB Storage controllers Supported storage drive interfaces: SATA Number of storage drives supported: 4 Graphics Maximum graphics card memory: 1024 MB Parallel processing technology support: Not supported On-board graphics card: Yes Maximum resolution: 1920 x 1200 pixels Internal I/O USB 2.0 connectors: 4 Number of SATA connectors: 4 S/PDIF out connector: Yes Front panel audio connector: Yes ATX Power connector (24-pin): Yes Number of EATX power connectors: 1 CPU fan connector: Yes Number of chassis fan connectors: 1 Rear panel I/O ports USB 2.0 ports quantity: 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2 Ethernet LAN (RJ-45) ports: 1 PS/2 ports quantity: 2 VGA (D-Sub) ports quantity: 1 DVI-D ports quantity: 1 Headphone outputs: 1 Microphone in: Yes Network Ethernet LAN: Yes Ethernet interface type: Gigabit Ethernet LAN controller: Realtek 8111G Wi-Fi: No Top Wi-Fi standard: Not available Features Motherboard chipset: Intel® H81 Audio chip: Realtek ALC887 Audio output channels: 7.1 channels Component for: PC Motherboard form factor: micro ATX Motherboard chipset family: Intel Power source type: ATX Windows operating systems supported: Yes Expansion slots PCI Express x1 (Gen 2.x) slots: 2 PCI Express x16 slots: 1 BIOS BIOS type: UEFI AMI Clear CMOS jumper: Yes Processor special features Intel® Clear Video HD Technology (Intel® CVT HD): Yes Weight & dimensions Width: 226 mm Depth: 175 mm Packaging content Cables included: SATA |
