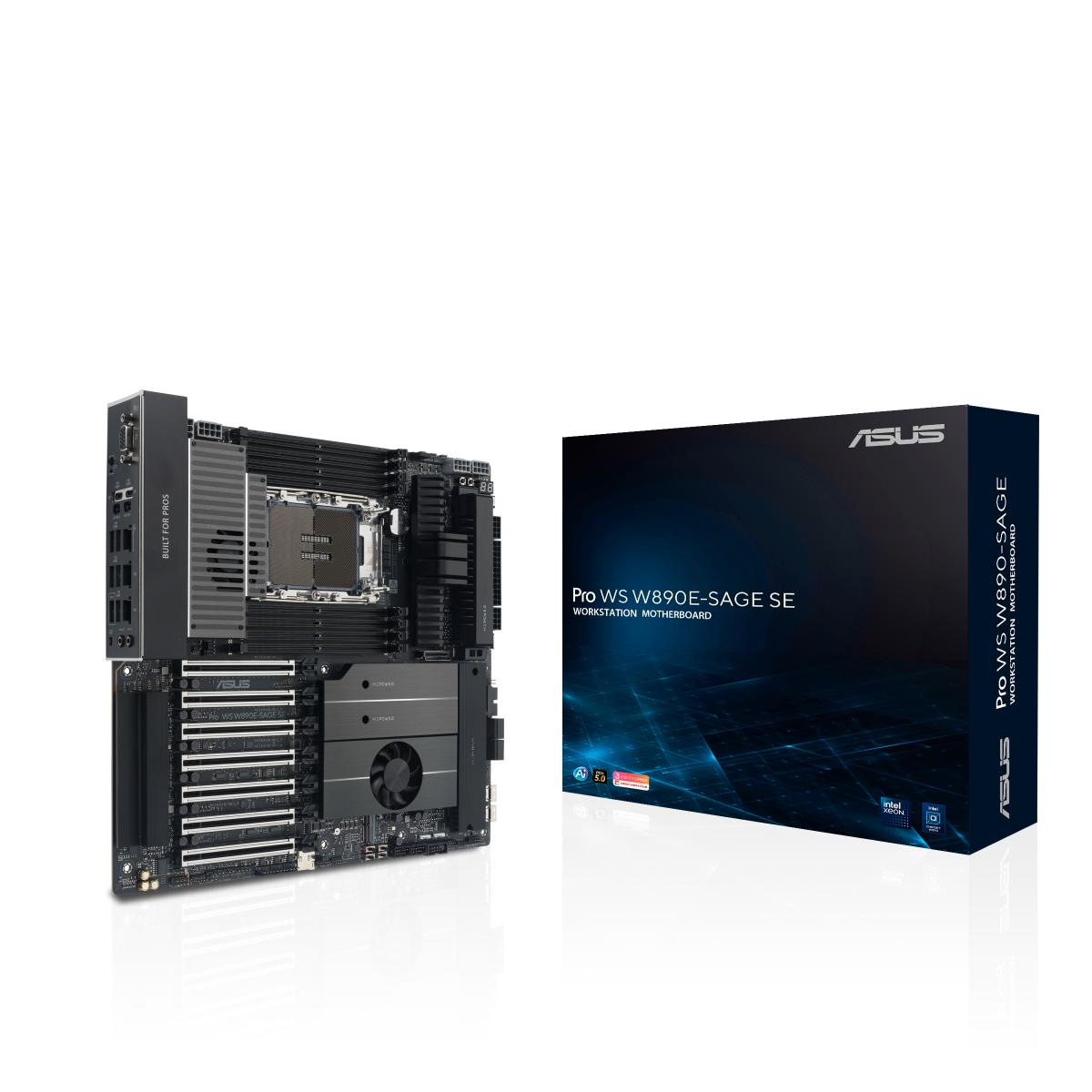

ASUS Pro WS W890E-SAGE SE Intel W890 LGA 4710-2 EEB
£1194.78
5 in stock
SKU: 90MB1LH0-M0EAY0
The Pro WS W890E-SAGE SE workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the latest Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, Pro WS W890E-SAGE SE melds no-compromise engineering with incredible aesthetics, and comes prepared for a wide array of scenarios and industries.Pro WS W890E-SAGE SE motherboard goes above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices.
E&OE
- Intel LGA 4710-2 Intel® Xeon®
- Workstation EEB Intel W890 Realtek ALC1220P 7.1 channels
- DDR5-SDRAM 8 DIMM Maximum internal memory: 4 TB
- HDD & SSD M.2, SATA III, SlimSAS RAID support Number of storage drives supported: 10
- BIOS type: UEFI AMI 512 Mbit Clear CMOS button
- 10 Gigabit Ethernet, Gigabit Ethernet
| Weight | 3.70kg |
|---|---|
| Brand | ASUS |
| Processor socket | LGA 4710-2 |
| Supported memory types | DDR5-SDRAM |
| Motherboard chipset | Intel W890 |
| Motherboard form factor | EEB |
| Specifications | Processor Processor manufacturer: Intel Processor socket: LGA 4710-2 Compatible processor series: Intel® Xeon® Supported processor sockets: LGA 4710-2 Memory Supported memory types: DDR5-SDRAM Number of memory slots: 8 Memory slots type: DIMM Memory channels: Octa-channel ECC сompatibility: ECC Maximum internal memory: 4 TB Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, SATA III, SlimSAS Number of HDDs supported: 4 Number of storage drives supported: 10 RAID support: Yes RAID levels: 0, 5, 1, 10 Graphics Parallel processing technology support: Not supported Maximum resolution: 7680 x 4320 pixels Internal I/O USB 2.0 connectors: 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1 USB 3.2 Gen 2x2 connectors: 1 Number of SATA III connectors: 4 Front panel audio connector: Yes Front panel connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes Number of CPU fan connectors: 1 Number of chassis fan connectors: 5 Chassis intrusion connector: Yes EPS power connector (8-pin): Yes Number of EPS power connectors (8-pin): 5 Number of COM connectors: 1 12V power connector: Yes Integrated SAS ports: 2 Number of water pump connectors: 1 Number of temperature sensor headers: 1 RGB LED pin header: Yes Number of RGB LED pin headers: 2 Rear panel I/O ports USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6 USB4 Gen 3x2 ports quantity: 2 Ethernet LAN (RJ-45) ports: 3 IPMI LAN (RJ-45) port: Yes VGA (D-Sub) ports quantity: 1 DisplayPort version: 1.4 Headphone outputs: 1 Line-in: Yes Network Ethernet LAN: Yes Ethernet interface type: 10 Gigabit Ethernet, Gigabit Ethernet Wi-Fi: No Top Wi-Fi standard: Not available Features Motherboard chipset: Intel W890 Audio chip: Realtek ALC1220P Audio output channels: 7.1 channels Product colour: Black Component for: Workstation Motherboard form factor: EEB Motherboard chipset family: Intel Cooling type: Passive Power source type: ATX Windows operating systems supported: Windows 11 Expansion slots PCI Express x16 (Gen 4.x) slots: 1 PCI Express x16 (Gen 5.x) slots: 7 Number of M.2 (M) slots: 4 1st M.2 largest key size: 22110 1st M.2 highest PCI Express generation: 5.0 2nd M.2 largest key size: 22110 2nd M.2 highest PCI Express generation: 5.0 3rd M.2 largest key size: 2280 3rd M.2 highest PCI Express generation: 5.0 4th M.2 largest key size: 2280 4th M.2 highest PCI Express generation: 5.0 BIOS BIOS type: UEFI AMI BIOS memory size: 512 Mbit Clear CMOS button: Yes BIOS flashback button: Yes Packaging data Package width: 362 mm Package depth: 377 mm Package height: 103 mm Package weight: 3.7 kg Weight & dimensions Width: 305 mm Depth: 330 mm Height: 50 mm Packaging content Cables included: SATA, DisplayPort Screws included: Yes Other features Mini DisplayPorts quantity: 2 Weight: 3.4 kg Number of M.2 (E) slots: 1 |
