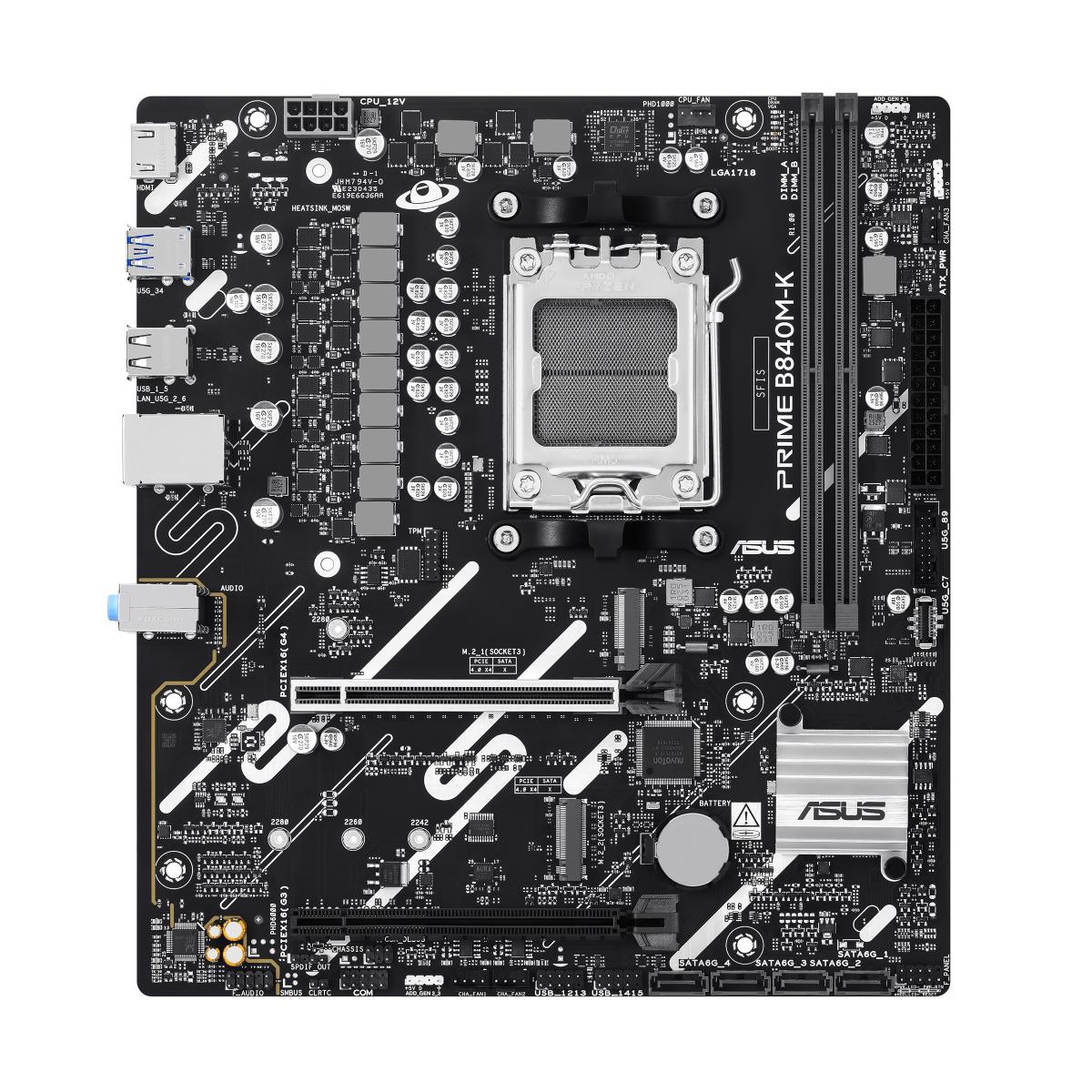

ASUS PRIME B840M-K AMD B840 Socket AM5 micro ATX
£98.88
ASUS PRIME B840M-K, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 128 GB
48 in stock
SKU: 90MB1PK0-M0EAY0
B840M-KASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B840M-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
E&OE
- AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- PC micro ATX AMD B840 7.1 channels
- DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet
| Weight | 1.02kg |
|---|---|
| Brand | ASUS |
| Processor socket | Socket AM5 |
| Supported memory types | DDR5-SDRAM |
| Motherboard chipset | AMD B840 |
| Motherboard form factor | micro ATX |
| Specifications | Processor Processor manufacturer: AMD Processor socket: Socket AM5 Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series Supported processor sockets: Socket AM5 Memory Supported memory types: DDR5-SDRAM Number of memory slots: 2 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: ECC & Non-ECC Maximum internal memory: 128 GB Unbuffered memory: Yes Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, SATA III Number of HDDs supported: 4 Number of storage drives supported: 6 RAID support: Yes RAID levels: 0, 1, 5, 10 Graphics Parallel processing technology support: Not supported Internal I/O USB 2.0 connectors: 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2 Number of SATA III connectors: 4 S/PDIF out connector: Yes Front panel audio connector: Yes Front panel connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes Number of chassis fan connectors: 3 EPS power connector (8-pin): Yes Number of COM connectors: 1 TPM connector: Yes 12V power connector: Yes RGB LED pin header: Yes Number of RGB LED pin headers: 3 Rear panel I/O ports USB 2.0 ports quantity: 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4 Ethernet LAN (RJ-45) ports: 1 HDMI ports quantity: 1 Network Ethernet LAN: Yes Ethernet interface type: 2.5 Gigabit Ethernet Wi-Fi: No Top Wi-Fi standard: Not available Features Motherboard chipset: AMD B840 Audio output channels: 7.1 channels Product colour: Black Component for: PC Motherboard form factor: micro ATX Motherboard chipset family: AMD Windows operating systems supported: Windows 10 x64, Windows 11 Expansion slots PCI Express x16 (Gen 3.x) slots: 1 PCI Express x16 (Gen 4.x) slots: 1 Number of M.2 (M) slots: 2 BIOS BIOS type: UEFI AMI BIOS memory size: 256 Mbit Packaging data Package width: 270 mm Package depth: 263 mm Package height: 51.5 mm Package weight: 1.02 kg Weight & dimensions Width: 244 mm Depth: 221 mm Packaging content Cables included: SATA Screws included: Yes |
