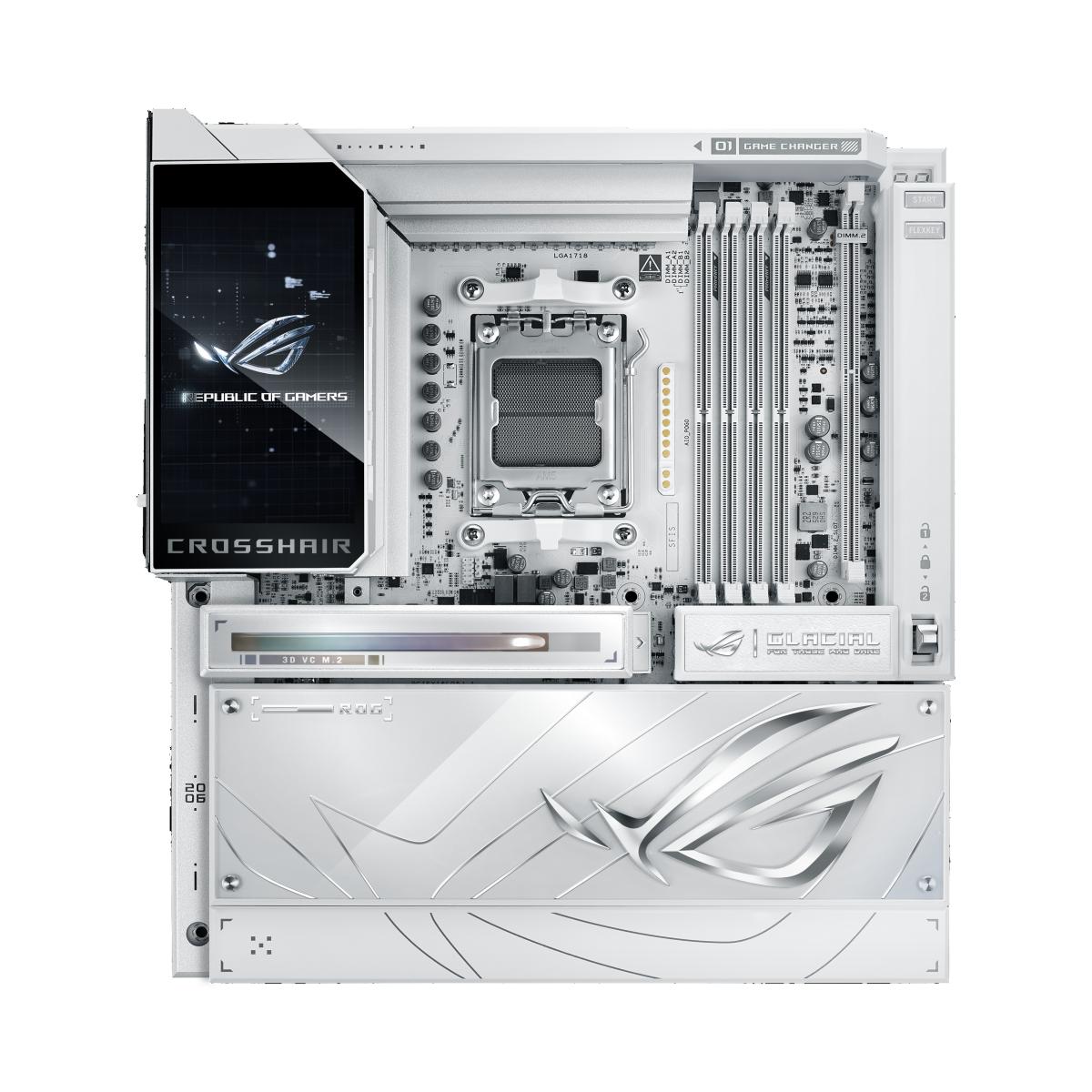

ASUS ROG CROSSHAIR X870E GLACIAL AMD X870E Socket AM5 Extended ATX
£901.05
ASUS ROG CROSSHAIR X870E GLACIAL, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB
out of stock
SKU: 90MB1NQ0-M0EAY0
The ROG X870E Glacial is a flagship motherboard engineered for uncompromising performance and sophisticated AI. It boasts a robust 24+2+2 power stage design, Dynamic OC Switcher, and Core Flex for next-generation overclocking control. Meanwhile, advanced memory tuning is unlocked through server-grade DRAM enhancement and NitroPath DRAM technology, and storage scales with support for up to seven M.2 drives. Top-tier connectivity includes two 10G Ethernet ports, two USB4® ports, and two USB 20Gbps Type-C® front-panel connectors. This motherboard also features a 3D VC M.2 heatsink and a 5-inch LCD display, along with AI Cache Boost and AI Advisor for smarter, more intuitive system tuning.
E&OE
- AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- PC Extended ATX AMD X870E Realtek ALC4082 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 11
- BIOS type: UEFI AMI 1024 Mbit
- 10 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
| Weight | 6.66kg |
|---|---|
| Brand | ASUS |
| Processor socket | Socket AM5 |
| Supported memory types | DDR5-SDRAM |
| Motherboard chipset | AMD X870E |
| Motherboard form factor | Extended ATX |
| Specifications | Processor Processor manufacturer: AMD Processor socket: Socket AM5 Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series Supported processor sockets: Socket AM5 Memory Supported memory types: DDR5-SDRAM Number of memory slots: 4 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: ECC & Non-ECC Maximum internal memory: 256 GB Unbuffered memory: Yes Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, SATA III Number of HDDs supported: 4 Number of storage drives supported: 11 RAID support: Yes RAID levels: 0, 1, 5, 10 Graphics Parallel processing technology support: Not supported On-board graphics card: No Internal I/O USB 2.0 connectors: 3 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2 USB 3.2 Gen 2x2 connectors: 2 Number of SATA III connectors: 4 Front panel audio connector: Yes Front panel connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes Number of chassis fan connectors: 2 EPS power connector (8-pin): Yes 12V power connector: Yes Number of temperature sensor headers: 1 RGB LED pin header: Yes Rear panel I/O ports USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 8 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 4 USB4 Gen 3x2 ports quantity: 2 Ethernet LAN (RJ-45) ports: 2 Microphone in: Yes S/PDIF out port: Yes WiFi-AP antenna jack: 1 Network Ethernet LAN: Yes Ethernet interface type: 10 Gigabit Ethernet Wi-Fi: Yes Top Wi-Fi standard: Wi-Fi 7 (802.11be) Wi-Fi standards: Wi-Fi 7 (802.11be) WLAN controller model: MediaTek MT7927 Bluetooth: Yes Bluetooth version: 5.4 Features Motherboard chipset: AMD X870E Audio chip: Realtek ALC4082 Audio output channels: 7.1 channels Product colour: White Component for: PC Motherboard form factor: Extended ATX Motherboard chipset family: AMD Windows operating systems supported: Windows 11 Expansion slots PCI Express x16 (Gen 4.x) slots: 2 PCI Express x16 (Gen 5.x) slots: 2 Number of M.2 (M) slots: 7 1st M.2 largest key size: 22110 1st M.2 highest PCI Express generation: 5.0 2nd M.2 largest key size: 2280 2nd M.2 highest PCI Express generation: 5.0 3rd M.2 largest key size: 2280 3rd M.2 highest PCI Express generation: 4.0 BIOS BIOS type: UEFI AMI BIOS memory size: 1024 Mbit Packaging data Package width: 380 mm Package depth: 320 mm Package height: 125 mm Package weight: 6.66 kg Weight & dimensions Width: 305 mm Depth: 277 mm Packaging content Cables included: SATA Antenna included: Yes |
