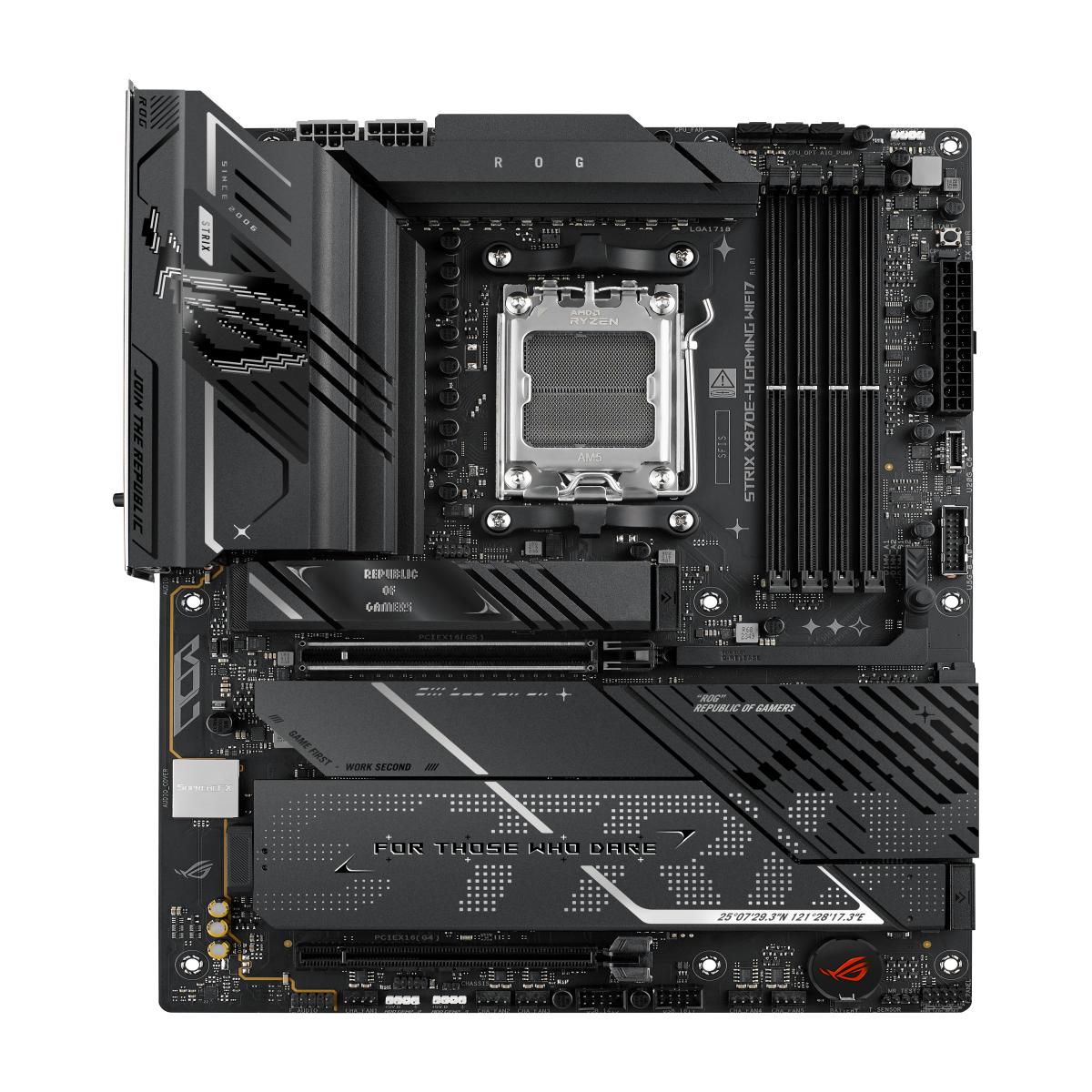

ASUS ROG STRIX X870E-H GAMING WIFI7 AMD X870E Socket AM5 ATX
£294.8
ASUS ROG STRIX X870E-H GAMING WIFI7, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB
out of stock
SKU: 90MB1M90-M0EAY0
ASUS ROG STRIX X870E-H GAMING WIFI7. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10, 5. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
| Weight | 2.07kg |
|---|---|
| Brand | ASUS |
| Processor socket | Socket AM5 |
| Supported memory types | DDR5-SDRAM |
| Motherboard chipset | AMD X870E |
| Motherboard form factor | ATX |
| Specifications | Processor Processor manufacturer: AMD Processor socket: Socket AM5 Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series Supported processor sockets: Socket AM5 Memory Supported memory types: DDR5-SDRAM Number of memory slots: 4 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: Non-ECC Maximum internal memory: 256 GB Unbuffered memory: Yes Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, SATA III Number of HDDs supported: 4 Number of storage drives supported: 8 RAID support: Yes RAID levels: 0, 1, 10, 5 Graphics Parallel processing technology support: Not supported On-board graphics card: No Internal I/O USB 2.0 connectors: 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1 USB 3.2 Gen 2x2 connectors: 1 Number of SATA III connectors: 4 Front panel audio connector: Yes Front panel connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes Number of chassis fan connectors: 5 Chassis intrusion connector: Yes EPS power connector (8-pin): Yes 12V power connector: Yes Number of temperature sensor headers: 1 RGB LED pin header: Yes Number of RGB LED pin headers: 3 Rear panel I/O ports USB 2.0 ports quantity: 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1 USB4 Gen 3x2 ports quantity: 2 Ethernet LAN (RJ-45) ports: 1 HDMI ports quantity: 1 Microphone in: Yes S/PDIF out port: Yes WiFi-AP antenna jack: 1 Network Ethernet LAN: Yes Ethernet interface type: 5 Gigabit Ethernet Wi-Fi: Yes Top Wi-Fi standard: Wi-Fi 7 (802.11be) Wi-Fi standards: Wi-Fi 7 (802.11be) Bluetooth: Yes Bluetooth version: 5.4 Features Motherboard chipset: AMD X870E Audio chip: Realtek ALC1220P Audio output channels: 7.1 channels Product colour: Black Component for: PC Motherboard form factor: ATX Motherboard chipset family: AMD Windows operating systems supported: Windows 11 Expansion slots PCI Express x16 (Gen 4.x) slots: 1 PCI Express x16 (Gen 5.x) slots: 1 Number of M.2 (M) slots: 4 1st M.2 largest key size: 2280 1st M.2 highest PCI Express generation: 5.0 2nd M.2 largest key size: 22110 2nd M.2 highest PCI Express generation: 5.0 3rd M.2 largest key size: 2280 3rd M.2 highest PCI Express generation: 4.0 4th M.2 largest key size: 2280 4th M.2 highest PCI Express generation: 4.0 BIOS BIOS type: UEFI AMI BIOS memory size: 256 Mbit Packaging data Package width: 353 mm Package depth: 273 mm Package height: 68 mm Package weight: 2.07 kg Weight & dimensions Width: 305 mm Depth: 244 mm Packaging content Cables included: SATA Antenna included: Yes |
