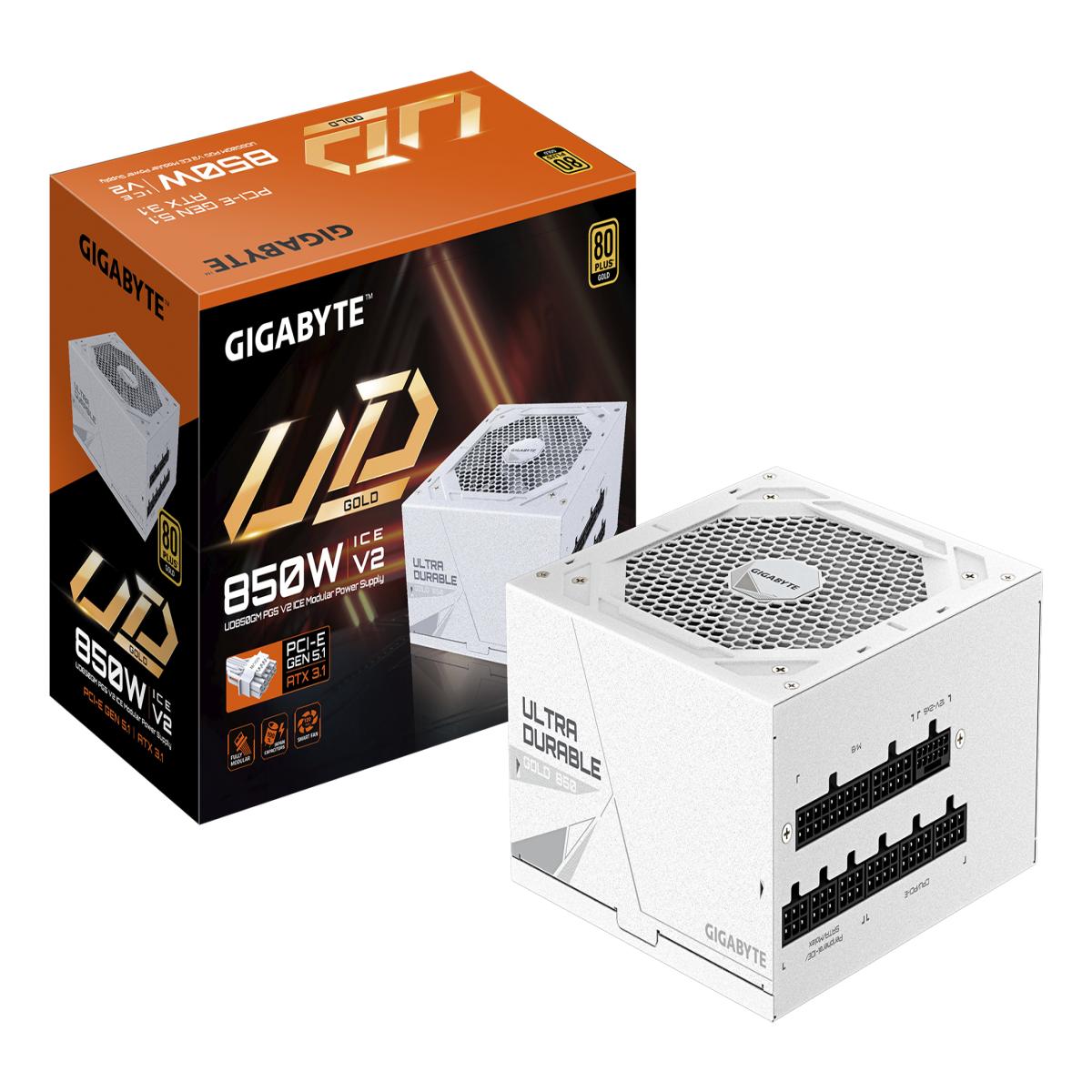

GIGABYTE UD850GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
£89.32
GIGABYTE UD850GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug, 850 W, 100 - 240 V, 50/60 Hz, 12 - 6.5 A, Active, 105 W
59 in stock
SKU: GP-UD850GM PG5 ICE
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
E&OE
- 850 W 100 - 240 V 50/60 Hz
- Motherboard power connector: 20+4 pin ATX
- PC ATX 80 PLUS Gold
- Active 12 cm
- White
| Weight | 2.56kg |
|---|---|
| Brand | GIGABYTE |
| Total power | 850 W |
| Number of SATA power connectors | 8 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Specifications | Power Total power: 850 W AC input voltage: 100 - 240 V AC input frequency: 50/60 Hz Input current: 12 - 6.5 A Power factor: 0.9 Power Factor Correction (PFC) type: Active Combined power (+3.3V): 105 W Combined power (+12V): 850 W Combined power (+5V): 105 W Combined power (-12V): 3.6 W Combined power (+5Vsb): 15 W Max output current (+3.3V): 20 A Max output current (+12V): 70.8 A Max output current (+5V): 20 A Max output current (-12V): 0.3 A Max output current (+5Vsb): 3 A Hold time: 16 ms Efficiency: 90% Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage Ports & interfaces Motherboard power connector: 20+4 pin ATX Motherboard power cable length: 61 cm Number of SATA power connectors: 8 SATA power cable length: 150,600 mm Peripheral (Molex) power connectors (4-pin): 3 Peripheral (Molex) power cable length: 150,500 mm PCI Express power connectors (6+2 pin): 4 PCI Express power connectors (12+4 pin): 1 PCI Express power connectors (12+4 pin) cable length: 700 mm PCI Express power cable length: 60 cm CPU power connector (4+4 pin): Yes CPU power cable length: 65 cm Floppy drive power connector: 1 PCI Express connector: Yes Number of EPS connectors: 2 Cabling type: Fully-Modular Performance 80 PLUS certification: 80 PLUS Gold Purpose: PC Power supply unit (PSU) form factor: ATX ATX version: 3.1 Bearing technology: HYB Mean time between failures (MTBF): 100000 h Design Product colour: White Cooling type: Active Fan diameter: 12 cm Number of fans: 1 fan(s) On/off switch: Yes Weight & dimensions Width: 150 mm Depth: 140 mm Height: 86 mm Weight: 2.4 kg Packaging data Package width: 618 mm Package depth: 269 mm Package height: 211 mm Package weight: 2.56 kg Package type: Box Logistics data Warranty period: 10 year(s) |
