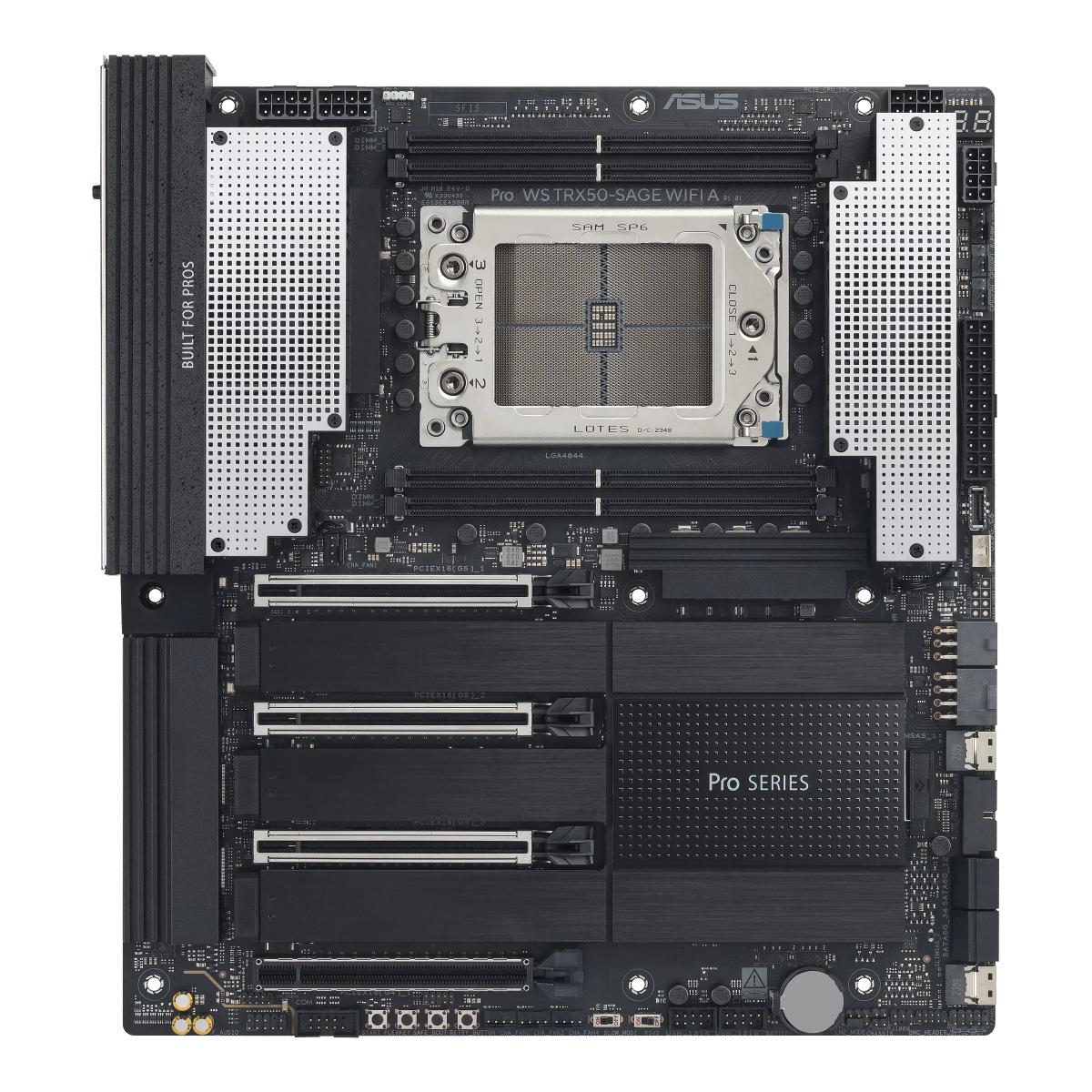

ASUS PRO WS TRX50-SAGE WIFI A AMD TRX50 Socket sTR5 CEB
£733.12
ASUS PRO WS TRX50-SAGE WIFI A, AMD, Socket sTR5, AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 7000 WX-Series, Socket sTR5, DDR5-SDRAM, 1 TB
12 in stock
SKU: 90MB1LE0-M0EAY0
A WORKSTATION WONDERLANDThe Pro WS TRX50-SAGE WIFI A motherboard offers elite speed, compatibility and stability tailored to content creation, software development, machine learning and AI era applications. Twenty power stages fuel AMD Ryzen™ Threadripper™ processors with up to 96 cores, while supporting up to 1 TB of R-DIMM DDR5 modules, delivering the performance potential that professionals need for cutting-edge applications.With onboard PCIe® power connectors offering additional support for multiple graphics cards, active cooling on the VRM heatsinks, WiFi 7, USB4® (40 Gbps), SlimSAS and IMPI support, the Pro WS TRX50-SAGE WIFI A comes prepared for a wide array of scenarios and industries.
E&OE
- AMD Socket sTR5 AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 7000 WX-Series
- Workstation CEB AMD TRX50 Realtek ALC1220P 5.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 1 TB
- HDD & SSD M.2, SATA III, SlimSAS RAID support Number of storage drives supported: 10
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet, 10 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
| Weight | 4.85kg |
|---|---|
| Brand | ASUS |
| Processor socket | Socket sTR5 |
| Supported memory types | DDR5-SDRAM |
| Motherboard chipset | AMD TRX50 |
| Motherboard form factor | CEB |
| Specifications | Processor Processor manufacturer: AMD Processor socket: Socket sTR5 Compatible processor series: AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 7000 WX-Series Supported processor sockets: Socket sTR5 Memory Supported memory types: DDR5-SDRAM Number of memory slots: 4 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: ECC Maximum internal memory: 1 TB Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, SATA III, SlimSAS Number of HDDs supported: 4 Number of storage drives supported: 10 RAID support: Yes RAID levels: 0, 1, 5, 10 Graphics Parallel processing technology support: Not supported On-board graphics card: No Internal I/O USB 2.0 connectors: 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1 USB 3.2 Gen 2x2 connectors: 1 Number of SATA III connectors: 4 Front panel audio connector: Yes Front panel connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes Number of chassis fan connectors: 4 Chassis intrusion connector: Yes EPS power connector (8-pin): Yes Number of COM connectors: 1 TPM connector: Yes 12V power connector: Yes Number of temperature sensor headers: 1 RGB LED pin header: Yes Rear panel I/O ports USB 2.0 ports quantity: 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6 USB4 Gen 3x2 ports quantity: 2 Ethernet LAN (RJ-45) ports: 2 DisplayPorts quantity: 2 WiFi-AP antenna jack: 1 Network Ethernet LAN: Yes Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet LAN controller: Intel I226-LM Wi-Fi: Yes Top Wi-Fi standard: Wi-Fi 7 (802.11be) Wi-Fi standards: Wi-Fi 7 (802.11be) Bluetooth: Yes Bluetooth version: 5.4 Features Motherboard chipset: AMD TRX50 Audio chip: Realtek ALC1220P Audio output channels: 5.1 channels Product colour: Aluminium, Black Component for: Workstation Motherboard form factor: CEB Motherboard chipset family: AMD Windows operating systems supported: Windows 11 Expansion slots PCI Express x16 (Gen 4.x) slots: 1 PCI Express x16 (Gen 5.x) slots: 3 Number of M.2 (M) slots: 4 1st M.2 largest key size: 2280 1st M.2 highest PCI Express generation: 5.0 2nd M.2 largest key size: 2580 2nd M.2 highest PCI Express generation: 5.0 3rd M.2 largest key size: 2280 3rd M.2 highest PCI Express generation: 4.0 4th M.2 largest key size: 2280 4th M.2 highest PCI Express generation: 5.0 BIOS BIOS type: UEFI AMI BIOS memory size: 256 Mbit Packaging data Package width: 320 mm Package depth: 380 mm Package height: 100 mm Package weight: 4.85 kg Weight & dimensions Width: 305 mm Depth: 280 mm Packaging content Cables included: DisplayPort, SATA Antenna included: Yes |
