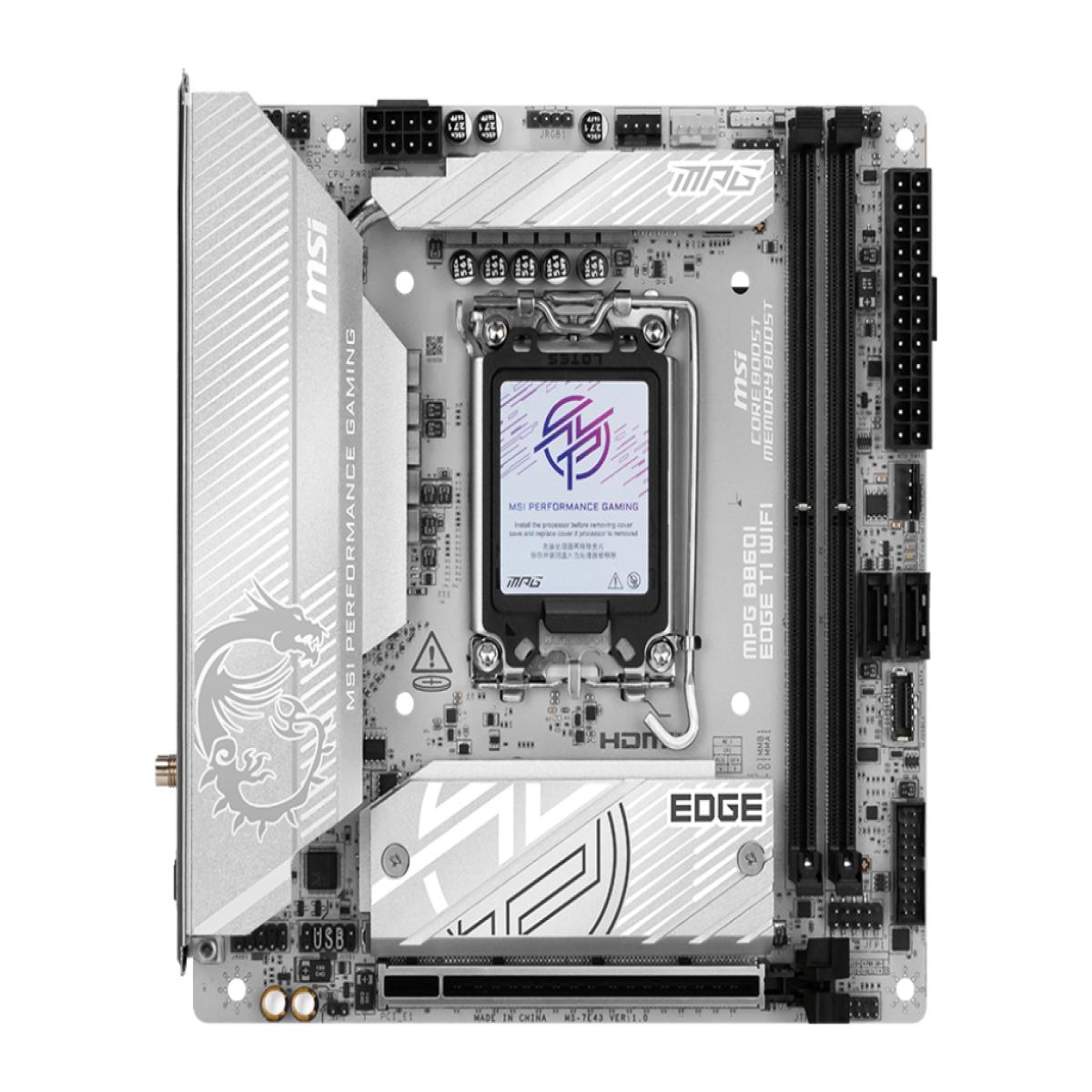

MSI MPG B860I EDGE TI WIFI motherboard Intel B860 LGA 1851 (Socket V1) mini ITX
£200.67
MSI MPG B860I EDGE TI WIFI, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), DDR5-SDRAM, 128 GB, DIMM
out of stock
SKU: MPG B860I EDGE TI WIFI
MSI MPG B860I EDGE TI WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7.... Component for: PC, Motherboard form factor: mini ITX, Motherboard chipset family: Intel
| Weight | 4.20kg |
|---|---|
| Brand | MSI |
| Processor socket | LGA 1851 (Socket V1) |
| Supported memory types | DDR5-SDRAM |
| Motherboard chipset | Intel B860 |
| Motherboard form factor | mini ITX |
| Specifications | Processor Processor manufacturer: Intel Processor socket: LGA 1851 (Socket V1) Compatible processor series: Intel Core Ultra (Series 2) Memory Supported memory types: DDR5-SDRAM Number of memory slots: 2 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: Non-ECC Maximum internal memory: 128 GB Unbuffered memory: Yes Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, SATA Number of storage drives supported: 4 RAID support: Yes RAID levels: 0, 1 Graphics On-board graphics card: No Internal I/O USB 2.0 connectors: 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2 USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1 Number of SATA III connectors: 2 S/PDIF out connector: Yes Audio connector: Yes Front panel connector: Yes Power fan connector: Yes CPU fan connector: Yes Number of CPU fan connectors: 1 Chassis intrusion connector: Yes TPM connector: Yes RGB LED pin header: Yes Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 7 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1 Ethernet LAN (RJ-45) ports: 1 HDMI ports quantity: 1 HDMI version: 2.1 Microphone in: Yes Thunderbolt ports quantity: 1 Network Ethernet LAN: Yes Ethernet interface type: 5 Gigabit Ethernet Wi-Fi: Yes Top Wi-Fi standard: Wi-Fi 7 (802.11be) Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) WLAN controller model: Killer Wi-Fi BE1750x Bluetooth: Yes Bluetooth version: 5.4 Features Motherboard chipset: Intel B860 Audio output channels: 7.1 channels Product colour: White Component for: PC Motherboard form factor: mini ITX Motherboard chipset family: Intel Power source type: ATX Expansion slots PCI Express x16 (Gen 4.x) slots: 1 PCI Express x16 (Gen 5.x) slots: 1 Number of M.2 (M) slots: 2 1st M.2 highest PCI Express generation: 5.0 2nd M.2 highest PCI Express generation: 4.0 BIOS Clear CMOS button: Yes Weight & dimensions Width: 170 mm Depth: 170 mm Packaging content Cables included: SATA Antenna included: Yes Screws included: Yes |
