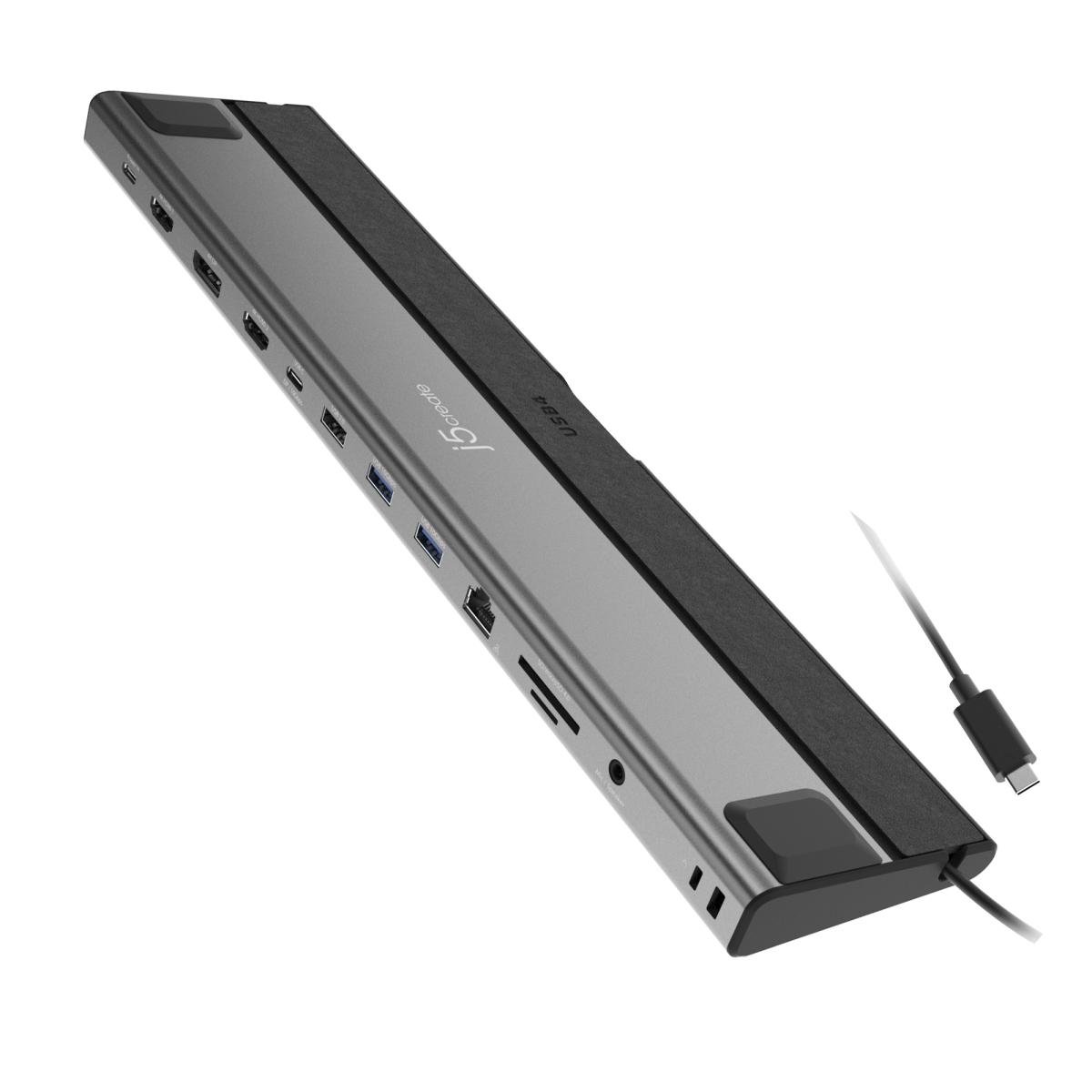

j5create JCD554 USB4® Triple 4K Display Docking Station, Black
£143.45
j5create JCD554 USB4® Triple 4K Display Docking Station, Black, Wired, USB4, 85 W, 10,100,1000 Mbit/s, Black, Grey, MicroSD (TransFlash), SD
1 in stock
SKU: JCD554-N
j5create JCD554 USB4® Triple 4K Display Docking Station, Black. Connectivity technology: Wired, Host interface: USB4, USB Power Delivery up to: 85 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Grey, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 10 Gbit/s. Power source type: USB, Input current: 3 A, Output voltage: 20 V. Width: 344 mm, Depth: 23.6 mm, Height: 81.4 mm
| Weight | 0.57kg |
|---|---|
| Brand | j5create |
| Specifications | Ports & interfaces Connectivity technology: Wired Host interface: USB4 USB 2.0 ports quantity: 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1 USB Power Delivery (USB PD): Yes USB Power Delivery revision: 3.0 USB Power Delivery up to: 85 W HDMI ports quantity: 2 DisplayPorts quantity: 1 Microphone in: Yes Combo headphone/mic port: Yes Headphone outputs: 1 USB Type-C DisplayPort Alternate Mode: Yes Network Ethernet LAN: Yes Ethernet LAN (RJ-45) ports: 1 Ethernet LAN data rates: 10,100,1000 Mbit/s Performance Card reader integrated: Yes Compatible memory cards: MicroSD (TransFlash), SD Data transfer rate: 10 Gbit/s HD type: 4K Ultra HD Maximum digital resolution: 3840 x 2160 pixels Number of displays supported: 3 Maximum refresh rate: 144 Hz Cable lock slot: Yes Cable lock slot type: Kensington Product colour: Black, Grey Display modes: Extended, Mirror Hub interfaces: USB 3.2 Gen 2 (3.1 Gen 2) Type-A Plug and Play: Yes Housing material: Aluminium Country of origin: Taiwan Power Power source type: USB Input current: 3 A Output voltage: 20 V Output current: 4.25 A Power consumption (typical): 4.5 W Power plug type: Type C Software Windows operating systems supported: Yes Mac operating systems supported: Yes Operational conditions Operating temperature (T-T): -1 - 41 °C Storage temperature (T-T): -17 - 68 °C Operating relative humidity (H-H): 0 - 85% Storage relative humidity (H-H): 0 - 85% Sustainability Sustainability compliance: Yes Weight & dimensions Width: 344 mm Depth: 23.6 mm Height: 81.4 mm Weight: 463 g Packaging data Quantity per pack: 1 pc(s) Package width: 88.3 mm Package depth: 358 mm Package height: 28 mm Package weight: 574 g Packaging content Quick start guide: Yes Packaging content: 1 - JCD554 USB4® Triple 4K Display Docking Station 1 - Quick Installation Guide (QIG)" Technical details Master (outer) case GTIN (EAN/UPC): 24712795088186 Warranty period: 2 year(s) Compliance certificates: CE, REACH, RoHS Logistics data Products per master (outer) case: 4 pc(s) Master (outer) case width: 150 mm Master (outer) case length: 398 mm Master (outer) case height: 123 mm Products per shipping (inner) case: 2 pc(s) Export Control Classification Number (ECCN): EAR99 Master (outer) case net weight: 2.8 kg Shipping (inner) case width: 6.6 cm Shipping (inner) case length: 38 cm Shipping (inner) case height: 9.9 cm Shipping (inner) case net weight: 1.2 kg Other features Cable length: 0.5 m |
