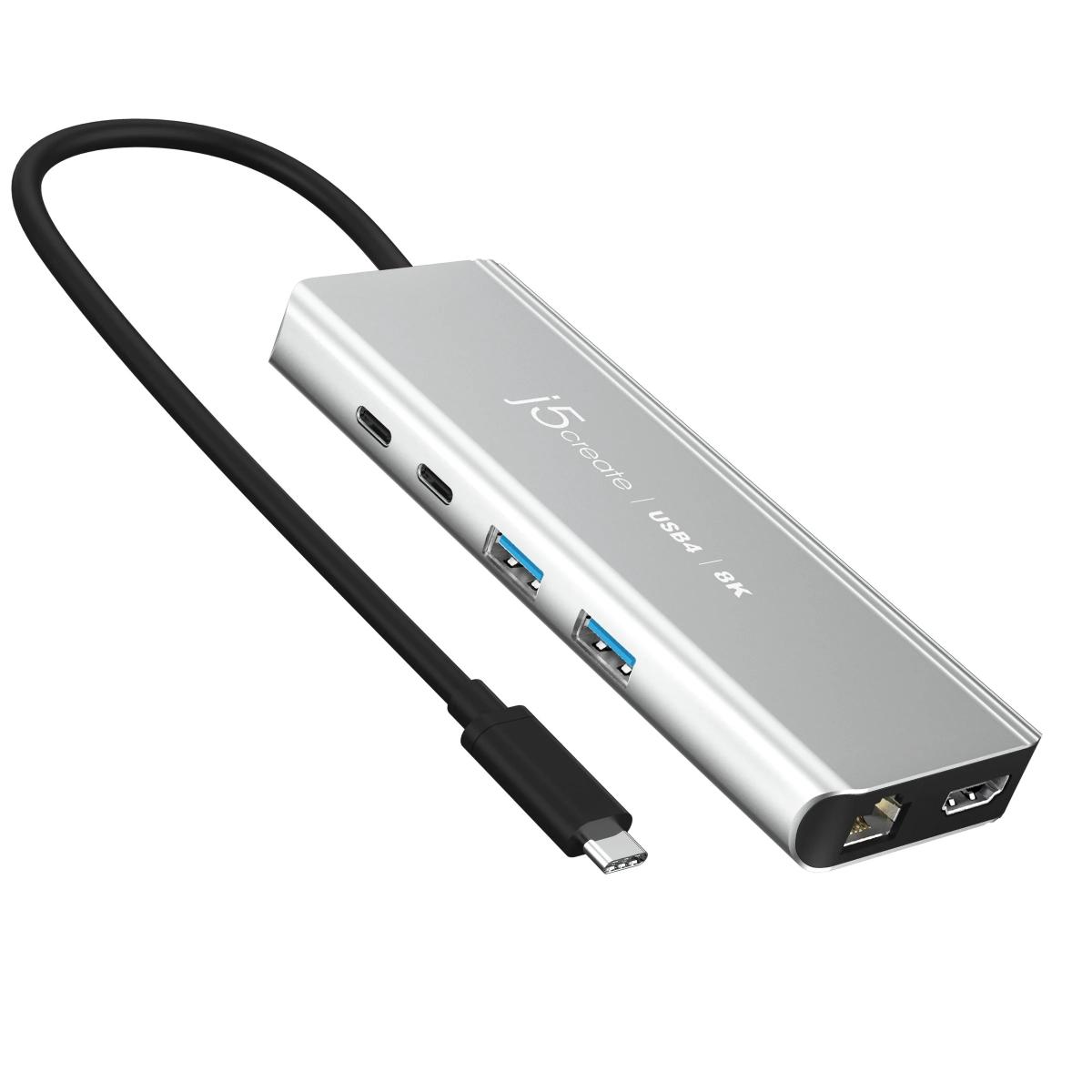

j5create JCD403 USB4® 8K Multi-Port Hub
£74.91
j5create JCD403 USB4® 8K Multi-Port Hub, USB Type-C, HDMI, RJ-45, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 10000 Mbit/s, 3840 x 2160, 7680 x 4320, 7680 x 4320 pixels, Grey
5 in stock
SKU: JCD403-N
j5create JCD403 USB4® 8K Multi-Port Hub. Host interface: USB Type-C, Hub interfaces: HDMI, RJ-45, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Data transfer rate: 10000 Mbit/s, Supported graphics resolutions: 3840 x 2160, 7680 x 4320, Maximum resolution (HDMI): 7680 x 4320 pixels. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Power supply type: USB/AC, Power supply: 100 W, Input voltage: 20 V. Width: 51 mm, Depth: 15 mm, Height: 135 mm
| Weight | 0.12kg |
|---|---|
| Brand | j5create |
| Specifications | Ports & interfaces Host interface: USB Type-C Hub interfaces: HDMI, RJ-45, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1 HDMI ports quantity: 1 I/O ports: 1- USB-C 3.2 Gen2 10Gbps data transmission 1- USB-C power delivery 3.0 100W 2- USB Type-A 3.2 Gen2 10Gbps data transmission 1- 8K HDMI 1- RJ45 2.5 Gigabit Ethernet Ports quantity: 6 Ethernet LAN (RJ-45) ports: 1 USB Type-C DisplayPort Alternate Mode: Yes Features Data transfer rate: 10000 Mbit/s Supported graphics resolutions: 3840 x 2160, 7680 x 4320 Maximum resolution (HDMI): 7680 x 4320 pixels Product colour: Grey Housing material: Aluminium USB Power Delivery revision: 3.0 USB Power Delivery up to: 100 W HD type: 8K Ultra HD Number of displays supported: 1 Cable type: Round cable Plug and Play: Yes Country of origin: Taiwan Compatible products: Available Thunderbolt 4, Thunderbolt 3, USB4, and USB-C host laptops. GPU and video source: DisplayPort 1.4 alt mode with DSC supports 8K 60 Hz or 4K 144Hz. DisplayPort 1.4 alt mode without DSC supports 8K 30 Hz or 4K 120 Hz. * DSC = VESA Display Stream Compression (DSC) Standard. Only available on NVIDIA GeForce RTX 20 Series and AMD Radeon RX 6000 Series GPUs or above. * Recommended Graphics Cards: Intel HD Graphics 620, Intel' HD Graphics 520 or above. * Notes: Macs supports up to 4K 60Hz on an 8K HDMI display. Network Ethernet interface type: Gigabit Ethernet Ethernet LAN data rates: 10,100,1000,2500 Mbit/s Power Power supply type: USB/AC Power supply: 100 W Input voltage: 20 V Input current: 5 A Output voltage: 20 V Output current: 4.75 A Power plug type: Type C System requirements Windows operating systems supported: Yes Mac operating systems supported: Yes Weight & dimensions Width: 51 mm Depth: 15 mm Height: 135 mm Weight: 109 g Packaging content AC adapter included: No Quick start guide: Yes Packaging content: 1 - JCD403 USB4 8K Multi-Port Hub 1 - Quick Installation Guide (QIG) Operational conditions Operating temperature (T-T): -1 - 41 °C Operating temperature (T-T): 30 - 116 °F Storage temperature (T-T): -17 - 68 °C Operating relative humidity (H-H): 0 - 85% Storage relative humidity (H-H): 0 - 85% Technical details Warranty period: 2 year(s) |
