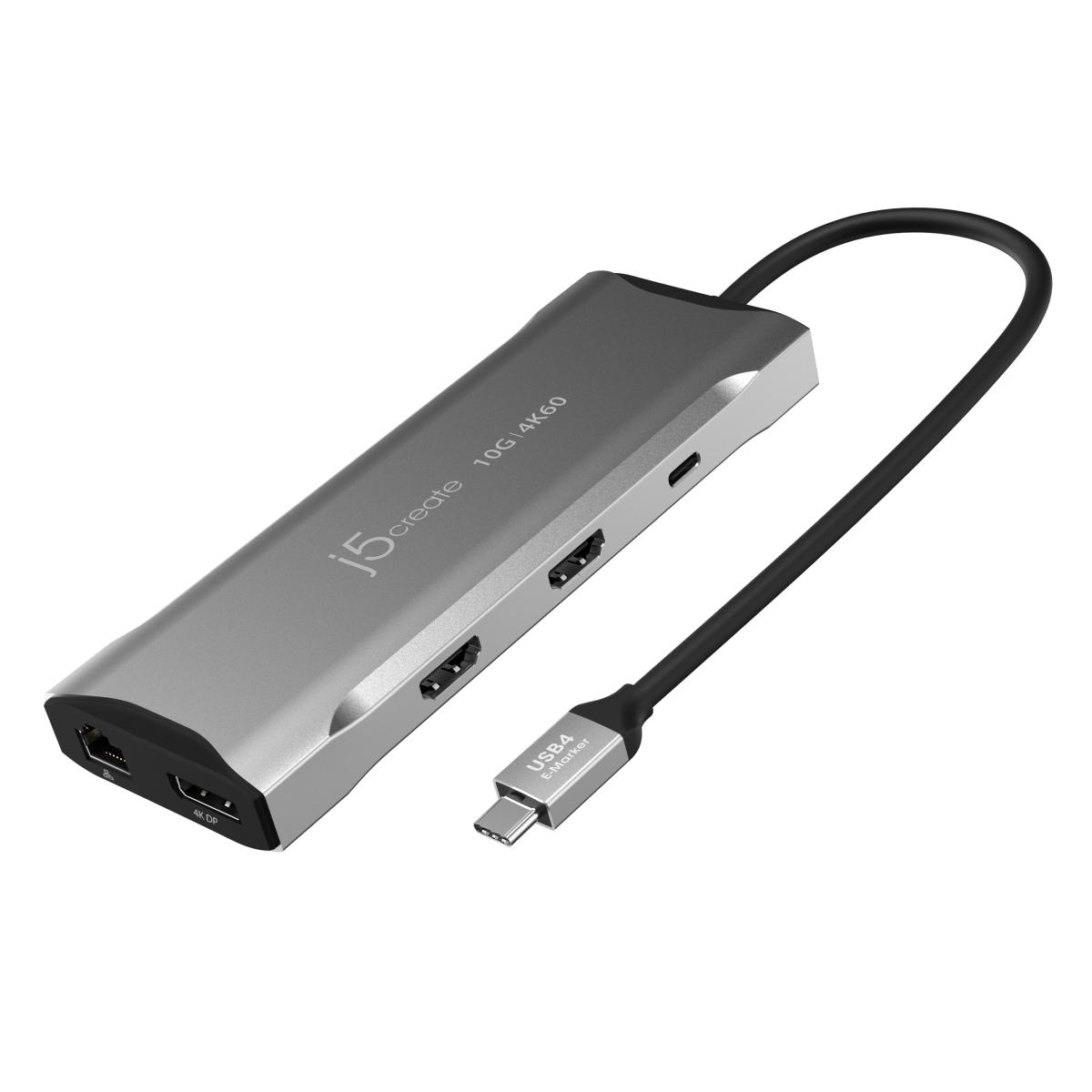

j5create JCD397-N 4K60 Elite USB-C® Multi-Monitor Mini Dock
£78.24
j5create JCD397-N 4K60 Elite USB-C® Multi-Monitor Mini Dock, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 100 W, 1.4a, 10,100,1000 Mbit/s, Grey
4 in stock
SKU: JCD397-N
j5create JCD397-N 4K60 Elite USB-C® Multi-Monitor Mini Dock. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Colour name: Space Grey, Compatible memory cards: MicroSD (TransFlash), SD. Power source type: USB, Power connector: USB Type-C, Output voltage: 5 V. Width: 55 mm, Depth: 17 mm, Height: 148 mm
| Weight | 0.15kg |
|---|---|
| Brand | j5create |
| Specifications | Ports & interfaces Connectivity technology: Wired Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2 USB Power Delivery (USB PD): Yes USB Power Delivery revision: 3.0 USB Power Delivery up to: 100 W HDMI ports quantity: 2 HDMI version: 2.0 DisplayPorts quantity: 1 DisplayPort version: 1.4a Microphone in: No USB Type-C DisplayPort Alternate Mode: Yes Network Ethernet LAN: Yes Ethernet LAN (RJ-45) ports: 1 Ethernet LAN data rates: 10,100,1000 Mbit/s Performance Colour name: Space Grey Card reader integrated: Yes Compatible memory cards: MicroSD (TransFlash), SD Data transfer rate: 10 Gbit/s HD type: 4K Ultra HD Maximum digital resolution: 3840 x 2160 pixels Number of displays supported: 3 Maximum refresh rate: 240 Hz Product colour: Grey Display modes: Extended, Mirror, Primary display Plug and Play: Yes Charging function: Yes Housing material: Aluminium Country of origin: Taiwan Compatibility: Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0. The host device must support Multi-Stream Transport (MST) and DisplayPort™ 1.4 to achieve triple-monitor configuration. Power Power source type: USB Power connector: USB Type-C Output voltage: 5 V Output current: 0.79 A Power consumption (typical): 4.16 W USB cable length: 0.2 m Software Windows operating systems supported: Yes Mac operating systems supported: Yes Operational conditions Operating temperature (T-T): 0 - 40 °C Storage temperature (T-T): -17 - 68 °C Operating relative humidity (H-H): 0 - 85% Storage relative humidity (H-H): 0 - 85% Weight & dimensions Width: 55 mm Depth: 17 mm Height: 148 mm Weight: 121.4 g Packaging data Quantity per pack: 1 pc(s) Package width: 193 mm Package depth: 125 mm Package height: 22.5 mm Package weight: 151 g Packaging content Cables included: USB Type-C Quick start guide: Yes Manual: Yes Technical details Master (outer) case GTIN (EAN/UPC): 24712795086328 Warranty period: 2 year(s) Logistics data Products per master (outer) case: 18 pc(s) Master (outer) case width: 226 mm Master (outer) case length: 445 mm Master (outer) case height: 190 mm Master (outer) case gross weight: 3.8 kg Products per shipping (inner) case: 6 pc(s) Export Control Classification Number (ECCN): EAR99 Shipping (inner) case width: 16.5 cm Shipping (inner) case length: 21.2 cm Shipping (inner) case height: 13.7 cm Shipping (inner) case net weight: 1.06 kg Other features Special features: Built-in advanced USB-C® E-Mark integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility, Features a Dual 4K HDMI™ output, DP display output. |
