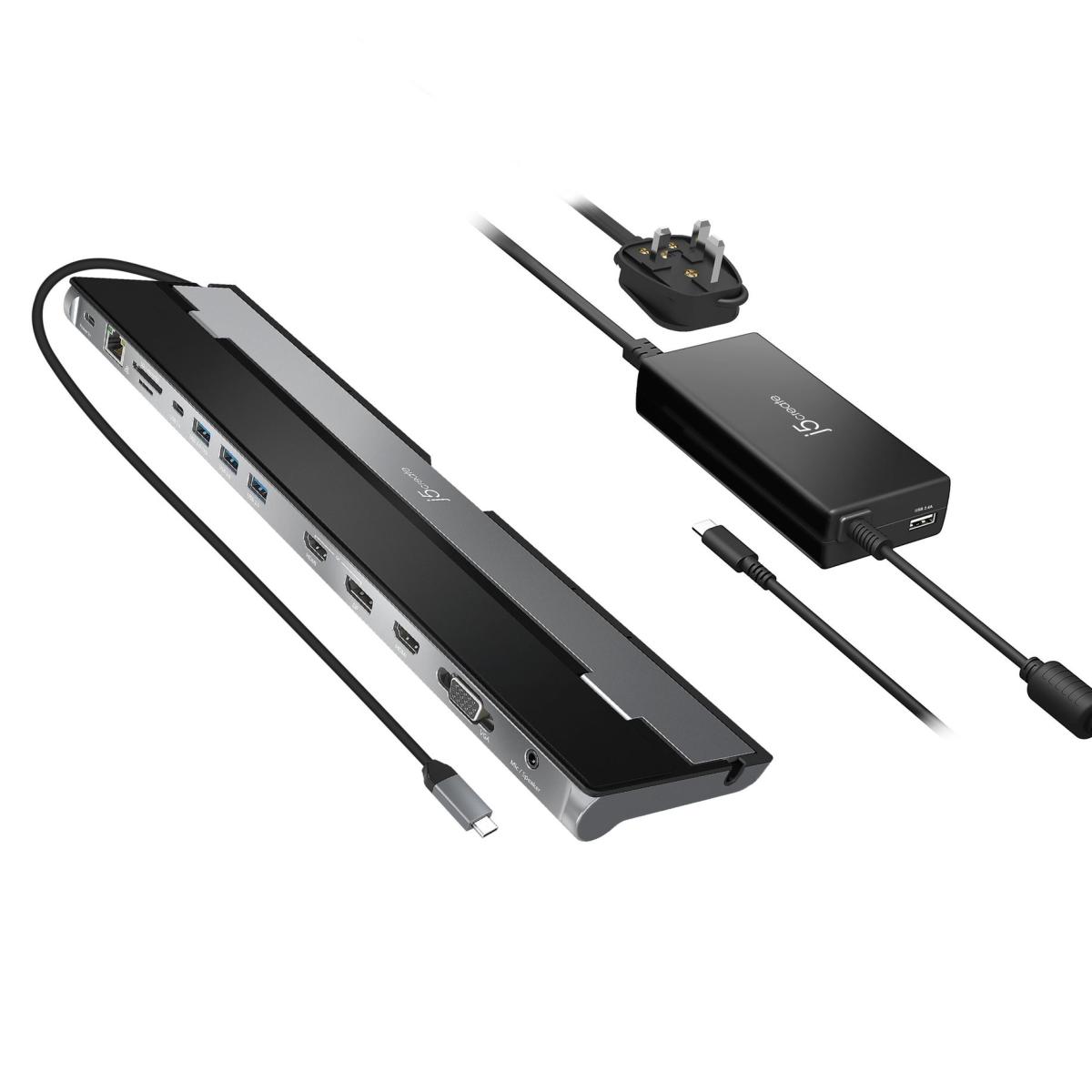

j5create JCD543P USB-C™ Triple Display Docking Station with 100W PD Adapter

£109.52

j5create JCD543P USB-C™ Triple Display Docking Station with 100W PD Adapter, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 100 W, 3.5 mm, 10,100,1000 Mbit/s, Black, Silver

out of stock

SKU: JCD543P-FN

This triple display docking station turns your Mac® or Windows® laptop into a full workstation with a DisplayPort™ output, two HDMI™ outputs, and a VGA output, with resolution support up to 4K (3840 x 2160) on two displays and 1080p on the other one. You can also use your laptop screen for four displays in total, making it easy to access multiple applications at once. With 100W Power Delivery, three USB™ 3.0 ports, and a USB-C™ port, the docking station is perfect for your MacBook®, Dell® XPS™, or other USB-C™ laptop requiring additional ports.This USB™ 3.0 docking station is also equipped with an RJ45 Gigabit Ethernet port, memory card reader/writer, and combo audio jack for maximum productivity. The elevated design assists with heat dissipation and, with its double-sided cable storage compartment, ensures an easy connection regardless of your USB-C™ port’s location.All 13 ports are combined into one slim docking station, so you’ll have all the connections you need to stay productive!

E&OE

Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB Power Delivery (USB PD)
Ethernet LAN 10,100,1000 Mbit/s
MicroSD (TransFlash), SD

Weight	0.92kg
Brand	j5create
Specifications	Ports & interfaces Connectivity technology: Wired Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2 USB Power Delivery (USB PD): Yes USB Power Delivery revision: 3.0 USB Power Delivery up to: 100 W HDMI ports quantity: 2 VGA (D-Sub) ports quantity: 1 DisplayPorts quantity: 1 Microphone in: No Combo headphone/mic port: Yes Headphone outputs: 1 Headphone connectivity: 3.5 mm USB Type-C DisplayPort Alternate Mode: Yes Network Ethernet LAN: Yes Ethernet LAN (RJ-45) ports: 1 Ethernet LAN data rates: 10,100,1000 Mbit/s Performance Colour name: Silver and Black Card reader integrated: Yes Compatible memory cards: MicroSD (TransFlash), SD Data transfer rate: 5 Gbit/s HD type: 4K Ultra HD Maximum digital resolution: 3840 x 1080 pixels Maximum analog resolution: 1920 x 1080 pixels Number of displays supported: 3 Product colour: Black, Silver Display modes: Extended, Mirror Housing material: Aluminium Country of origin: Taiwan Compatibility: Macbook™ Pro 2016 & Newer Surface Pro™ 7 Surface Go™ Surfacebook™ 2 Available USB-C™ port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0 Power Power source type: DC, USB Power connector: USB Type-C AC input voltage: 110 - 220 V Input current: 0.8 A Power supply: 100 W Output voltage: 20 V Output current: 4.75 A Power consumption (typical): 4.5 W USB cable length: 0.45 m Software Windows operating systems supported: Yes Mac operating systems supported: Yes Operational conditions Operating temperature (T-T): 0 - 48 °C Storage temperature (T-T): -10 - 65 °C Operating relative humidity (H-H): 0 - 85% Storage relative humidity (H-H): 0 - 85% Weight & dimensions Width: 82.5 mm Depth: 350 mm Height: 23.4 mm Weight: 300 g Packaging data Quantity per pack: 1 pc(s) Package width: 89.3 mm Package depth: 358 mm Package height: 63.5 mm Package weight: 920.5 g Packaging content Cables included: USB Type-C AC adapter included: Yes Quick start guide: Yes Packaging content: 1 - JCD543P USB-C™ Triple Display Docking Station 1 - JUP2290 100W USB-C™ Super Charger 1 - Quick Installation Guide Technical details Warranty period: 2 year(s) Logistics data Products per master (outer) case: 2 pc(s) Master (outer) case width: 150 mm Master (outer) case length: 398 mm Master (outer) case height: 123 mm Master (outer) case gross weight: 2.1 kg Export Control Classification Number (ECCN): EAR99 Other features I/O ports: 2 - USB™ 3.0 Type-A 1 - USB™ 3.0 Type-A fast charge 1 - USB-C™ 3.1 Gen 1 1 - USB-C™ Power Delivery 3.0 2 - 4K HDMI™ 1 - DisplayPort™ 1 - VGA 1 - SD™ & microSD™ memory card reader/writer 1 - RJ45 Gigabit Ethernet 1 - 3.5 mm combo audio jack Special features: Simultaneous DisplayPort™, HDMI™ and VGA Output, 13 ports in one sleek design for all your needs
