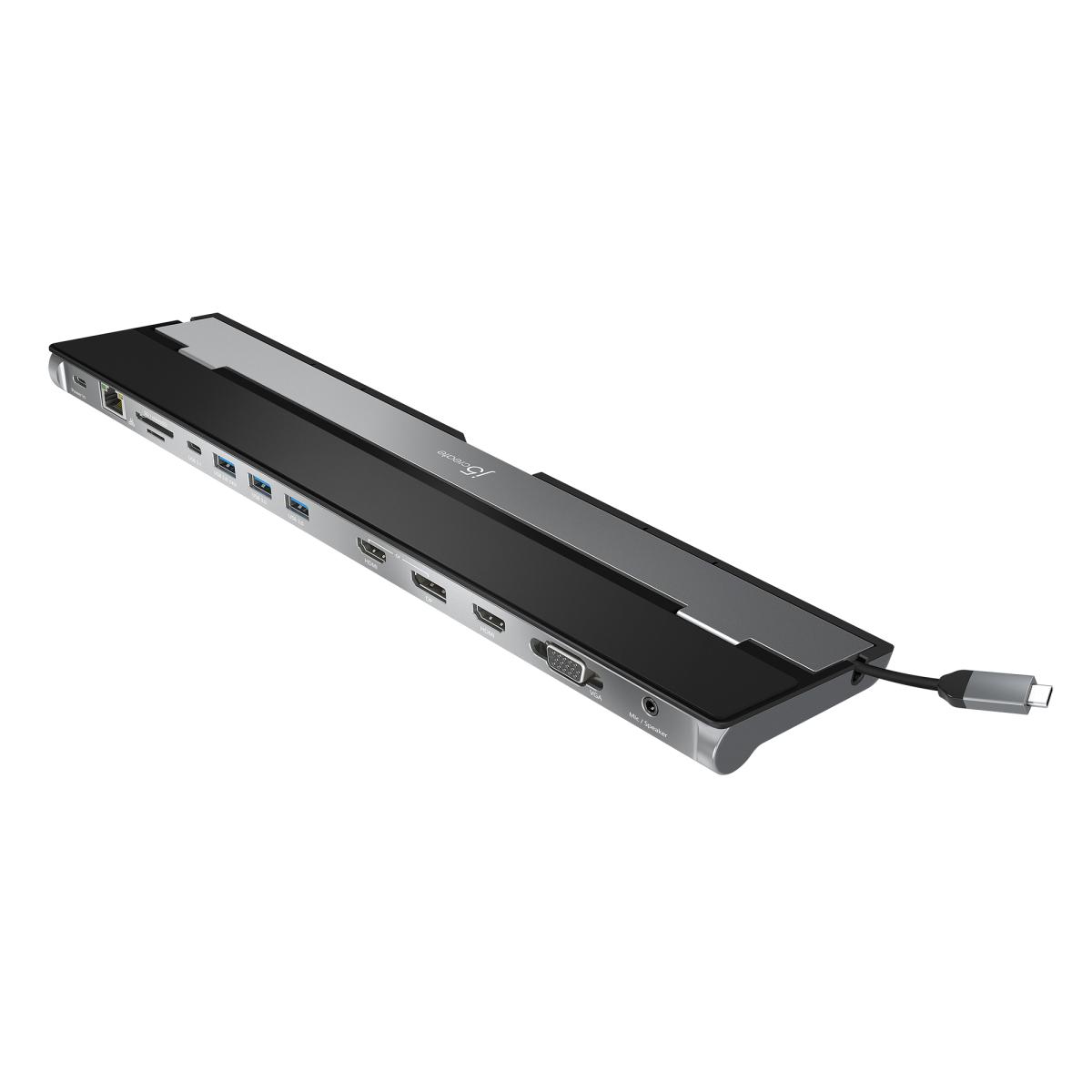

j5create JCD543 USB-C™ Triple Display Docking Station

j5create JCD543 USB-C™ Triple Display Docking Station

£78.16

j5create JCD543 USB-C™ Triple Display Docking Station, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 100 W, 10,100,1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, Black, Silver

4 in stock

SKU: JCD543-N

j5create JCD543 USB-C™ Triple Display Docking Station. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Product colour: Black, Silver, Compatible memory cards: MicroSD (TransFlash), SD, HD type: 4K Ultra HD. Input current: 5 A, Output voltage: 20 V, Output current: 0.9 A. Windows operating systems supported: Windows 10, Windows 11, Yes, Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14...
Weight 0.43kg
Brand j5create
Specifications Ports & interfaces
Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB Power Delivery (USB PD): Yes
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
HDMI ports quantity: 2
VGA (D-Sub) ports quantity: 1
Microphone in: Yes
Headphone outputs: 1
USB Type-C DisplayPort Alternate Mode: Yes
Network
Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Performance
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), SD
HD type: 4K Ultra HD
Number of displays supported: 3
Maximum refresh rate: 60 Hz
Product colour: Black, Silver
Hub interfaces: DisplayPort, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, VGA
Housing material: Aluminium
Country of origin: Taiwan
Power
Input current: 5 A
Output voltage: 20 V
Output current: 0.9 A
Power consumption (typical): 4.5 W
Power plug type: Type C
Software
Windows operating systems supported: Windows 10, Windows 11, Yes
Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, MacOS, Yes
Operational conditions
Operating temperature (T-T): 0 - 48 °C
Storage temperature (T-T): -10 - 65 °C
Operating relative humidity (H-H): 0 - 85%
Storage relative humidity (H-H): 0 - 85%
Weight & dimensions
Width: 82.5 mm
Depth: 350 mm
Height: 23.4 mm
Weight: 355 g
Packaging data
Quantity per pack: 1 pc(s)
Package width: 88 mm
Package depth: 358 mm
Package height: 28 mm
Package weight: 433 g
Packaging content
Cables included: USB Type-C
AC adapter included: No
Quick start guide: Yes
Manual: Yes
Packaging content: 1 x USB-C™ Triple Monitor Docking Station, 1 x Quick Installation Guide, 1 x 100W USB-C™ Power Adapter
Technical details
Warranty period: 2 year(s)
Other features
Cable length: 0.45 m
Maximum operating temperature: 48 °C
