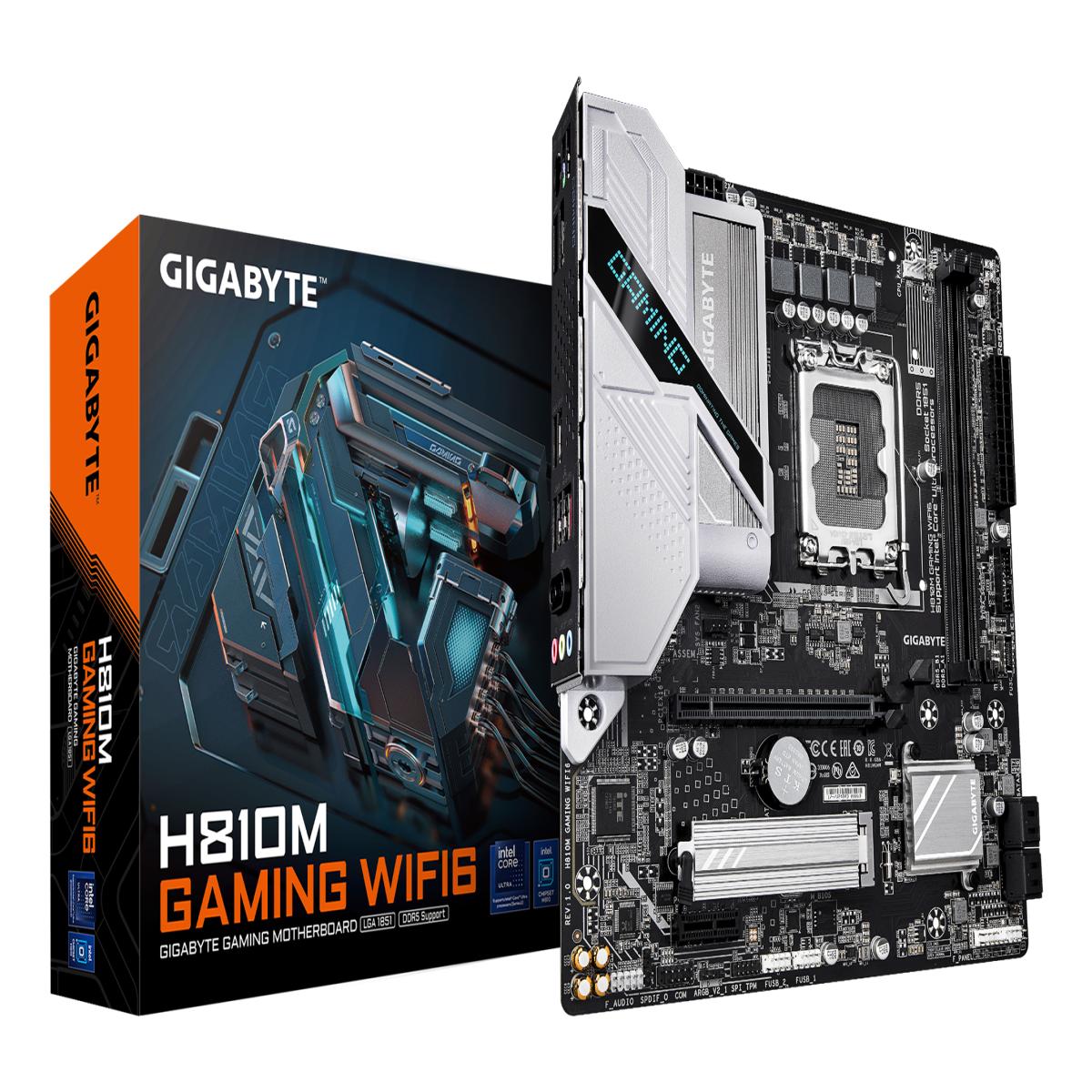

GIGABYTE H810M GAMING WIFI6 Motherboard - Intel Core Ultra (Series 2) CPUs, 4+1+2 Phases VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6, USB 3.2 Gen 1

£101.25

66 in stock

SKU: H810M GAMING WIFI6

GIGABYTE H810M GAMING WIFI6 Motherboard - Intel Core Ultra (Series 2) CPUs, 4+1+2 Phases VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6, USB 3.2 Gen 1, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 128 GBGIGABYTE H810M GAMING WIFI6 Motherboard - Intel Core Ultra (Series 2) CPUs, 4+1+2 Phases VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Weight	1.19kg
Brand	GIGABYTE
Processor socket	LGA 1851 (Socket V1)
Supported memory types	DDR5-SDRAM
Motherboard chipset	Intel H810
Motherboard form factor	micro ATX
Specifications	Processor Processor manufacturer: Intel Processor socket: LGA 1851 (Socket V1) Compatible processor series: Intel Core Ultra (Series 2) Supported processor sockets: LGA 1851 Memory Supported memory types: DDR5-SDRAM Number of memory slots: 2 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: ECC & Non-ECC Supported memory clock speeds: 5600,6400 MHz Supported memory clock speed (max): 6400 MHz Maximum internal memory: 128 GB Unbuffered memory: Yes Maximum internal memory per slot: 64 GB Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III Number of HDDs supported: 4 Number of storage drives supported: 5 RAID support: Yes RAID levels: 0, 1, 5, 10 Graphics Parallel processing technology support: Not supported Maximum resolution: 4096 x 2160 pixels HDCP: Yes DirectX version: 12.0 Internal I/O USB 2.0 connectors: 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2 Number of SATA III connectors: 4 S/PDIF out connector: Yes Front panel audio connector: Yes Front panel connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes Number of CPU fan connectors: 1 Number of chassis fan connectors: 2 EPS power connector (8-pin): Yes Number of EPS power connectors (8-pin): 1 TPM connector: Yes Serial port headers: 1 RGB LED pin header: Yes Number of RGB LED pin headers: 2 Rear panel I/O ports USB 2.0 ports quantity: 5 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1 Ethernet LAN (RJ-45) ports: 1 PS/2 ports quantity: 1 HDMI ports quantity: 1 HDMI version: 2.1 DisplayPorts quantity: 1 DisplayPort version: 2.1 Headphone outputs: 1 Line-in: Yes Microphone in: Yes WiFi-AP antenna jack: 2 Network Ethernet LAN: Yes Ethernet interface type: 2.5 Gigabit Ethernet LAN controller: Realtek RTL8125 Wi-Fi: Yes Top Wi-Fi standard: Wi-Fi 6 (802.11ax) Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) WLAN controller model: Realtek RTL8851BE Bluetooth: Yes Bluetooth version: 5.3 Features Motherboard chipset: Intel H810 Audio chip: Realtek ALC897 Audio output channels: 7.1 channels Product colour: Dark brown PC health monitoring: Fan, Temperature, Voltage, Water cooling Component for: PC Motherboard form factor: micro ATX Motherboard chipset family: Intel Cooling type: Passive Power source type: ATX Windows operating systems supported: Windows 10 x64, Windows 11 x64 Expansion slots PCI Express x1 (Gen 3.x) slots: 1 PCI Express x16 (Gen 4.x) slots: 1 Number of M.2 (M) slots: 1 1st M.2 largest key size: 2280 1st M.2 highest PCI Express generation: 4.0 BIOS BIOS type: UEFI AMI BIOS memory size: 256 Mbit ACPI version: 5.0 Clear CMOS jumper: Yes Desktop Management Interface (DMI) version: 2.7 System Management BIOS (SMBIOS) version: 2.7 Logistics data Products per shipping (inner) case: 1 pc(s) Battery Battery weight: 3 g Lithium weight per battery: 0.07 g Number of battery cells: 1 Battery technology: Lithium-Manganese Dioxide (LiMnO2) Battery type: CR2032 Packaging data Package width: 270 mm Package depth: 268 mm Package height: 68 mm Package weight: 1.19 kg Weight & dimensions Width: 244 mm Depth: 215 mm Height: 35 mm Packaging content Batteries included: Yes Antenna included: Yes Screws included: Yes Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software Other features Weight: 1.1 kg Technical details Warranty period: 3 year(s)
