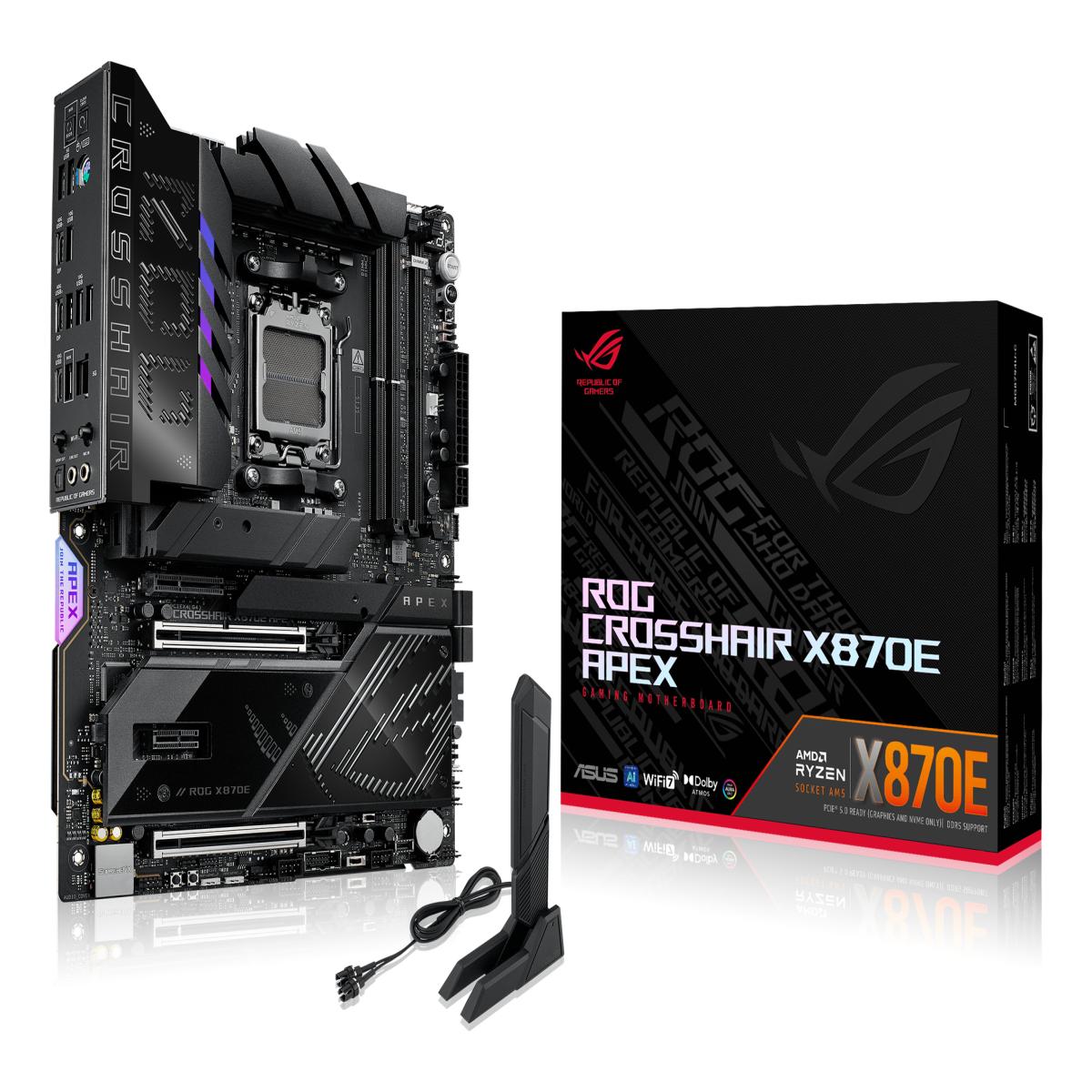

ASUS ROG CROSSHAIR X870E APEX AMD X870E Socket AM5 ATX
£566.09
ASUS ROG CROSSHAIR X870E APEX, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 128 GB
24 in stock
SKU: 90MB1KR0-M0EAY0
AMD X870E (AM5 Socket) ATX motherboard, Advanced AI PC-ready, 18+2+2 power stages, Dynamic OC Switcher, Core Flex, DDR5 slots with AEMP, ROG Memory Fan Kit for DDR5 overclocking, Wi-Fi 7 with ASUS WiFi Q-Antenna, three PCIe® 5.0 M.2 slots onboard, two PCIe 4.0 slots on an ROG DIMM.2 card, PCIe® 5.0 x16 SafeSlots with PCIe® Slot Q-Release Slim and full support for next-gen graphics cards, two USB4® ports, two USB 20Gbps Type-C® front-panel connectors (one with Quick Charge 4+ up to 60W and USB Wattage Watcher), AI Overclocking, AI Cooling II, and AI Networking II
E&OE
- AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- PC ATX AMD X870E 7.1 channels
- DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 9
- BIOS type: UEFI AMI 512 Mbit
- 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
| Weight | 4.16kg |
|---|---|
| Brand | ASUS |
| Processor socket | Socket AM5 |
| Supported memory types | DDR5-SDRAM |
| Motherboard chipset | AMD X870E |
| Motherboard form factor | ATX |
| Specifications | Processor Processor manufacturer: AMD Processor socket: Socket AM5 Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series Supported processor sockets: Socket AM5 Memory Supported memory types: DDR5-SDRAM Number of memory slots: 2 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: ECC & Non-ECC Maximum internal memory: 128 GB Unbuffered memory: Yes Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, SATA III Number of HDDs supported: 4 Number of storage drives supported: 9 RAID support: Yes RAID levels: 0, 1, 5, 10 Graphics Parallel processing technology support: Not supported On-board graphics card: No Internal I/O USB 2.0 connectors: 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2 USB 3.2 Gen 2x2 connectors: 2 Number of SATA III connectors: 4 Front panel audio connector: Yes Front panel connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes Number of chassis fan connectors: 2 EPS power connector (8-pin): Yes 12V power connector: Yes RGB LED pin header: Yes Number of RGB LED pin headers: 3 Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1 USB4 Gen 3x2 ports quantity: 2 Ethernet LAN (RJ-45) ports: 1 PS/2 ports quantity: 1 S/PDIF out port: Yes WiFi-AP antenna jack: 1 Network Ethernet LAN: Yes Ethernet interface type: 5 Gigabit Ethernet Wi-Fi: Yes Top Wi-Fi standard: Wi-Fi 7 (802.11be) Wi-Fi standards: Wi-Fi 7 (802.11be) Bluetooth: Yes Bluetooth version: 5.4 Features Motherboard chipset: AMD X870E Audio output channels: 7.1 channels Product colour: Black Component for: PC Motherboard form factor: ATX Motherboard chipset family: AMD Windows operating systems supported: Windows 11 Expansion slots PCI Express x1 (Gen 3.x) slots: 1 PCI Express x4 (Gen 4.x) slots: 1 PCI Express x16 (Gen 4.x) slots: 2 PCI Express x16 (Gen 5.x) slots: 2 Number of M.2 (M) slots: 5 1st M.2 largest key size: 2280 1st M.2 highest PCI Express generation: 5.0 2nd M.2 largest key size: 2280 2nd M.2 highest PCI Express generation: 5.0 3rd M.2 largest key size: 2280 3rd M.2 highest PCI Express generation: 5.0 4th M.2 largest key size: 22110 4th M.2 highest PCI Express generation: 4.0 5th M.2 largest key size: 22110 5th M.2 highest PCI Express generation: 4.0 BIOS BIOS type: UEFI AMI BIOS memory size: 512 Mbit Packaging data Package width: 370 mm Package depth: 312 mm Package height: 108 mm Package weight: 4.16 kg Weight & dimensions Width: 305 mm Depth: 244 mm Packaging content Cables included: SATA Antenna included: Yes Screws included: Yes Drivers included: Yes |
