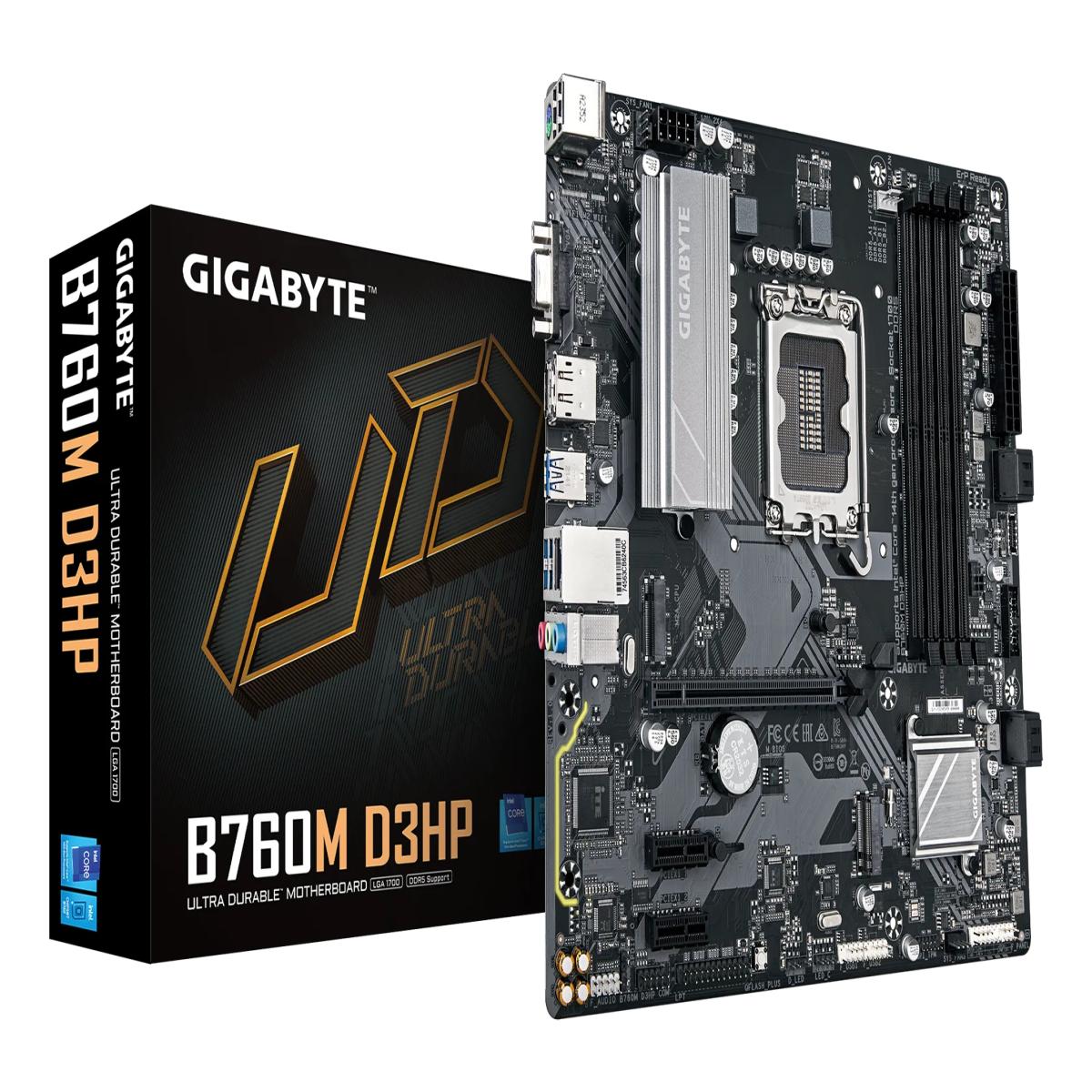

GIGABYTE B760M D3HP Motherboard - Intel Core 14th Gen CPUs, 4+1+1 Phases VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1

£92.24

9 in stock

SKU: B760M D3HP

GIGABYTE B760M D3HP Motherboard - Intel Core 14th Gen CPUs, 4+1+1 Phases VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1, Intel, LGA 1700, Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel..., LGA 1700, DDR5-SDRAM, 256 GB

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

E&OE

Intel LGA 1700 Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold
PC micro ATX Intel B760 Express 7.1 channels
DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
BIOS type: UEFI AMI 128 Mbit ACPI version: 5.0 Clear CMOS jumper
Gigabit Ethernet

Weight	1.21kg
Brand	GIGABYTE
Processor socket	LGA 1700
Supported memory types	DDR5-SDRAM
Motherboard chipset	Intel B760 Express
Motherboard form factor	micro ATX
Specifications	Processor Processor manufacturer: Intel Processor socket: LGA 1700 Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold Supported processor sockets: LGA 1700 Memory Supported memory types: DDR5-SDRAM Number of memory slots: 4 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: ECC & Non-ECC Supported memory clock speeds: 4400,4800,5200,5600 MHz Supported memory clock speed (max): 5600 MHz Maximum internal memory: 256 GB Unbuffered memory: Yes Maximum internal memory per slot: 64 GB Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, SATA III Number of HDDs supported: 4 Number of storage drives supported: 6 RAID support: Yes RAID levels: 0, 1, 5, 10 Graphics Parallel processing technology support: Not supported Maximum resolution: 4096 x 2304 pixels HDCP: Yes DirectX version: 12.0 Internal I/O USB 2.0 connectors: 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2 Number of SATA III connectors: 4 S/PDIF out connector: Yes Front panel audio connector: Yes Front panel connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes Number of CPU fan connectors: 1 Number of chassis fan connectors: 3 EPS power connector (8-pin): Yes Number of EPS power connectors (8-pin): 1 TPM connector: Yes Parallel connector: Yes Serial port headers: 1 12V power connector: Yes RGB LED pin header: Yes Number of RGB LED pin headers: 2 Rear panel I/O ports USB 2.0 ports quantity: 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3 Ethernet LAN (RJ-45) ports: 1 PS/2 ports quantity: 1 VGA (D-Sub) ports quantity: 1 HDMI ports quantity: 1 HDMI version: 2.1 DisplayPorts quantity: 1 DisplayPort version: 1.2 Headphone outputs: 1 Line-in: Yes Microphone in: Yes Network Ethernet LAN: Yes Ethernet interface type: Gigabit Ethernet LAN controller: Realtek RTL8111H Wi-Fi: No Features Motherboard chipset: Intel B760 Express Audio output channels: 7.1 channels Product colour: Brown PC health monitoring: Fan, Temperature, Voltage, Water cooling Component for: PC Motherboard form factor: micro ATX Motherboard chipset family: Intel Power source type: ATX Windows operating systems supported: Windows 10, Windows 11 Expansion slots PCI Express x1 (Gen 3.x) slots: 2 PCI Express x16 (Gen 4.x) slots: 1 Number of M.2 (M) slots: 2 1st M.2 largest key size: 2280 1st M.2 highest PCI Express generation: 4.0 2nd M.2 largest key size: 2280 2nd M.2 highest PCI Express generation: 4.0 BIOS BIOS type: UEFI AMI BIOS memory size: 128 Mbit ACPI version: 5.0 Clear CMOS jumper: Yes Desktop Management Interface (DMI) version: 2.7 System Management BIOS (SMBIOS) version: 2.7 Logistics data Products per shipping (inner) case: 1 pc(s) Battery Battery weight: 3 g Lithium weight per battery: 0.07 g Number of battery cells: 1 Battery technology: Lithium-Manganese Dioxide (LiMnO2) Battery type: CR2032 Packaging data Package width: 270 mm Package depth: 268 mm Package height: 68 mm Package weight: 1.21 kg Weight & dimensions Width: 244 mm Depth: 244 mm Height: 35 mm Packaging content Batteries included: Yes Screws included: Yes Bundled software: Norton Internet Security Other features Weight: 720 g Technical details Warranty period: 3 year(s)
