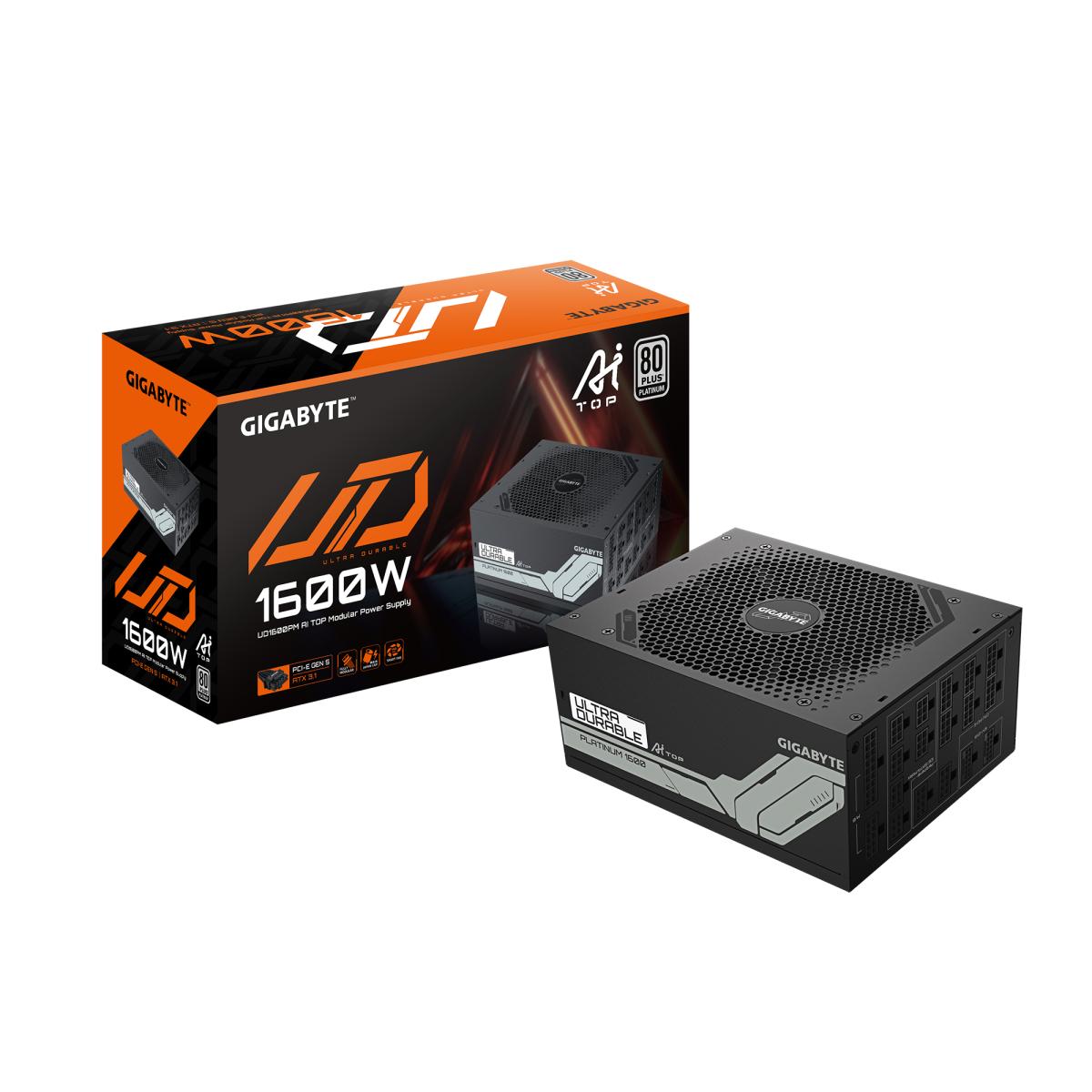

GIGABYTE UD1600PM PG5 AI TOP power supply unit 1600 W 20+4 pin ATX ATX Black
£274
GIGABYTE UD1600PM PG5 AI TOP, 1600 W, 100 - 240 V, 50/60 Hz, 15 - 7.5 A, Active, 150 W
2 in stock
SKU: GP-UD1600PM PG5
GIGABYTE UD1600PM PG5 AI TOP. Total power: 1600 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,650 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 190 mm, Height: 86 mm
| Weight | 5.58kg |
|---|---|
| Brand | GIGABYTE |
| Total power | 1600 W |
| Number of SATA power connectors | 16 |
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply unit (PSU) form factor | ATX |
| Specifications | Power Total power: 1600 W AC input voltage: 100 - 240 V AC input frequency: 50/60 Hz Input current: 15 - 7.5 A Power factor: 0.9 Power Factor Correction (PFC) type: Active Combined power (+3.3V): 150 W Combined power (+12V): 1600 W Combined power (+5V): 150 W Combined power (-12V): 9.6 W Combined power (+5Vsb): 17.5 W Max output current (+3.3V): 30 A Max output current (+12V): 133.3 A Max output current (+5V): 30 A Max output current (-12V): 0.8 A Max output current (+5Vsb): 3.5 A Hold time: 16 ms Efficiency: 92% Power Good signal delay range: 100 - 150 ms Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage Ports & interfaces Motherboard power connector: 20+4 pin ATX Motherboard power cable length: 61 cm Number of SATA power connectors: 16 SATA power cable length: 150,650 mm Peripheral (Molex) power connectors (4-pin): 6 EPS power connector (4+4 pin): Yes PCI Express power connectors (6+2 pin): 8 CPU power connector (4+4 pin): Yes ATX power connector (20+4 pin): Yes PCI Express connector: Yes Cabling type: Fully-Modular Performance 80 PLUS certification: 80 PLUS Platinum Purpose: PC Power supply unit (PSU) form factor: ATX ATX version: 3.1 Bearing technology: DBB Mean time between failures (MTBF): 100000 h Design Product colour: Black Cooling type: Active Fan diameter: 12 cm Number of fans: 1 fan(s) Fan location: Top On/off switch: Yes Weight & dimensions Width: 150 mm Depth: 190 mm Height: 86 mm Weight: 5.3 kg Packaging data Package width: 410 mm Package depth: 219 mm Package height: 145 mm Package weight: 5.58 kg Package type: Box Logistics data Warranty period: 10 year(s) |
