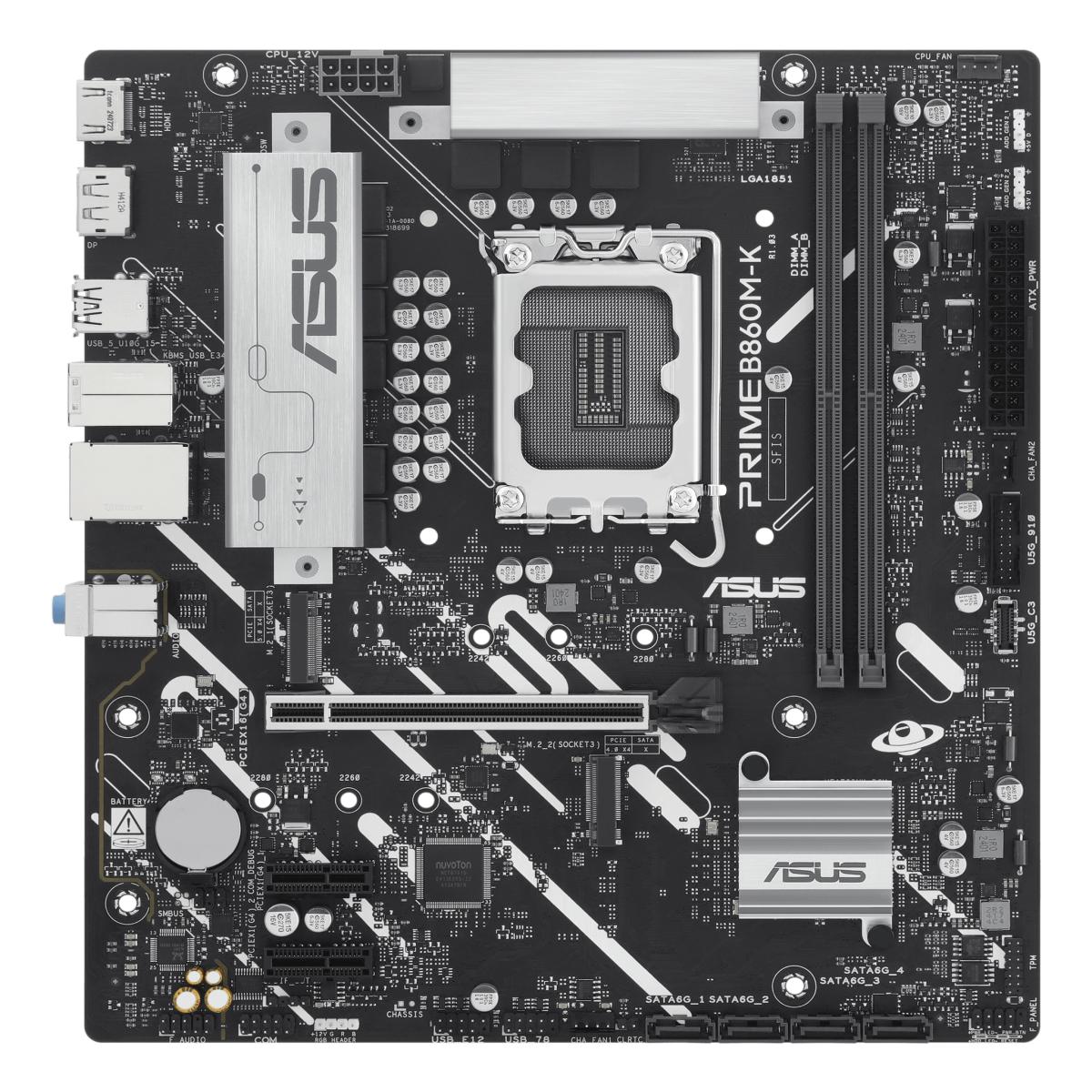

ASUS PRIME B860M-K Intel B860 LGA 1851 (Socket V1) micro ATX
£140.69
ASUS PRIME B860M-K, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 128 GB
out of stock
SKU: 90MB1JT0-M0EAY0
B860M-KASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
E&OE
- Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
- PC micro ATX Intel B860 7.1 channels
- DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet
| Weight | 1.07kg |
|---|---|
| Brand | ASUS |
| Processor socket | LGA 1851 (Socket V1) |
| Supported memory types | DDR5-SDRAM |
| Motherboard chipset | Intel B860 |
| Motherboard form factor | micro ATX |
| Specifications | Processor Processor manufacturer: Intel Processor socket: LGA 1851 (Socket V1) Compatible processor series: Intel Core Ultra (Series 2) Supported processor sockets: LGA 1851 Memory Supported memory types: DDR5-SDRAM Number of memory slots: 2 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: Non-ECC Maximum internal memory: 128 GB Unbuffered memory: Yes Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, SATA III Number of HDDs supported: 4 Number of storage drives supported: 6 RAID support: Yes RAID levels: 0, 1, 5, 10 Graphics Parallel processing technology support: Not supported Internal I/O USB 2.0 connectors: 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2 Number of SATA III connectors: 4 S/PDIF out connector: Yes Front panel audio connector: Yes Front panel connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes Number of chassis fan connectors: 2 Number of COM connectors: 1 TPM connector: Yes 12V power connector: Yes RGB LED pin header: Yes Rear panel I/O ports USB 2.0 ports quantity: 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1 Ethernet LAN (RJ-45) ports: 1 PS/2 ports quantity: 1 HDMI ports quantity: 1 DisplayPorts quantity: 1 Network Ethernet LAN: Yes Ethernet interface type: 2.5 Gigabit Ethernet Wi-Fi: No Top Wi-Fi standard: Not available Features Motherboard chipset: Intel B860 Audio output channels: 7.1 channels Component for: PC Motherboard form factor: micro ATX Motherboard chipset family: Intel Windows operating systems supported: Windows 10 x64, Windows 11 Expansion slots PCI Express x1 (Gen 4.x) slots: 2 PCI Express x16 (Gen 4.x) slots: 1 Number of M.2 (M) slots: 2 1st M.2 largest key size: 2280 1st M.2 highest PCI Express generation: 5.0 2nd M.2 largest key size: 2280 2nd M.2 highest PCI Express generation: 4.0 BIOS BIOS type: UEFI AMI BIOS memory size: 256 Mbit Packaging data Package width: 270 mm Package depth: 263 mm Package height: 51.5 mm Package weight: 1.07 kg Weight & dimensions Width: 244 mm Depth: 222 mm Packaging content Cables included: SATA |
