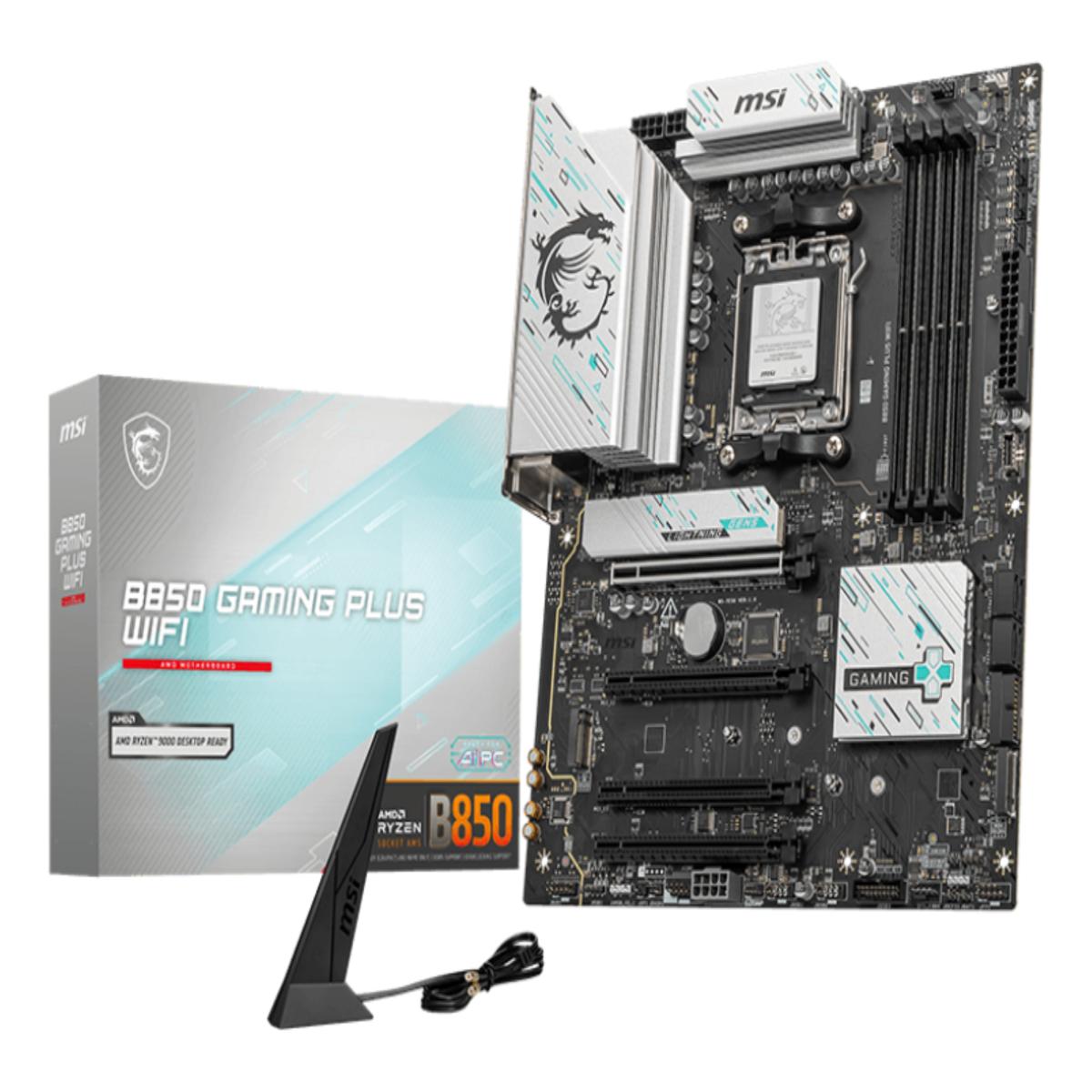

MSI B850 GAMING PLUS WIFI motherboard AMD B850 Socket AM5 ATX
£160.9
out of stock
SKU: B850 GAMING PLUS WIFI
The B850 GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring full-speed Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.12+2+1 Duet Rail Power SystemUnleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, the B850 GAMING PLUS WIFI is ready to sustain heavy gaming loadings.Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.M.2 Shield FrozrStrengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.7W/mK Thermal Pad & Additional Choke PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.Enlarged Chipset HeatsinkThe enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.HIGH-BANDWIDTH AND LOW-LATENCY NETWORKMSI's premium network solution provides incredible data transfer speed for demanding users.
E&OE
- AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- PC ATX AMD B850 Realtek ALC897 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
- HDD & SSD M.2, Micro SATA III RAID support Number of storage drives supported: 7
- BIOS type: UEFI AMI ACPI version: 6.5
- 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
| Weight | 1.61kg |
|---|---|
| Brand | MSI |
| Processor socket | Socket AM5 |
| Supported memory types | DDR5-SDRAM |
| Motherboard chipset | AMD B850 |
| Motherboard form factor | ATX |
| Specifications | Processor Processor manufacturer: AMD Processor socket: Socket AM5 Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series Supported processor sockets: Socket AM5 Maximum internal memory supported by processor: 256 GB Memory Supported memory types: DDR5-SDRAM Number of memory slots: 4 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: Non-ECC Supported memory clock speeds: 4800,5600,8200 MHz Supported memory clock speed (max): 8200 MHz Maximum internal memory: 256 GB Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, Micro SATA III Number of HDDs supported: 4 Number of storage drives supported: 7 RAID support: Yes RAID levels: 0, 1 Graphics On-board graphics card: No Internal I/O USB 2.0 connectors: 4 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4 USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1 Number of SATA III connectors: 4 Total number of SATA connectors: 4 CPU fan connector: Yes Number of CPU fan connectors: 4 Number of water pump connectors: 1 RGB LED pin header: Yes Number of RGB LED pin headers: 3 Rear panel I/O ports USB 2.0 ports quantity: 4 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2 Ethernet LAN (RJ-45) ports: 1 HDMI ports quantity: 1 HDMI version: 2.1 Network Ethernet LAN: Yes Ethernet interface type: 5 Gigabit Ethernet Wi-Fi: Yes Top Wi-Fi standard: Wi-Fi 7 (802.11be) Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) Bluetooth: Yes Bluetooth version: 5.4 Features Motherboard chipset: AMD B850 Audio chip: Realtek ALC897 Audio output channels: 7.1 channels Product colour: Black Component for: PC Motherboard form factor: ATX Motherboard chipset family: AMD Windows operating systems supported: Windows 11 x64 Expansion slots PCI Express x16 (Gen 3.x) slots: 2 PCI Express x16 (Gen 4.x) slots: 1 PCI Express x16 (Gen 5.x) slots: 1 Number of M.2 (M) slots: 3 1st M.2 largest key size: 2280 1st M.2 highest PCI Express generation: 5.0 2nd M.2 largest key size: 22110 2nd M.2 highest PCI Express generation: 4.0 3rd M.2 largest key size: 2280 3rd M.2 highest PCI Express generation: 4.0 BIOS BIOS type: UEFI AMI ACPI version: 6.5 System Management BIOS (SMBIOS) version: 3.7 Weight & dimensions Width: 243.8 mm Depth: 304.8 mm |
