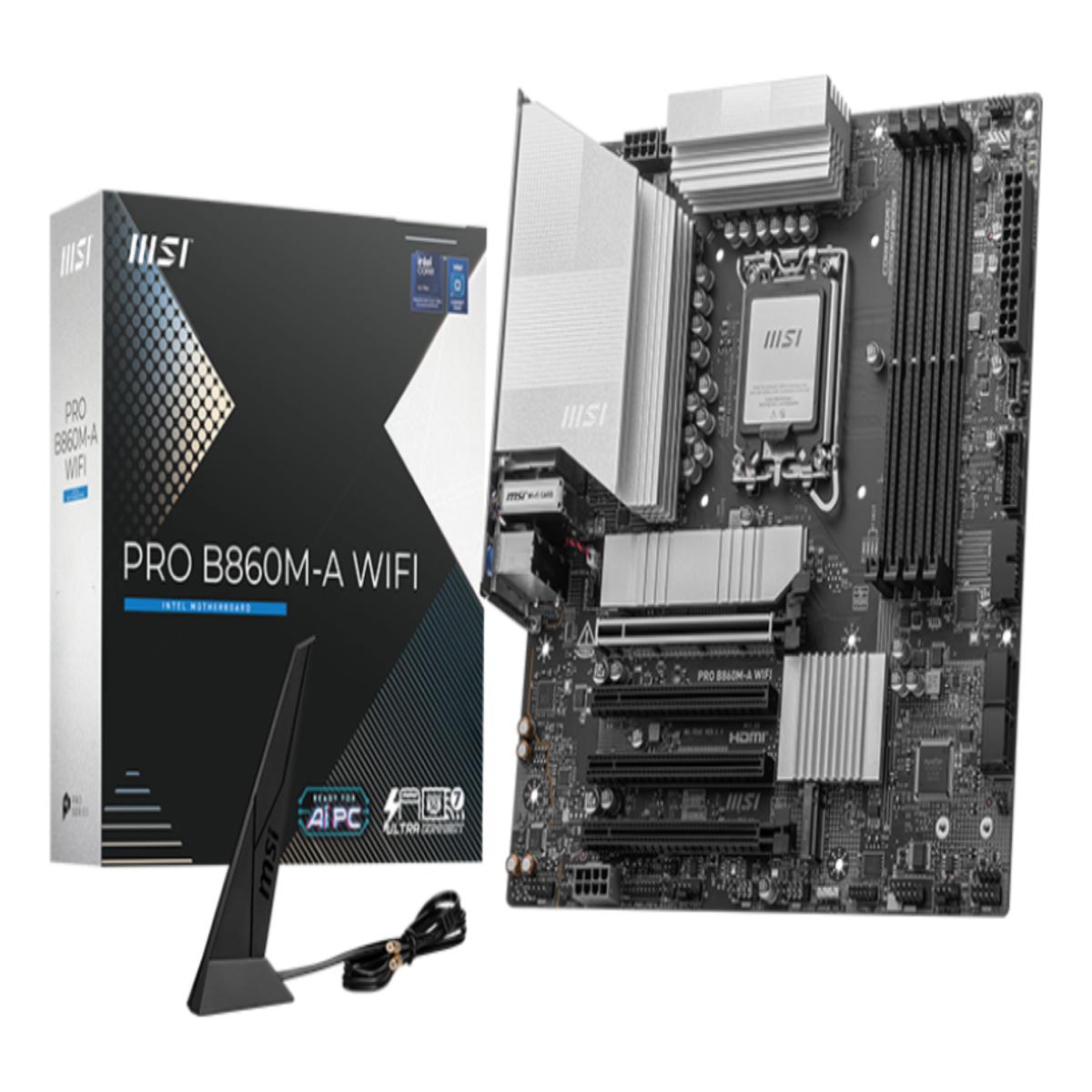

MSI PRO B860M-A WIFI motherboard Intel B860 LGA 1851 (Socket V1) micro ATX
£157.88
MSI PRO B860M-A WIFI, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, 256 GB, DDR5-SDRAM
out of stock
SKU: PRO B860M-A WIFI
PRO B860M-A WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.
E&OE
- Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
- PC micro ATX Intel B860 Realtek ALC897 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
- HDD & SSD M.2, Micro SATA III RAID support Number of storage drives supported: 7
- BIOS type: UEFI AMI 256 Mbit ACPI version: 6.5
- 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
| Weight | 3.00kg |
|---|---|
| Brand | MSI |
| Processor socket | LGA 1851 (Socket V1) |
| Supported memory types | DDR5-SDRAM |
| Motherboard chipset | Intel B860 |
| Motherboard form factor | micro ATX |
| Specifications | Processor Processor manufacturer: Intel Processor socket: LGA 1851 (Socket V1) Compatible processor series: Intel Core Ultra (Series 2) Supported processor sockets: LGA 1851 Maximum internal memory supported by processor: 256 GB Memory Supported memory types: DDR5-SDRAM Number of memory slots: 4 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: Non-ECC Supported memory clock speeds: 4800,6400,8800 MHz Supported memory clock speed (max): 8800 MHz Maximum internal memory: 256 GB Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, Micro SATA III Number of HDDs supported: 4 Number of storage drives supported: 7 RAID support: Yes RAID levels: 0, 1, 5, 10 Graphics On-board graphics card: No Internal I/O USB 2.0 connectors: 4 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4 USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1 Number of SATA III connectors: 4 Total number of SATA connectors: 4 CPU fan connector: Yes Number of CPU fan connectors: 1 Number of water pump connectors: 1 RGB LED pin header: Yes Number of RGB LED pin headers: 3 Rear panel I/O ports USB 2.0 ports quantity: 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1 Ethernet LAN (RJ-45) ports: 1 HDMI ports quantity: 1 HDMI version: 2.1 Network Ethernet LAN: Yes Ethernet interface type: 5 Gigabit Ethernet Wi-Fi: Yes Top Wi-Fi standard: Wi-Fi 7 (802.11be) Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) Bluetooth: Yes Bluetooth version: 5.4 Features Motherboard chipset: Intel B860 Audio chip: Realtek ALC897 Audio output channels: 7.1 channels Product colour: Black Component for: PC Motherboard form factor: micro ATX Motherboard chipset family: AMD Windows operating systems supported: Windows 11 x64 Expansion slots PCI Express x16 (Gen 4.x) slots: 3 PCI Express x16 (Gen 5.x) slots: 1 Number of M.2 (M) slots: 3 1st M.2 largest key size: 2280 1st M.2 highest PCI Express generation: 5.0 2nd M.2 largest key size: 2280 2nd M.2 highest PCI Express generation: 4.0 3rd M.2 largest key size: 2280 3rd M.2 highest PCI Express generation: 4.0 BIOS BIOS type: UEFI AMI BIOS memory size: 256 Mbit ACPI version: 6.5 System Management BIOS (SMBIOS) version: 3.7 Weight & dimensions Width: 243.8 mm Depth: 243.8 mm |
