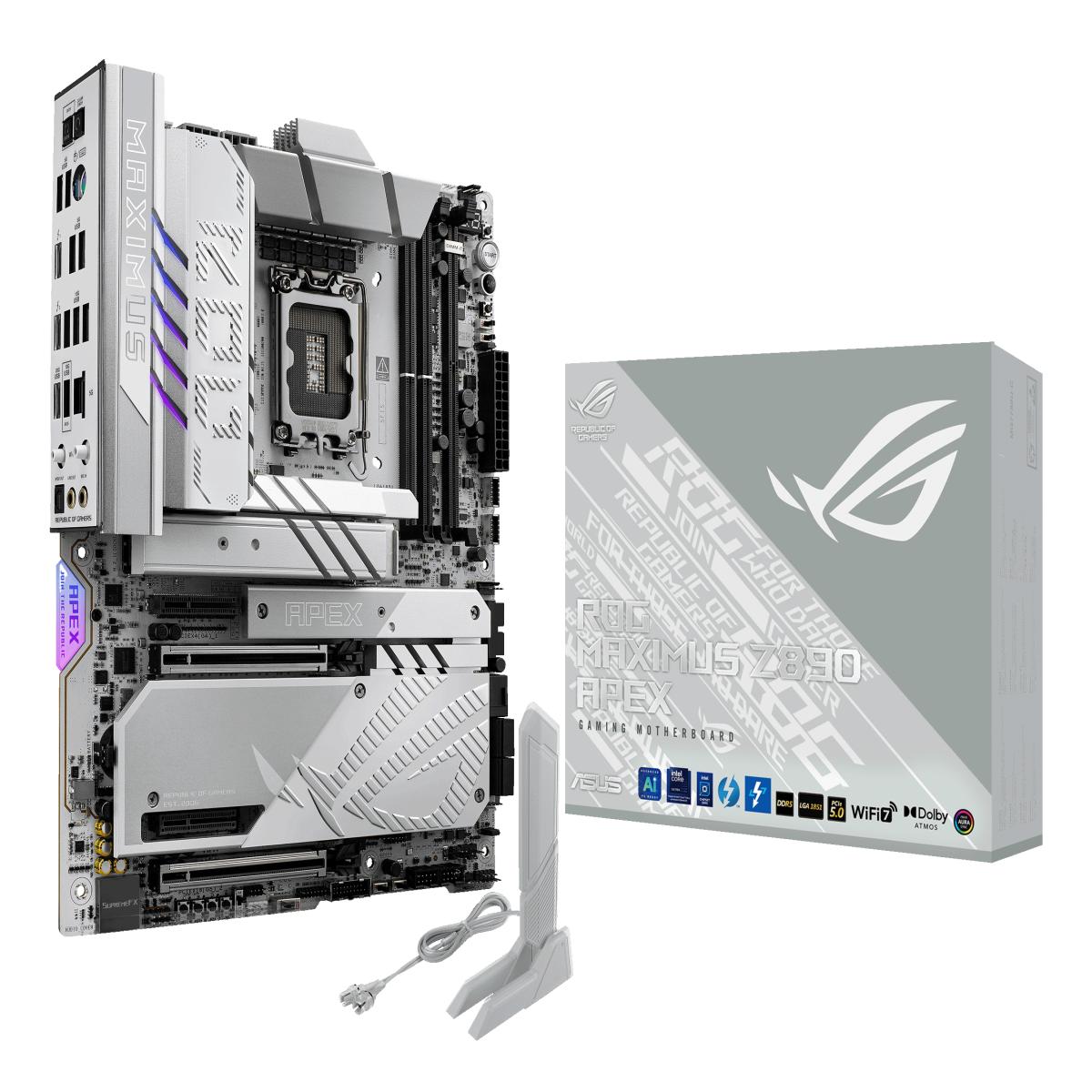

ASUS ROG MAXIMUS Z890 APEX Intel Z890 LGA 1851 (Socket V1) ATX
£398.04
ASUS ROG MAXIMUS Z890 APEX, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 96 GB
12 in stock
SKU: 90MB1IP0-M0EAY0
ROG Maximus Z890 APEXThe ROG Maximus Z890 Apex fully supports Intel® Core™ Ultra processors (Series 2). Precision-engineered for supreme overclocking, it carries the legacy of the series forward into a new generation. With exceptional power delivery and a two-slot DDR5 memory layout, overclockers can meet and exceed their ambitions for record-breaking CPU and memory performance. For those who favor lighter colors for the aesthetics of their build, the ROG Maximus Z890 Apex features a cobble-gray surface, polished metallic accents, sleek contours and a predominantly silver palette.
E&OE
- Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
- PC ATX Intel Z890 Realtek ALC4080 7.1 channels
- DDR5-SDRAM 2 DIMM Maximum internal memory: 96 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 10
- BIOS type: UEFI AMI 512 Mbit Clear CMOS button
- 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
| Weight | 3.70kg |
|---|---|
| Brand | ASUS |
| Processor socket | LGA 1851 (Socket V1) |
| Supported memory types | DDR5-SDRAM |
| Motherboard chipset | Intel Z890 |
| Motherboard form factor | ATX |
| Specifications | Processor Processor manufacturer: Intel Processor socket: LGA 1851 (Socket V1) Compatible processor series: Intel Core Ultra (Series 2) Supported processor sockets: LGA 1851 Memory Supported memory types: DDR5-SDRAM Number of memory slots: 2 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: Non-ECC Maximum internal memory: 96 GB Unbuffered memory: Yes Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, SATA III Number of HDDs supported: 4 Number of storage drives supported: 10 RAID support: Yes RAID levels: 0, 1, 5, 10 Graphics Parallel processing technology support: Not supported On-board graphics card: No Internal I/O USB 2.0 connectors: 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2 USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1 USB 3.2 Gen 2x2 connectors: 1 Number of SATA III connectors: 4 Front panel audio connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes Number of chassis fan connectors: 2 Thunderbolt headers: 1 12V power connector: Yes RGB LED pin header: Yes Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4 USB 3.2 Gen 2x2 Type-C ports quantity: 1 Ethernet LAN (RJ-45) ports: 1 PS/2 ports quantity: 1 Microphone in: Yes S/PDIF out port: Yes Thunderbolt ports quantity: 2 WiFi-AP antenna jack: 1 Network Ethernet LAN: Yes Ethernet interface type: 5 Gigabit Ethernet Wi-Fi: Yes Top Wi-Fi standard: Wi-Fi 7 (802.11be) Wi-Fi standards: Wi-Fi 7 (802.11be) Bluetooth: Yes Bluetooth version: 5.4 Features Motherboard chipset: Intel Z890 Audio chip: Realtek ALC4080 Audio output channels: 7.1 channels Product colour: Aluminium Component for: PC Motherboard form factor: ATX Motherboard chipset family: Intel Windows operating systems supported: Windows 11 Expansion slots PCI Express x4 (Gen 4.x) slots: 2 PCI Express x16 (Gen 5.x) slots: 2 Number of M.2 (M) slots: 6 BIOS BIOS type: UEFI AMI BIOS memory size: 512 Mbit Clear CMOS button: Yes Packaging data Package width: 370 mm Package depth: 312 mm Package height: 108 mm Package weight: 3.7 kg Weight & dimensions Width: 305 mm Depth: 244 mm Packaging content Screws included: Yes Drivers included: Yes |
