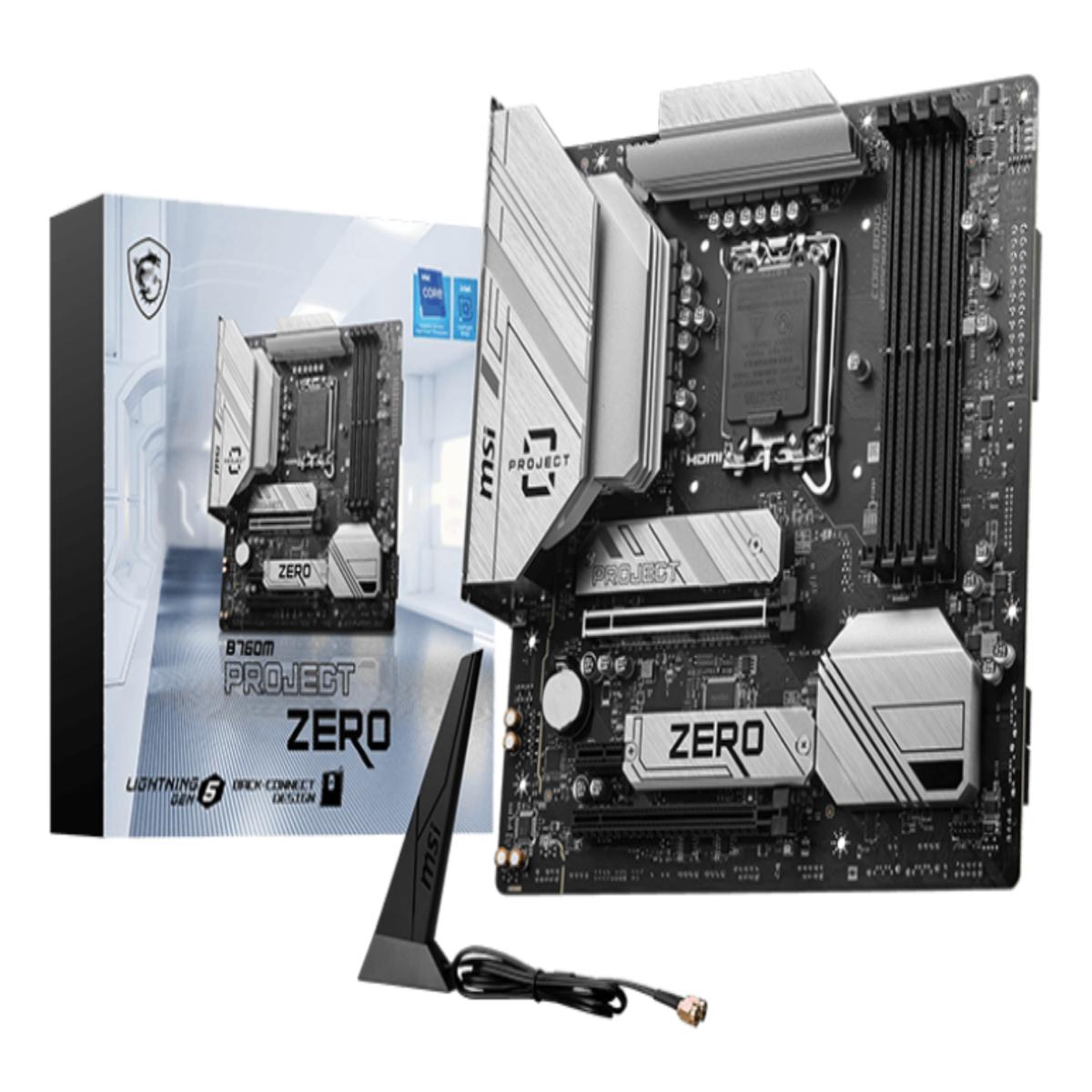

MSI B760M PROJECT ZERO motherboard Intel B760 LGA 1700 micro ATX
£128.03
out of stock
SKU: B760M PROJECT ZERO
The B760M PROJECT ZERO features a unique back-connect design that reduces the complexity of cable management, resulting in a neater and more aesthetically pleasing appearance for the system. It’s compatible with Intel 14th/13th/12th Processors, supports DDR5, and comes equipped with a 2.5G LAN and Wi-Fi 6E solution. This makes it an excellent choice among mATX motherboards.ABSOLUTE SIMPLICITYB760M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.LIGHTNING GEN 5 PCI-EDoubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.SMT PCIE 5.0 SLOTThe advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.REINFORCED,HEAVY SOLDERED CONNECTIONSSecure to the motherboard with extra solder points and support the weight of heavy graphics cards.
E&OE
- Intel LGA 1700 Intel® Celeron®, Intel® Pentium® Gold
- PC micro ATX Intel B760 Realtek ALC897 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
- M.2, SATA III RAID support
- BIOS type: UEFI AMI 256 Mbit ACPI version: 6.4 Clear CMOS jumper
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3
| Weight | 23.50kg |
|---|---|
| Brand | MSI |
| Processor socket | LGA 1700 |
| Supported memory types | DDR5-SDRAM |
| Motherboard chipset | Intel B760 |
| Motherboard form factor | micro ATX |
| Specifications | Processor Processor manufacturer: Intel Processor socket: LGA 1700 Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold Maximum number of SMP processors: 1 Supported processor sockets: LGA 1700 Maximum internal memory supported by processor: 192 GB Memory Supported memory types: DDR5-SDRAM Number of memory slots: 4 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: Non-ECC Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800 MHz Supported memory clock speed (max): 7800 MHz Maximum internal memory: 192 GB Storage controllers Supported storage drive interfaces: M.2, SATA III RAID support: Yes RAID levels: 0, 1, 5, 10 Internal I/O USB 2.0 connectors: 4 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4 USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1 Number of SATA III connectors: 4 Front panel audio connector: Yes Front panel connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes TPM connector: Yes RGB LED pin header: Yes Rear panel I/O ports USB 2.0 ports quantity: 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2 Ethernet LAN (RJ-45) ports: 1 HDMI ports quantity: 1 HDMI version: 2.1 DisplayPorts quantity: 1 DisplayPort version: 1.4 Network Ethernet LAN: Yes Ethernet interface type: 2.5 Gigabit Ethernet Wi-Fi: Yes Top Wi-Fi standard: Wi-Fi 6E (802.11ax) Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) Bluetooth: Yes Bluetooth version: 5.3 Features Motherboard chipset: Intel B760 Audio chip: Realtek ALC897 Audio output channels: 7.1 channels Product colour: Black, White Component for: PC Motherboard form factor: micro ATX Motherboard chipset family: Intel Power source type: ATX Windows operating systems supported: Windows 10, Windows 11 Expansion slots PCI Express x1 (Gen 3.x) slots: 2 PCI Express x16 (Gen 4.x) slots: 1 PCI Express x16 (Gen 5.x) slots: 1 Number of M.2 (M) slots: 2 BIOS BIOS type: UEFI AMI BIOS memory size: 256 Mbit ACPI version: 6.4 Clear CMOS jumper: Yes System Management BIOS (SMBIOS) version: 3.5 Weight & dimensions Width: 243.8 mm Depth: 243.8 mm |
