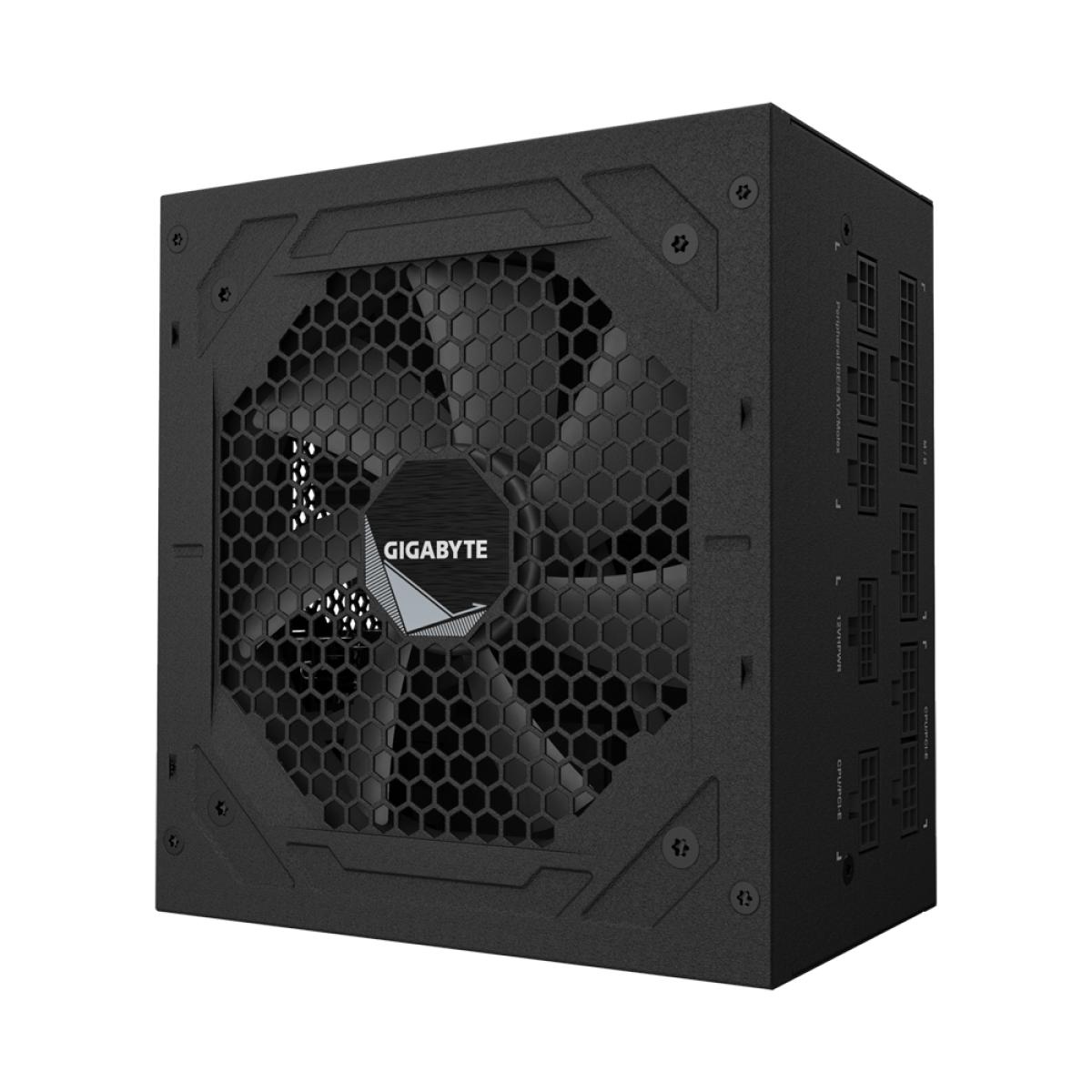

GIGABYTE UD750GM PG5 power supply unit 750 W 20+4 pin ATX ATX Black
£70
GIGABYTE UD750GM PG5, 750 W, 100 - 240 V, 12 A, Active, 105 W, 732 W
out of stock
SKU: GP-UD750GM PG5
GIGABYTE UD750GM PG5. Total power: 750 W, AC input voltage: 100 - 240 V, Input current: 12 A. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,300,450,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
| Weight | 0.69kg |
|---|---|
| Brand | GIGABYTE |
| Total power | 750 W |
| Number of SATA power connectors | 8 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Specifications | Power Total power: 750 W AC input voltage: 100 - 240 V Input current: 12 A Power Factor Correction (PFC) type: Active Combined power (+3.3V): 105 W Combined power (+12V): 732 W Combined power (+5V): 105 W Combined power (-12V): 3.6 W Combined power (+5Vsb): 15 W Max output current (+3.3V): 20 A Max output current (+12V): 61 A Max output current (+5V): 20 A Max output current (-12V): 2.3 A Max output current (+5Vsb): 3 A Hold time: 16 ms Efficiency: 90% Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage Ports & interfaces Motherboard power connector: 20+4 pin ATX Motherboard power cable length: 61 cm Number of SATA power connectors: 8 SATA power cable length: 150,300,450,600 mm Peripheral (Molex) power connectors (4-pin): 3 Peripheral (Molex) power cable length: 120,500 mm EPS power connector (4+4 pin): Yes PCI Express power connectors (6+2 pin): 4 PCI Express power cable length: 60 cm CPU power connector (4+4 pin): Yes CPU power cable length: 60 cm ATX power connector (20+4 pin): Yes Floppy drive power connector: 1 Floppy disk drive connector: Yes Floppy disk drive cable length: 15 cm Cabling type: Fully-Modular Performance 80 PLUS certification: 80 PLUS Gold Purpose: PC Power supply unit (PSU) form factor: ATX ATX version: 2.31 Bearing technology: HYB Mean time between failures (MTBF): 100000 h Design Product colour: Black Cooling type: Active Fan diameter: 12 cm Number of fans: 1 fan(s) Fan location: Top On/off switch: Yes Packaging content Cables included: CPU, PCIe, Peripheral (Molex), SATA Weight & dimensions Width: 150 mm Depth: 140 mm Height: 86 mm Logistics data Harmonized System (HS) code: 84733020 |
