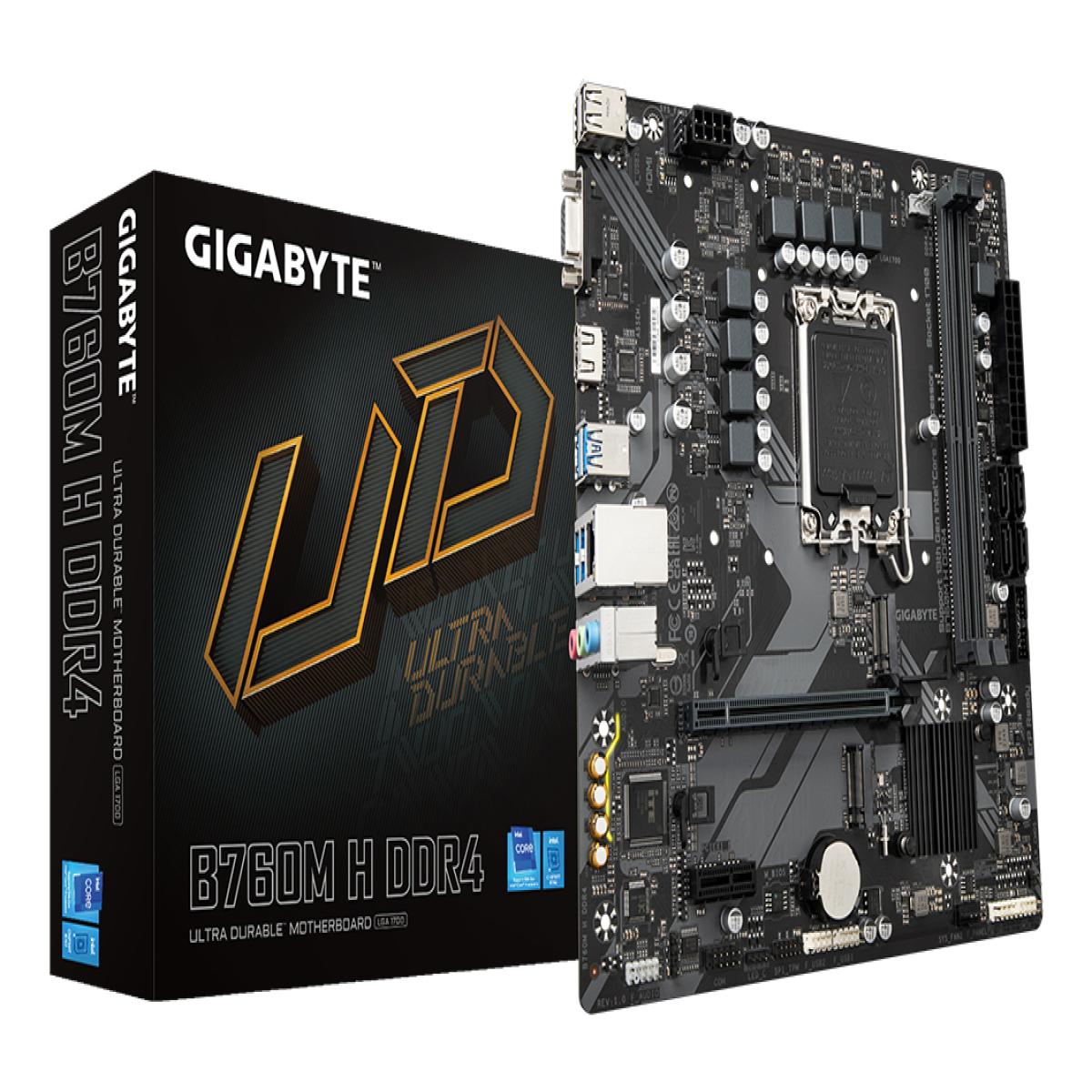

GIGABYTE B760M H DDR4 motherboard
£70.42
GIGABYTE B760M H DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+1+1 Phases Digital VRM, up to 3200MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, 64 GB, DDR4-SDRAM
1 in stock
SKU: B760M H DDR4
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
E&OE
- Intel LGA 1700 Intel® Celeron®, Intel® Pentium® Gold
- PC micro ATX Intel B760 Express Realtek ALC897 7.1 channels
- DDR4-SDRAM 2 DIMM Maximum internal memory: 64 GB
- M.2, SATA III RAID support Number of storage drives supported: 6
- BIOS type: UEFI AMI 128 Mbit ACPI version: 5.0 Clear CMOS jumper
- Gigabit Ethernet
| Weight | 0.83kg |
|---|---|
| Brand | GIGABYTE |
| Processor socket | LGA 1700 |
| Supported memory types | DDR4-SDRAM |
| Motherboard chipset | Intel B760 Express |
| Motherboard form factor | micro ATX |
| Specifications | Processor Processor manufacturer: Intel Processor socket: LGA 1700 Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold Maximum number of SMP processors: 1 Supported processor sockets: LGA 1700 Maximum internal memory supported by processor: 64 GB Memory Supported memory types: DDR4-SDRAM Number of memory slots: 2 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: Non-ECC Supported memory clock speeds: 2133,2400,2666,2933,3000,3200 MHz Supported memory clock speed (max): 3200 MHz Maximum internal memory: 64 GB Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB Storage controllers Supported storage drive interfaces: M.2, SATA III Number of HDDs supported: 4 Number of storage drives supported: 6 RAID support: Yes RAID levels: 0, 1, 5, 10 Graphics Parallel processing technology support: Not supported DirectX version: 12.1 Internal I/O USB 2.0 connectors: 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1 Number of SATA III connectors: 4 Total number of SATA connectors: 4 Front panel audio connector: Yes Front panel connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes EPS power connector (8-pin): Yes TPM connector: Yes Serial port headers: 1 RGB LED pin header: Yes Rear panel I/O ports USB 2.0 ports quantity: 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4 Ethernet LAN (RJ-45) ports: 1 VGA (D-Sub) ports quantity: 1 HDMI ports quantity: 1 HDMI version: 1.4 DisplayPorts quantity: 1 DisplayPort version: 1.4 Network Ethernet LAN: Yes Ethernet interface type: Gigabit Ethernet Wi-Fi: No Features Motherboard chipset: Intel B760 Express Audio chip: Realtek ALC897 Audio output channels: 7.1 channels Product colour: Brown Component for: PC Motherboard form factor: micro ATX Motherboard chipset family: Intel Power source type: ATX Windows operating systems supported: Windows 10, Windows 11 Expansion slots PCI Express x16 (Gen 4.x) slots: 1 Number of M.2 (M) slots: 2 BIOS BIOS type: UEFI AMI BIOS memory size: 128 Mbit ACPI version: 5.0 Clear CMOS jumper: Yes Desktop Management Interface (DMI) version: 2.7 System Management BIOS (SMBIOS) version: 2.7 Logistics data Country of origin: China Products per shipping (inner) case: 1 pc(s) Battery Battery weight: 3 g Lithium weight per battery: 0.07 g Number of battery cells: 1 Battery technology: Lithium-Manganese Dioxide (LiMnO2) Battery type: CR2032 Packaging data Package width: 265 mm Package depth: 265 mm Package height: 54 mm Package weight: 825 g Weight & dimensions Width: 230 mm Depth: 215 mm Height: 35 mm Packaging content Batteries included: Yes Technical details Warranty period: 3 year(s) |
