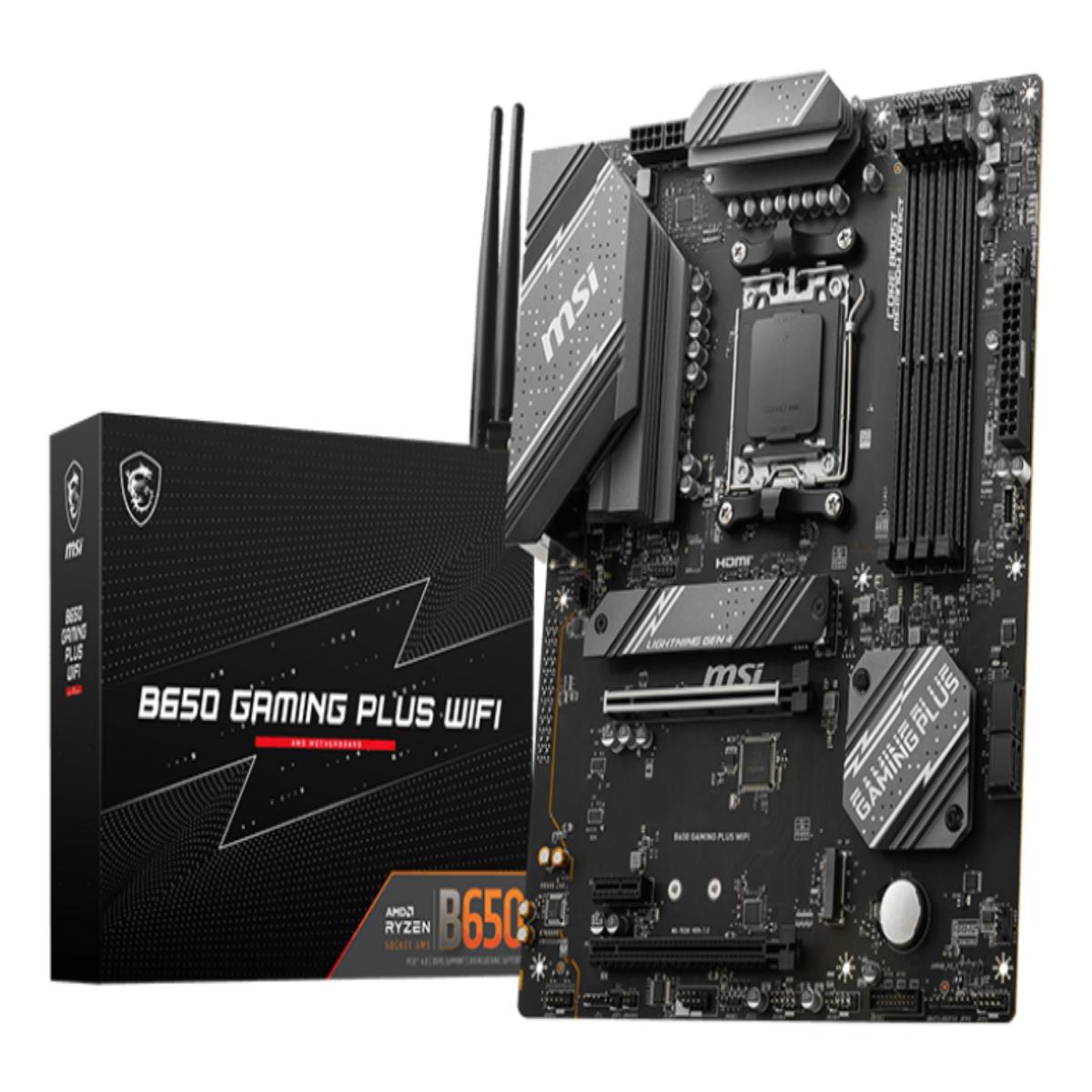

MSI B650 GAMING PLUS WIFI motherboard AMD B650 Socket AM5 ATX
£131.92
out of stock
SKU: B650 GAMING PLUS WIFI
B650 GAMING PLUS WIFIB650 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.M.2 Shield FrozrStrengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.7W/mK Thermal Pad & Additional Choke PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.Chipset HeatsinkThe chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.LIGHTNING GEN 4 PCI-EMSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.REINFORCED,HEAVY SOLDERED CONNECTIONSMSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
E&OE
- AMD Socket AM5 AMD Ryzen 7000 Series
- PC ATX AMD B650 Realtek ALC897 7.1 channels
- DDR5-SDRAM 4 Maximum internal memory: 192 GB
- M.2, SATA RAID support Number of storage drives supported: 6
- BIOS type: UEFI AMI 256 Mbit ACPI version: 6.4
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6 (802.11ax) Bluetooth 5.3
| Weight | 3.19kg |
|---|---|
| Brand | MSI |
| Processor socket | Socket AM5 |
| Supported memory types | DDR5-SDRAM |
| Motherboard chipset | AMD B650 |
| Motherboard form factor | ATX |
| Specifications | Processor Processor manufacturer: AMD Processor socket: Socket AM5 Compatible processor series: AMD Ryzen 7000 Series Supported processor sockets: Socket AM5 Memory Supported memory types: DDR5-SDRAM Number of memory slots: 4 ECC сompatibility: Non-ECC Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz Supported memory clock speed (max): 6000 MHz Maximum internal memory: 192 GB Storage controllers Supported storage drive interfaces: M.2, SATA Number of storage drives supported: 6 RAID support: Yes RAID levels: 0, 1, 10 Graphics Parallel processing technology support: Not supported On-board graphics card: No Internal I/O USB 2.0 connectors: 4 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2 USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1 Number of SATA III connectors: 4 Front panel audio connector: Yes Front panel connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes Chassis intrusion connector: Yes Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3 USB 3.2 Gen 2x2 Type-C ports quantity: 1 Ethernet LAN (RJ-45) ports: 1 HDMI ports quantity: 1 HDMI version: 2.1 Headphone outputs: 1 Line-in: Yes Microphone in: Yes Network Ethernet LAN: Yes Ethernet interface type: 2.5 Gigabit Ethernet LAN controller: Realtek RTL8125B Wi-Fi: Yes Top Wi-Fi standard: Wi-Fi 6 (802.11ax) Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) Bluetooth: Yes Bluetooth version: 5.3 Features Motherboard chipset: AMD B650 Audio chip: Realtek ALC897 Audio output channels: 7.1 channels Product colour: Black PC health monitoring: Fan Component for: PC Motherboard form factor: ATX Motherboard chipset family: AMD Windows operating systems supported: Windows 11 x64 Expansion slots PCI Express x16 slots: 2 PCI Express x16 (Gen 3.x) slots: 1 PCI Express x16 (Gen 4.x) slots: 2 Number of M.2 (M) slots: 2 BIOS BIOS type: UEFI AMI BIOS memory size: 256 Mbit ACPI version: 6.4 Weight & dimensions Width: 243.8 mm Depth: 304.8 mm |
