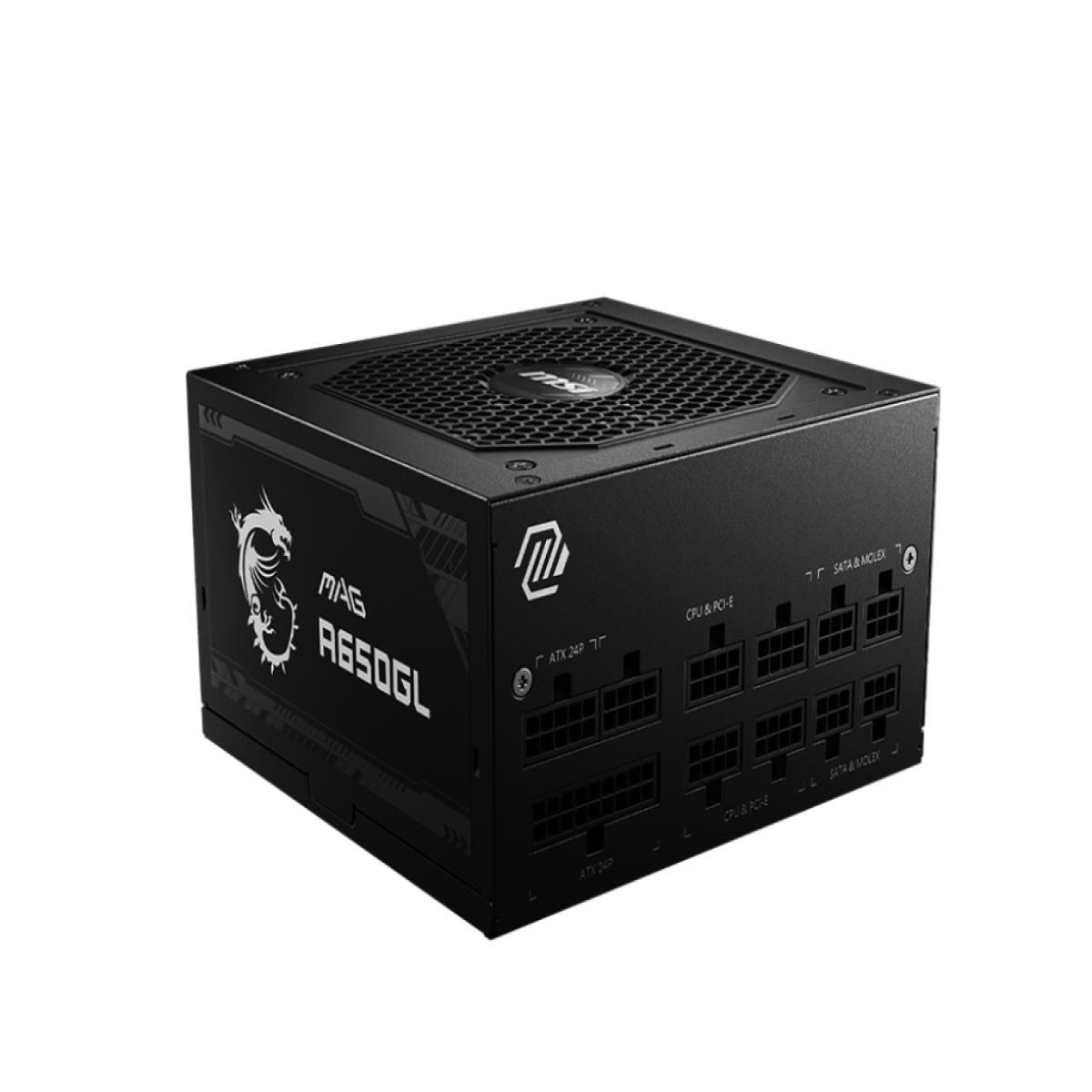

MSI MAG A650GL power supply unit 650 W 20+4 pin ATX ATX Black
£67.02
MSI MAG A650GL, 650 W, 100 - 240 V, 10 A, 5 A, Active, 100 W
out of stock
SKU: MAG A650GL
MSI MAG A650GL. Total power: 650 W, AC input voltage: 100 - 240 V, Maximum input current (@110V): 10 A. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
| Weight | 1.95kg |
|---|---|
| Brand | MSI |
| Total power | 650 W |
| Number of SATA power connectors | 6 |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | ATX |
| Specifications | Power Total power: 650 W AC input voltage: 100 - 240 V Maximum input current (@110V): 10 A Maximum input current (@220V): 5 A Power Factor Correction (PFC) type: Active Combined power (+3.3V): 100 W Combined power (+12V): 648 W Combined power (+5V): 100 W Combined power (-12V): 3.6 W Combined power (+5Vsb): 12.5 W Max output current (+3.3V): 20 A Max output current (+12V): 54 A Max output current (+5V): 20 A Max output current (-12V): 0.3 A Max output current (+5Vsb): 20 A Efficiency: 90% Power protection features: Over current, Over power, Over voltage, Short circuit Ports & interfaces Motherboard power connector: 20+4 pin ATX Number of SATA power connectors: 6 Peripheral (Molex) power connectors (4-pin): 4 EPS power connector (8-pin): No EPS power connector (4+4 pin): Yes PCI Express power connectors (6+2 pin): 4 CPU power connector (4+4 pin): Yes ATX Power connector (24-pin): No ATX power connector (20+4 pin): Yes Floppy disk drive connector: No PCI Express connector: Yes Cabling type: Fully-Modular Performance 80 PLUS certification: 80 PLUS Bronze Purpose: PC Power supply unit (PSU) form factor: ATX Design Product colour: Black Cooling type: Active Fan diameter: 12 cm Number of fans: 1 fan(s) Illumination: No On/off switch: Yes Weight & dimensions Width: 150 mm Depth: 140 mm Height: 86 mm Logistics data Harmonized System (HS) code: 84733020 |
