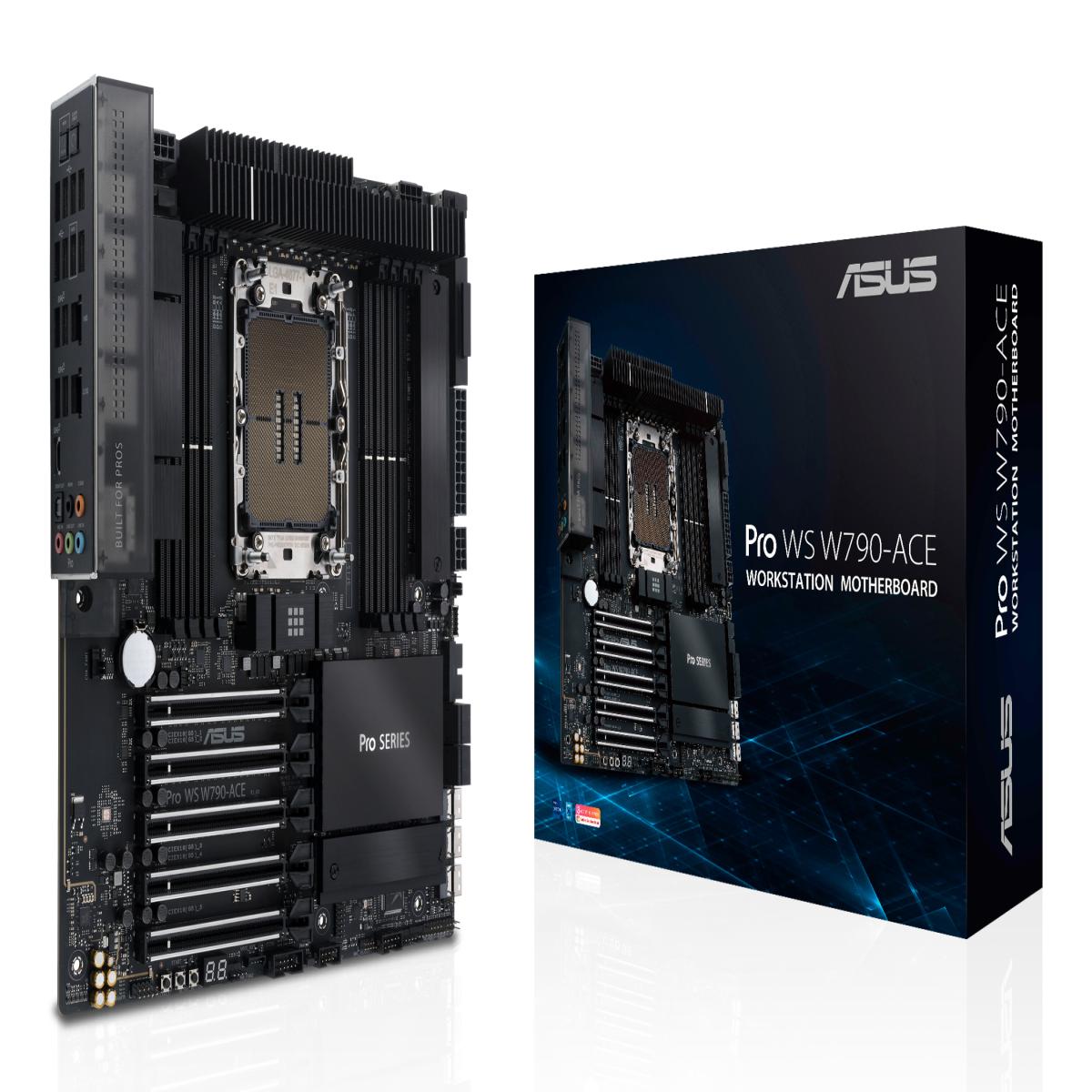

ASUS PRO WS W790-ACE Intel W790 LGA 4677 (Socket E) SSI CEB
£772.12
ASUS PRO WS W790-ACE, Intel, LGA 4677 (Socket E), Intel Xeon W, W-3400, W-2400, DDR5-SDRAM, 2 TB
36 in stock
SKU: 90MB1C70-M0EAY0
ASUS PRO WS W790-ACE. Processor manufacturer: Intel, Processor socket: LGA 4677 (Socket E), Compatible processor series: Intel Xeon W. Supported memory types: DDR5-SDRAM, Maximum internal memory: 2 TB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet. Component for: Workstation, Motherboard form factor: SSI CEB, Motherboard chipset family: Intel
- Intel LGA 4677 (Socket E) Intel Xeon W
- Workstation SSI CEB Intel W790 Realtek S1220A 7.1 channels
- DDR5-SDRAM 8 DIMM Maximum internal memory: 2 TB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
- BIOS type: UEFI AMI 512 Mbit Clear CMOS button
- 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
| Weight | 3.52kg |
|---|---|
| Brand | ASUS |
| Processor socket | LGA 4677 (Socket E) |
| Supported memory types | DDR5-SDRAM |
| Motherboard chipset | Intel W790 |
| Motherboard form factor | SSI CEB |
| Specifications | Processor Processor manufacturer: Intel Processor socket: LGA 4677 (Socket E) Compatible processor series: Intel Xeon W Intel Xeon series: W-3400, W-2400 Memory Supported memory types: DDR5-SDRAM Number of memory slots: 8 Memory slots type: DIMM Memory channels: Quad-channel ECC сompatibility: ECC Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz Maximum internal memory: 2 TB Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, SATA III Number of HDDs supported: 4 Number of storage drives supported: 6 RAID support: Yes RAID levels: 0, 1, 5, 10 Graphics On-board graphics card: No Internal I/O USB 2.0 connectors: 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1 USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1 Number of SATA III connectors: 4 Front panel audio connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes Number of chassis fan connectors: 5 EPS power connector (8-pin): Yes Number of COM connectors: 1 TPM connector: Yes 12V power connector: Yes Rear panel I/O ports USB 2.0 ports quantity: 8 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4 USB 3.2 Gen 2x2 Type-C ports quantity: 1 Ethernet LAN (RJ-45) ports: 2 Headphone outputs: 1 Microphone in: Yes S/PDIF out port: Yes Network Ethernet LAN: Yes Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet Wi-Fi: No Top Wi-Fi standard: Not available Features Motherboard chipset: Intel W790 Audio chip: Realtek S1220A Audio output channels: 7.1 channels Product colour: Black Component for: Workstation Motherboard form factor: SSI CEB Motherboard chipset family: Intel Windows operating systems supported: Windows 10 x64, Windows 11 Expansion slots PCI Express x16 (Gen 5.x) slots: 5 Number of M.2 (M) slots: 2 BIOS BIOS type: UEFI AMI BIOS memory size: 512 Mbit Clear CMOS button: Yes Packaging data Package width: 370 mm Package depth: 312 mm Package height: 108 mm Package weight: 3.52 kg Weight & dimensions Width: 305 mm Depth: 277 mm Height: 50 mm Other features Weight: 1.81 kg |
