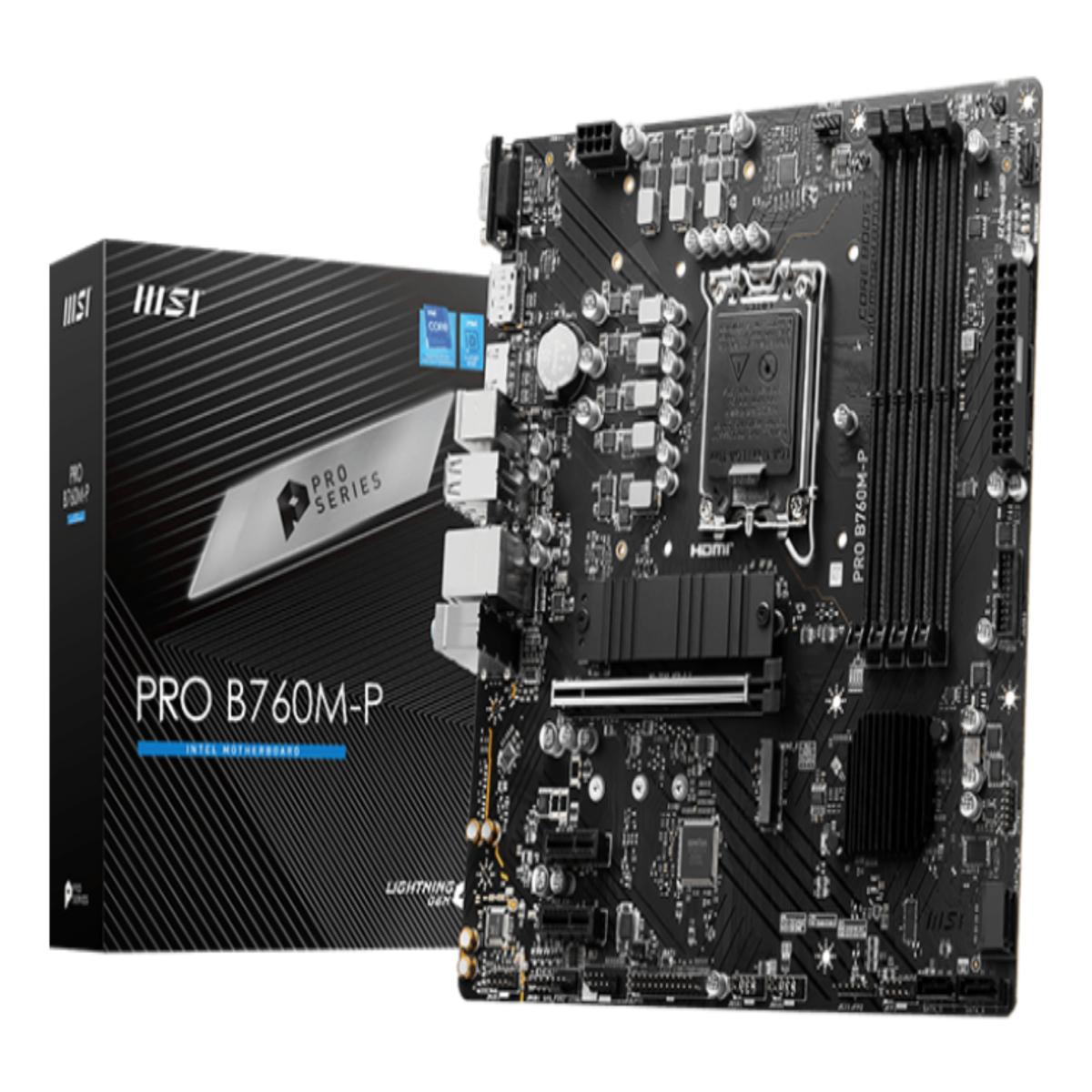

MSI PRO B760M-P motherboard Intel B760 LGA 1700 micro ATX
£95.21
MSI PRO B760M-P, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, DDR5-SDRAM, 192 GB
58 in stock
SKU: PRO B760M-P
MSI PRO B760M-P. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, ECC сompatibility: Non-ECC. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
| Weight | 0.03kg |
|---|---|
| Brand | MSI |
| Processor socket | LGA 1700 |
| Supported memory types | DDR5-SDRAM |
| Motherboard chipset | Intel B760 |
| Motherboard form factor | micro ATX |
| Specifications | Processor Processor manufacturer: Intel Processor socket: LGA 1700 Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold Supported processor sockets: LGA 1700 Memory Supported memory types: DDR5-SDRAM Number of memory slots: 4 ECC сompatibility: Non-ECC Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz Maximum internal memory: 192 GB Unbuffered memory: Yes Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: SATA III Number of HDDs supported: 4 Number of storage drives supported: 6 RAID support: Yes RAID levels: 0, 1, 5, 10 Internal I/O USB 2.0 connectors: 4 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2 Number of SATA III connectors: 4 Front panel audio connector: Yes Front panel connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes Chassis intrusion connector: Yes Number of COM connectors: 1 TPM connector: Yes Parallel connector: Yes RGB LED pin header: Yes Rear panel I/O ports USB 2.0 ports quantity: 4 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1 Ethernet LAN (RJ-45) ports: 1 PS/2 ports quantity: 2 VGA (D-Sub) ports quantity: 1 HDMI ports quantity: 1 HDMI version: 1.4 DisplayPorts quantity: 1 DisplayPort version: 1.4 Headphone outputs: 1 Line-in: Yes Microphone in: Yes Network Ethernet LAN: Yes Ethernet interface type: Gigabit Ethernet LAN controller: Realtek RTL8111H Wi-Fi: No Top Wi-Fi standard: Not available Features Motherboard chipset: Intel B760 Audio chip: Realtek ALC897 Audio output channels: 7.1 channels Component for: PC Motherboard form factor: micro ATX Motherboard chipset family: Intel Power source type: ATX Windows operating systems supported: Windows 10 x64, Windows 11 x64 Expansion slots PCI Express x1 (Gen 4.x) slots: 2 PCI Express x16 (Gen 4.x) slots: 1 Number of M.2 (M) slots: 2 BIOS BIOS type: UEFI AMI BIOS memory size: 256 Mbit ACPI version: 6.4 Clear CMOS jumper: Yes System Management BIOS (SMBIOS) version: 3.5 Weight & dimensions Width: 243.8 mm Depth: 243.8 mm Packaging content Cables included: SATA |
