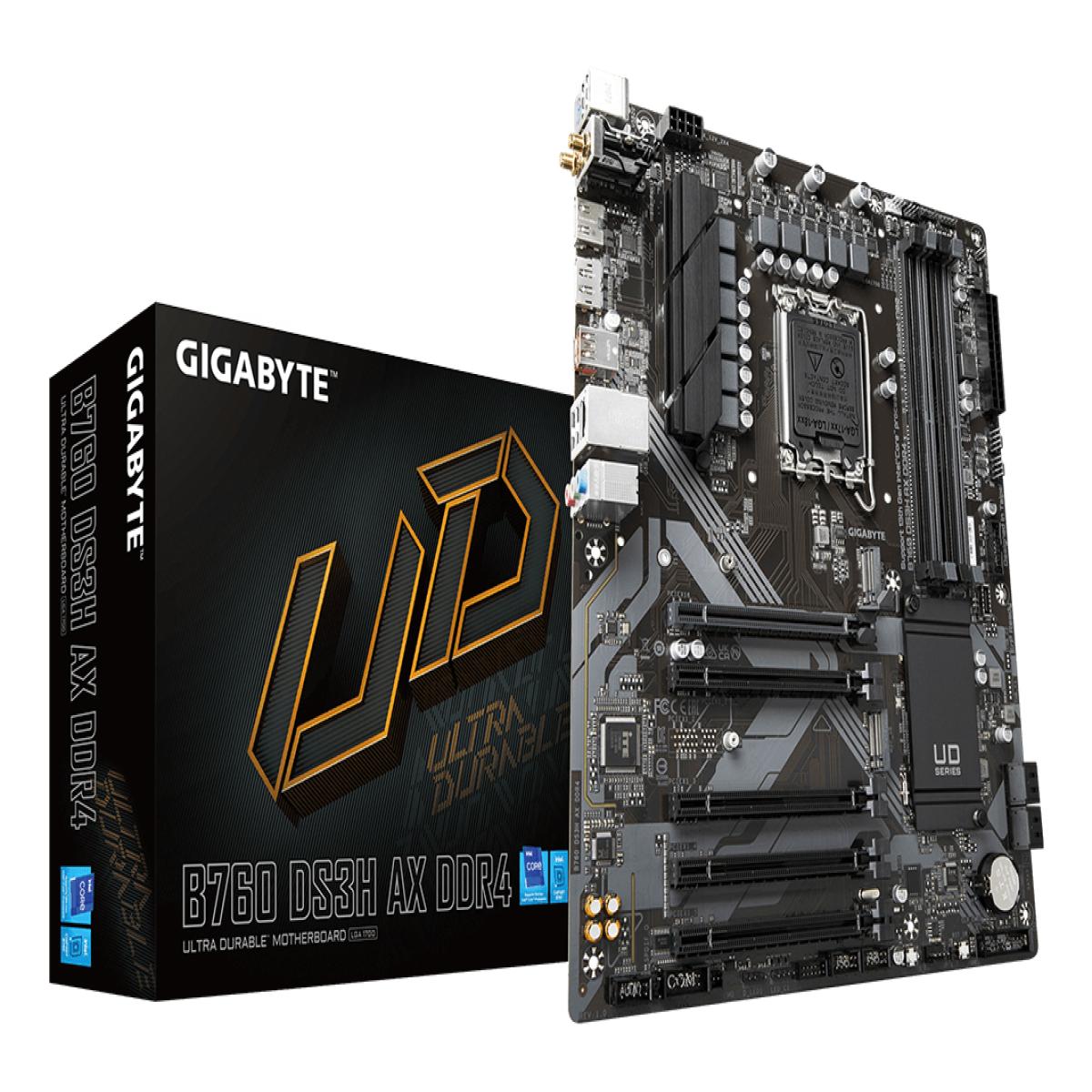

GIGABYTE B760 DS3H AX DDR4 Motherboard - Supports Intel Core 14th CPUs, 8+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, GbE LAN, USB 3.2 Gen 2
£104.19
out of stock
SKU: B760 DS3H AX DDR4
GIGABYTE B760 DS3H AX DDR4 Motherboard - Supports Intel Core 14th CPUs, 8+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, GbE LAN, USB 3.2 Gen 2, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR4-SDRAM, 128 GBGIGABYTE B760 DS3H AX DDR4 Motherboard - Supports Intel Core 14th CPUs, 8+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C
| Weight | 1.49kg |
|---|---|
| Brand | GIGABYTE |
| Processor socket | LGA 1700 |
| Supported memory types | DDR4-SDRAM |
| Motherboard chipset | Intel B760 Express |
| Motherboard form factor | ATX |
| Specifications | Processor Processor manufacturer: Intel Processor socket: LGA 1700 Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold Supported processor sockets: LGA 1700 Memory Supported memory types: DDR4-SDRAM Number of memory slots: 4 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: ECC & Non-ECC Supported memory clock speeds: 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz Supported memory clock speed (max): 5333 MHz Maximum internal memory: 128 GB Unbuffered memory: Yes Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III Number of HDDs supported: 4 Number of storage drives supported: 6 RAID support: Yes RAID levels: 0, 1, 5, 10 Graphics Parallel processing technology support: Not supported Maximum resolution: 4096 x 2304 pixels HDCP: Yes DirectX version: 12.0 Internal I/O USB 2.0 connectors: 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2 Number of SATA III connectors: 4 S/PDIF out connector: Yes Front panel audio connector: Yes Front panel connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes EPS power connector (8-pin): Yes TPM connector: Yes Serial port headers: 1 12V power connector: Yes RGB LED pin header: Yes Rear panel I/O ports USB 2.0 ports quantity: 4 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1 USB 3.2 Gen 2x2 Type-C ports quantity: 1 Ethernet LAN (RJ-45) ports: 1 PS/2 ports quantity: 1 HDMI ports quantity: 1 HDMI version: 2.0 DisplayPorts quantity: 1 DisplayPort version: 1.2 Headphone outputs: 3 Microphone in: Yes WiFi-AP antenna jack: 2 USB connector type: USB Type-A, USB Type-C Network Ethernet LAN: Yes Ethernet interface type: Gigabit Ethernet Wi-Fi: Yes Top Wi-Fi standard: Wi-Fi 6E (802.11ax) Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) WLAN controller model: RZ608 Bluetooth: Yes Bluetooth version: 5.2 Features Motherboard chipset: Intel B760 Express Audio output channels: 7.1 channels Product colour: Brown PC health monitoring: Fan, Temperature, Voltage, Water cooling Component for: PC Motherboard form factor: ATX Motherboard chipset family: Intel Windows operating systems supported: Windows 10 x64, Windows 11 x64 Expansion slots PCI Express x16 slots: 5 Number of M.2 (M) slots: 2 1st M.2 largest key size: 22110 1st M.2 highest PCI Express generation: 4.0 2nd M.2 largest key size: 2280 2nd M.2 highest PCI Express generation: 4.0 BIOS BIOS type: UEFI AMI BIOS memory size: 128 Mbit ACPI version: 5.0 Clear CMOS jumper: Yes Desktop Management Interface (DMI) version: 2.7 System Management BIOS (SMBIOS) version: 2.7 Logistics data Country of origin: China Products per shipping (inner) case: 1 pc(s) Battery Battery weight: 3 g Lithium weight per battery: 0.07 g Number of battery cells: 1 Battery technology: Lithium-Manganese Dioxide (LiMnO2) Battery type: CR2032 Packaging data Package width: 335 mm Package depth: 270 mm Package height: 80 mm Package weight: 1.49 kg Weight & dimensions Width: 305 mm Depth: 244 mm Height: 35 mm Packaging content Cables included: SATA Batteries included: Yes Bundled software: Norton Internet Security Technical details Warranty period: 3 year(s) |
