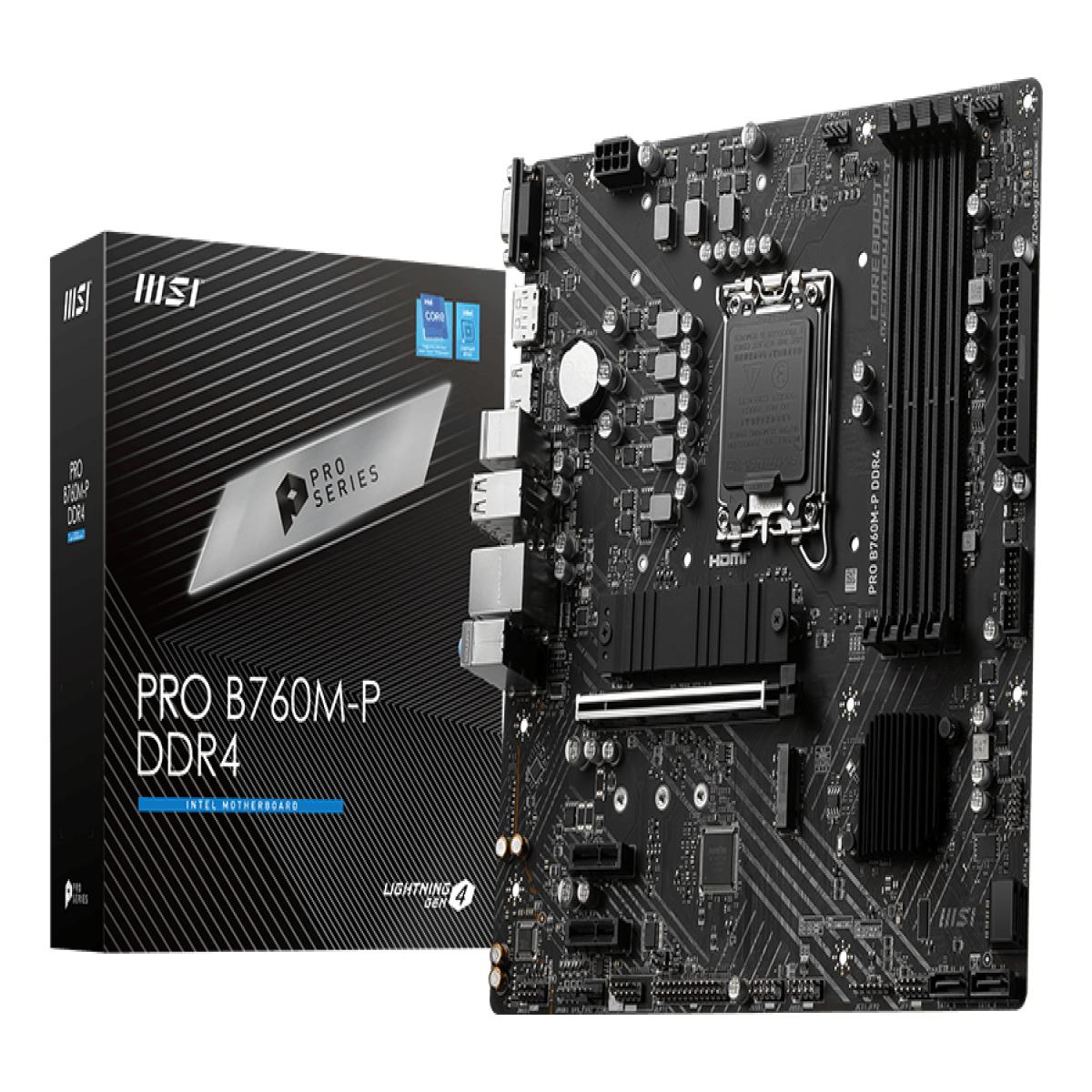

MSI PRO B760M-P DDR4 motherboard Intel B760 LGA 1700 micro ATX
£84.84
out of stock
SKU: PRO B760M-P DDR4
BUSINESS ELEGANCEThe PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.M.2 Shield FrozrStrengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.Chipset HeatsinkThe chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.CONTROL IN ONE CLICKMSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.FROZR AI COOLINGDetecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.AUTO DETECT YOUR FANMSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.LIGHTNING GEN 4 PCI-EDoubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.REINFORCED,HEAVY SOLDERED CONNECTIONSSecure to the motherboard with extra solder points and support the weight of heavy graphics cards.FAST AND FUTURE-READY STORAGEMSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
E&OE
- Intel LGA 1700 Intel® Celeron®, Intel® Pentium® Gold
- PC micro ATX Intel B760 Realtek ALC897 7.1 channels
- DDR4-SDRAM 4 DIMM Maximum internal memory: 128 GB
- M.2, SATA III RAID support Number of storage drives supported: 6
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet
| Weight | 9.00kg |
|---|---|
| Brand | MSI |
| Processor socket | LGA 1700 |
| Supported memory types | DDR4-SDRAM |
| Motherboard chipset | Intel B760 |
| Motherboard form factor | micro ATX |
| Specifications | Processor Processor manufacturer: Intel Processor socket: LGA 1700 Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold Maximum number of SMP processors: 1 Supported processor sockets: LGA 1700 Memory Supported memory types: DDR4-SDRAM Number of memory slots: 4 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: Non-ECC Supported memory clock speeds: 4800, 4600, 4400, 4266, 4200, 4000, 3800, 3733, 3600, 3466, 3400, 3333, 3200, 2933, 2666, 2400, 2133 MHz Supported memory clock speed (max): 4800 MHz Maximum internal memory: 128 GB Storage controllers Supported storage drive interfaces: M.2, SATA III Number of storage drives supported: 6 RAID support: Yes RAID levels: 0, 1, 5, 10 Graphics On-board graphics card: No Internal I/O USB 2.0 connectors: 4 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2 Number of SATA III connectors: 4 Front panel audio connector: Yes Front panel connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes TPM connector: Yes RGB LED pin header: Yes Rear panel I/O ports USB 2.0 ports quantity: 4 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1 Ethernet LAN (RJ-45) ports: 1 HDMI ports quantity: 1 HDMI version: 1.4 DisplayPorts quantity: 1 DisplayPort version: 1.4 Network Ethernet LAN: Yes Ethernet interface type: 2.5 Gigabit Ethernet Wi-Fi: No Top Wi-Fi standard: Not available Features Motherboard chipset: Intel B760 Audio chip: Realtek ALC897 Audio output channels: 7.1 channels Product colour: Black Component for: PC Motherboard form factor: micro ATX Motherboard chipset family: Intel Power source type: ATX Windows operating systems supported: Windows 10, Windows 11 Expansion slots PCI Express x1 (Gen 3.x) slots: 2 PCI Express x16 slots: 2 PCI Express x16 (Gen 4.x) slots: 1 Number of M.2 (M) slots: 2 BIOS BIOS type: UEFI AMI BIOS memory size: 256 Mbit System Management BIOS (SMBIOS) version: 3.5 Weight & dimensions Width: 243.8 mm Depth: 243.8 mm |
