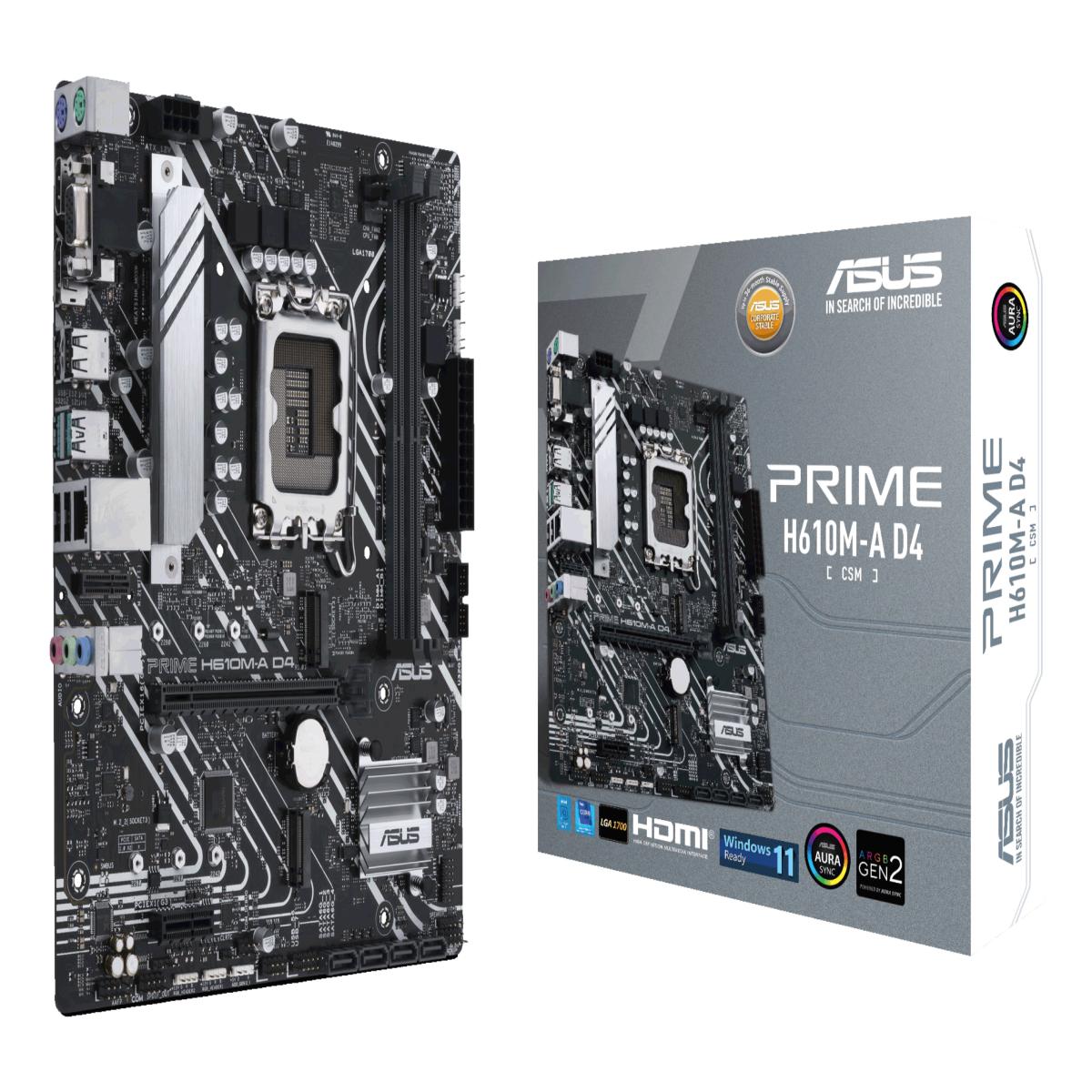

ASUS PRIME H610M-A D4-CSM Intel H610 LGA 1700 micro ATX
£77.31
ASUS PRIME H610M-A D4-CSM, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, DDR4-SDRAM, LPDDR3-SDRAM, 64 GB, DIMM
257 in stock
SKU: 90MB19P0-M0EAYC
ASUS PRIME H610M-A D4-CSM. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Supported memory types: DDR4-SDRAM, LPDDR3-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
| Weight | 0.38kg |
|---|---|
| Brand | ASUS |
| Processor socket | LGA 1700 |
| Supported memory types | LPDDR3-SDRAM |
| Motherboard chipset | Intel H610 |
| Motherboard form factor | micro ATX |
| Specifications | Processor Processor manufacturer: Intel Processor socket: LGA 1700 Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Maximum number of SMP processors: 1 Memory Supported memory types: DDR4-SDRAM, LPDDR3-SDRAM Number of memory slots: 2 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: Non-ECC Supported memory clock speeds: 2133,2400,2666,2800,2933,3000,3200 MHz Maximum internal memory: 64 GB Unbuffered memory: Yes Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, SATA III Number of storage drives supported: 6 Internal I/O USB 2.0 connectors: 1 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1 Number of SATA III connectors: 4 S/PDIF out connector: Yes Front panel audio connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes Number of chassis fan connectors: 2 Number of COM connectors: 1 TPM connector: Yes 12V power connector: Yes RGB LED pin header: Yes Rear panel I/O ports USB 2.0 ports quantity: 4 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2 Ethernet LAN (RJ-45) ports: 1 PS/2 ports quantity: 2 VGA (D-Sub) ports quantity: 1 HDMI ports quantity: 1 HDMI version: 2.1 DisplayPorts quantity: 1 DisplayPort version: 1.4 Network Ethernet LAN: Yes Ethernet interface type: Gigabit Ethernet Wake-on-LAN ready: Yes Wi-Fi: No Top Wi-Fi standard: Not available Features Motherboard chipset: Intel H610 Audio output channels: 7.1 channels Component for: PC Motherboard form factor: micro ATX Motherboard chipset family: Intel Windows operating systems supported: Windows 10 x64, Windows 11 x64 Expansion slots PCI Express x1 (Gen 3.x) slots: 1 PCI Express x16 (Gen 4.x) slots: 1 Number of M.2 (M) slots: 2 BIOS BIOS type: UEFI AMI BIOS memory size: 128 Mbit Logistics data Harmonized System (HS) code: 84733020 Weight & dimensions Width: 244 mm Depth: 211 mm Height: 221 mm Packaging content Cables included: SATA Other features Weight: 382 g |
