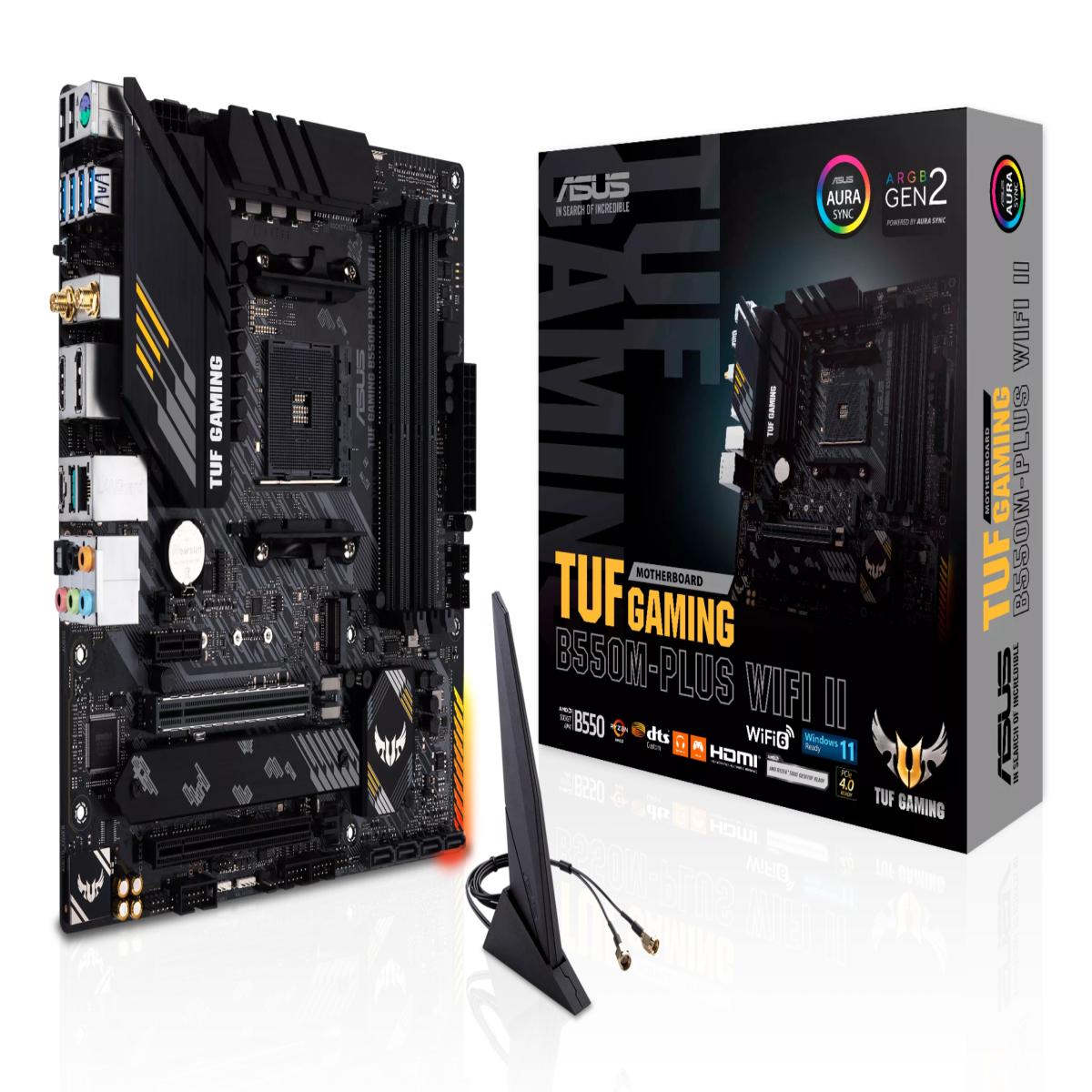

ASUS TUF GAMING B550M-PLUS WIFI II AMD B550 Socket AM4 micro ATX
£128.12
ASUS TUF GAMING B550M-PLUS WIFI II, AMD, Socket AM4, AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, Socket AM4, DDR4-SDRAM, 128 GB
out of stock
SKU: 90MB19Y0-M0EAY0
ASUS TUF GAMING B550M-PLUS WIFI II. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 3840 x 2160 pixels. USB connector type: USB Type-A, USB Type-C
| Weight | 0.85kg |
|---|---|
| Brand | ASUS |
| Processor socket | Socket AM4 |
| Supported memory types | DDR4-SDRAM |
| Motherboard chipset | AMD B550 |
| Motherboard form factor | micro ATX |
| Specifications | Processor Processor manufacturer: AMD Processor socket: Socket AM4 Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series Supported processor sockets: Socket AM4 Memory Supported memory types: DDR4-SDRAM Number of memory slots: 4 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: ECC Supported memory clock speeds: 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4200,4266,4333,4400,4466,4600,4800,4866 MHz Maximum internal memory: 128 GB Unbuffered memory: Yes Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III Number of storage drives supported: 6 RAID support: Yes RAID levels: 0, 1, 10 Graphics Parallel processing technology support: Not supported Maximum resolution: 3840 x 2160 pixels Internal I/O USB 2.0 connectors: 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1 Number of SATA III connectors: 4 Front panel audio connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes Number of chassis fan connectors: 2 EPS power connector (8-pin): Yes Number of COM connectors: 1 TPM connector: Yes 12V power connector: Yes RGB LED pin header: Yes Rear panel I/O ports USB 2.0 ports quantity: 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1 Ethernet LAN (RJ-45) ports: 1 PS/2 ports quantity: 1 HDMI ports quantity: 1 HDMI version: 2.1 DisplayPorts quantity: 1 DisplayPort version: 1.2 Headphone outputs: 5 Microphone in: Yes S/PDIF out port: Yes WiFi-AP antenna jack: 1 USB connector type: USB Type-A, USB Type-C Network Ethernet LAN: Yes Ethernet interface type: 2.5 Gigabit Ethernet Wake-on-LAN ready: Yes Wi-Fi: Yes Top Wi-Fi standard: Wi-Fi 6 (802.11ax) Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) Bluetooth: Yes Bluetooth version: 5.2 Features Motherboard chipset: AMD B550 Audio output channels: 7.1 channels Component for: PC Motherboard form factor: micro ATX Motherboard chipset family: AMD Windows operating systems supported: Windows 10 x64, Windows 11 Expansion slots PCI Express x1 (Gen 3.x) slots: 1 PCI Express x16 (Gen 3.x) slots: 1 PCI Express x16 (Gen 4.x) slots: 1 Number of M.2 (M) slots: 2 BIOS BIOS type: UEFI AMI BIOS memory size: 256 Mbit Clear CMOS jumper: Yes Logistics data Harmonized System (HS) code: 84733020 Weight & dimensions Width: 244 mm Depth: 244 mm Height: 67 mm Packaging content Cables included: SATA Drivers included: Yes Other features Weight: 845 g |
