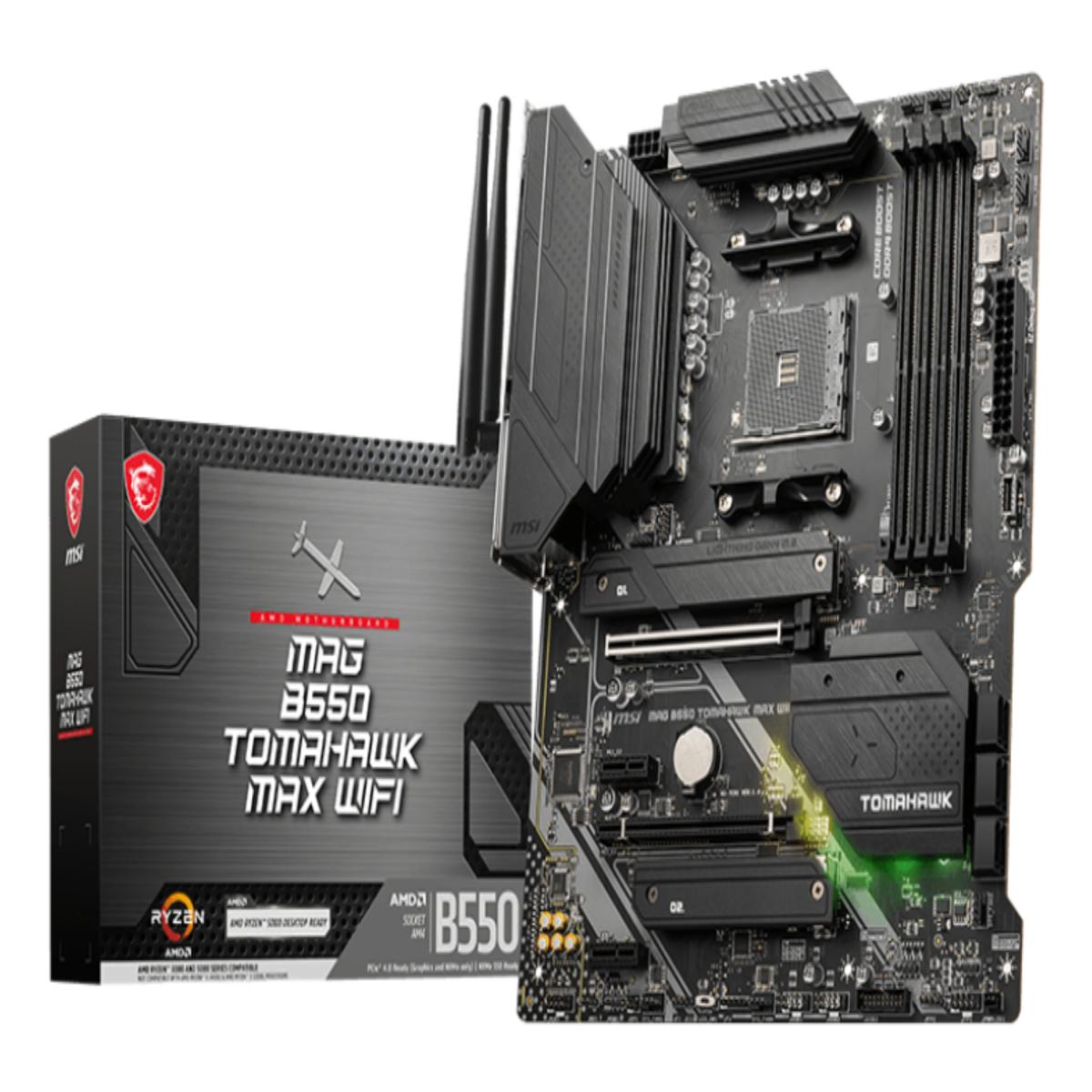

MSI MAG B550 TOMAHAWK MAX WIFI AMD B550 Socket AM4 ATX
£140.91
out of stock
SKU: MAG B550 TOMAHAWK MAX WIFI
Conquer the BattlefieldThe MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCEWith more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.LIGHTNING GEN 4 M.2Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.HIGH-BANDWIDTH AND LOW-LATENCY NETWORK2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
E&OE
- AMD Socket AM4 AMD Ryzen 3000 Series
- PC ATX AMD B550 Realtek ALC1200 7.1 channels
- DDR4-SDRAM 4 DIMM Maximum internal memory: 128 GB
- HDD & SSD SATA III
- 2-Way CrossFireX 16000
- Clear CMOS jumper
- 2.5 Gigabit Ethernet, Gigabit Ethernet
| Weight | 0.29kg |
|---|---|
| Brand | MSI |
| Processor socket | Socket AM4 |
| Supported memory types | DDR4-SDRAM |
| Motherboard chipset | AMD B550 |
| Motherboard form factor | ATX |
| Specifications | Processor Processor manufacturer: AMD Processor socket: Socket AM4 Compatible processor series: AMD Ryzen 3000 Series Maximum number of SMP processors: 1 Supported processor sockets: Socket AM4 Memory Supported memory types: DDR4-SDRAM Number of memory slots: 4 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: ECC & Non-ECC Supported memory clock speeds: 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4533,4600,4733,5100 MHz Maximum internal memory: 128 GB Unbuffered memory: Yes Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: SATA III RAID levels: 0, 1, 10 Graphics Maximum graphics card memory: 16000 MB Parallel processing technology support: 2-Way CrossFireX Maximum resolution: 4096 x 2160 pixels Internal I/O USB 2.0 connectors: 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1 Number of SATA III connectors: 6 Front panel audio connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes Number of chassis fan connectors: 6 Chassis intrusion connector: Yes TPM connector: Yes 12V power connector: Yes RGB LED pin header: Yes Rear panel I/O ports USB 2.0 ports quantity: 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1 Ethernet LAN (RJ-45) ports: 2 PS/2 ports quantity: 1 HDMI ports quantity: 1 DisplayPorts quantity: 1 S/PDIF out port: Yes Digital audio optical out: 1 Network Ethernet LAN: Yes Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet LAN controller: Realtek RTL8111H, Realtek RTL8125B Wi-Fi: No Features Motherboard chipset: AMD B550 Audio chip: Realtek ALC1200 Audio output channels: 7.1 channels Component for: PC Motherboard form factor: ATX Motherboard chipset family: AMD Number of mounting holes: 9 Windows operating systems supported: Windows 10 x64 Expansion slots PCI Express x1 (Gen 3.x) slots: 2 PCI Express x16 (Gen 3.x) slots: 1 PCI Express x16 (Gen 4.x) slots: 1 Number of M.2 (M) slots: 2 BIOS Clear CMOS jumper: Yes Weight & dimensions Width: 305 mm Depth: 244 mm Packaging content Cables included: SATA Drivers included: Yes |
