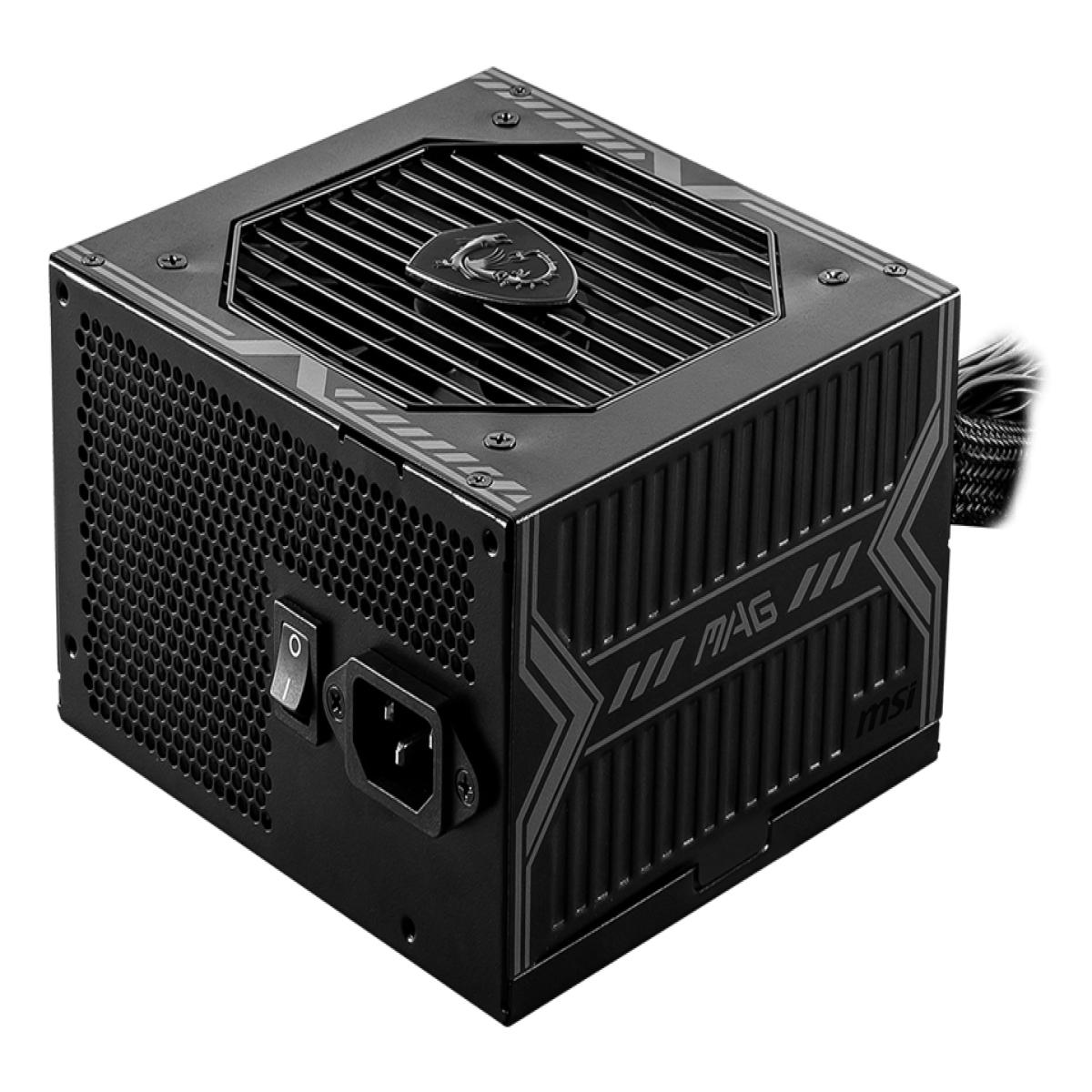

MSI MAG A550BN UK PSU '550W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'
£43.61
MSI MAG A550BN UK PSU '550W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black', 550 W, 100 - 240 V, 50 - 60 Hz, 8 A, 4 A, Active
out of stock
SKU: MAG A550BN
MSI MAG A550BN UK PSU '550W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'. Total power: 550 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
| Weight | 0.32kg |
|---|---|
| Brand | MSI |
| Total power | 550 W |
| Number of SATA power connectors | 5 |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | ATX |
| Specifications | Power Total power: 550 W AC input voltage: 100 - 240 V AC input frequency: 50 - 60 Hz Maximum input current (@110V): 8 A Maximum input current (@220V): 4 A Power Factor Correction (PFC) type: Active Combined power (+3.3V): 110 W Combined power (+12V): 546 W Combined power (+5V): 110 W Combined power (-12V): 3.6 W Combined power (+5Vsb): 12.5 W Max output current (+3.3V): 20 A Max output current (+12V): 45.5 A Max output current (+5V): 20 A Max output current (-12V): 0.3 A Max output current (+5Vsb): 2.5 A Efficiency: 85% Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit Ports & interfaces Motherboard power connector: 20+4 pin ATX Motherboard power cable length: 60 cm Number of SATA power connectors: 5 Peripheral (Molex) power connectors (4-pin): 2 EPS power connector (8-pin): No EPS power connector (4+4 pin): Yes PCI Express power connectors (6+2 pin): 2 CPU power connector (4+4 pin): Yes ATX Power connector (24-pin): No ATX power connector (20+4 pin): No Floppy drive power connector: 1 Floppy disk drive connector: Yes PCI Express connector: Yes Cabling type: Non-Modular Performance 80 PLUS certification: 80 PLUS Bronze Purpose: PC Power supply unit (PSU) form factor: ATX Design Product colour: Black Cooling type: Active Fan diameter: 12 cm Number of fans: 1 fan(s) Illumination: No On/off switch: Yes Weight & dimensions Width: 150 mm Depth: 140 mm Height: 86 mm Logistics data Harmonized System (HS) code: 84733020 |
