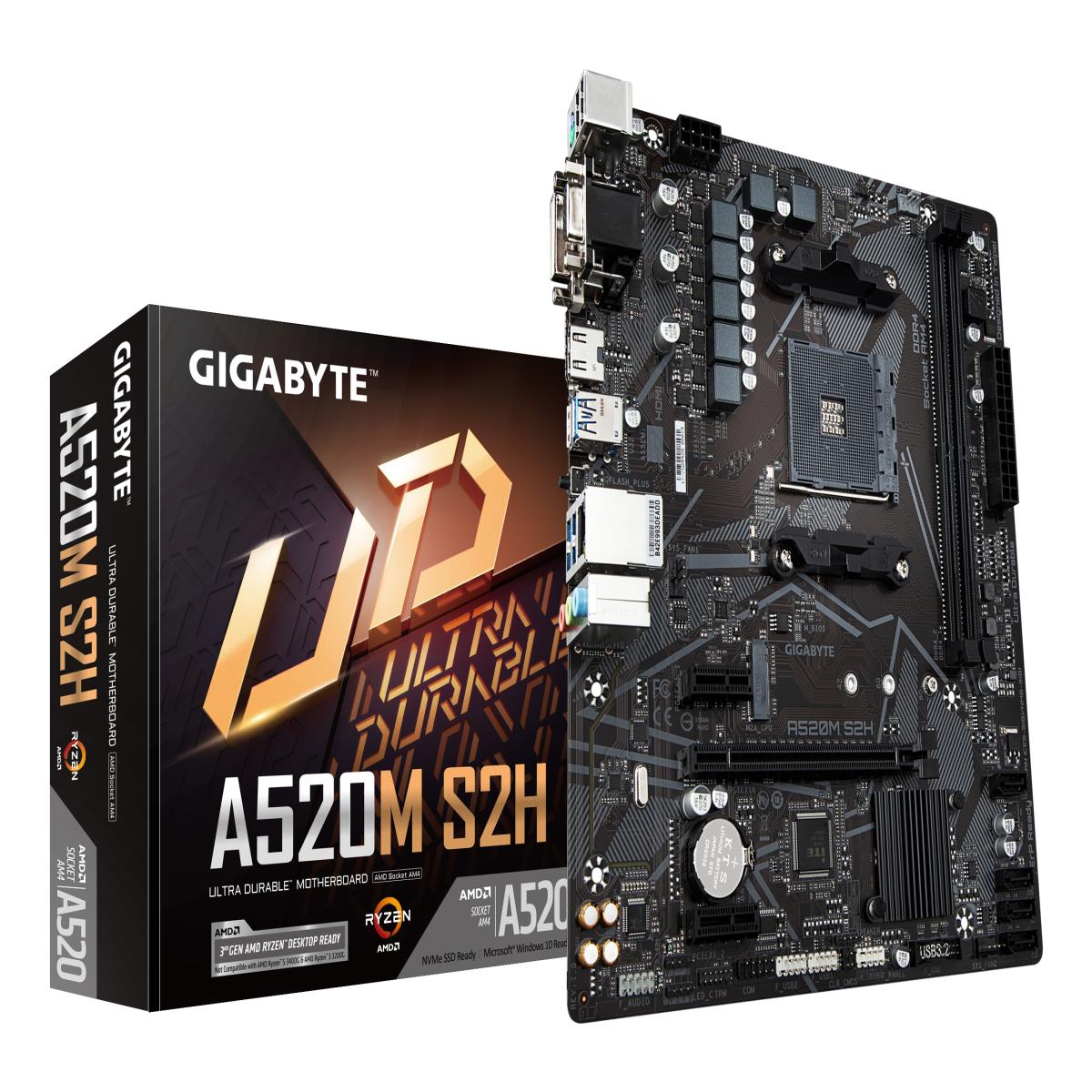

GIGABYTE A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
£57.36
GIGABYTE A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1, AMD, Socket AM4, AMD Ryzen 3000 Series, Socket AM4, 64 GB, DDR4-SDRAM
96 in stock
SKU: A520M S2H
GIGABYTE A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA, RAID levels: 0, 1, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
| Weight | 0.74kg |
|---|---|
| Brand | GIGABYTE |
| Processor socket | Socket AM4 |
| Supported memory types | DDR4-SDRAM |
| Motherboard chipset | AMD A520 |
| Motherboard form factor | micro ATX |
| Specifications | Processor Processor manufacturer: AMD Processor socket: Socket AM4 Compatible processor series: AMD Ryzen 3000 Series Maximum number of SMP processors: 1 Supported processor sockets: Socket AM4 Maximum internal memory supported by processor: 64 GB Memory Supported memory types: DDR4-SDRAM Number of memory slots: 2 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: ECC & Non-ECC Supported memory clock speeds: 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000 MHz Maximum internal memory: 64 GB Storage controllers Supported storage drive interfaces: M.2, PCI Express 3.0, SATA RAID support: Yes RAID levels: 0, 1, 10 Graphics On-board graphics card: No HDCP: Yes Internal I/O USB 2.0 connectors: 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1 Number of SATA III connectors: 4 ATX Power connector (24-pin): Yes Power fan connector: Yes CPU fan connector: Yes Number of chassis fan connectors: 2 RGB LED pin header: Yes Rear panel I/O ports USB 2.0 ports quantity: 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4 Ethernet LAN (RJ-45) ports: 1 PS/2 ports quantity: 1 VGA (D-Sub) ports quantity: 1 HDMI ports quantity: 1 DVI-D ports quantity: 1 Network Ethernet LAN: Yes Ethernet interface type: Gigabit Ethernet Wi-Fi: No Features Motherboard chipset: AMD A520 Audio output channels: 7.1 channels Product colour: Black Component for: PC Motherboard form factor: micro ATX Motherboard chipset family: AMD Expansion slots PCI Express x1 (Gen 3.x) slots: 2 PCI Express x16 (Gen 3.x) slots: 1 Number of M.2 (M) slots: 1 BIOS BIOS type: UEFI AMI BIOS memory size: 128 Mbit ACPI version: 5.0 Clear CMOS jumper: Yes Clear CMOS button: Yes Desktop Management Interface (DMI) version: 2.7 System Management BIOS (SMBIOS) version: 2.7 Logistics data Country of origin: China Products per shipping (inner) case: 1 pc(s) Harmonized System (HS) code: 84733020 Battery Battery weight: 3 g Lithium weight per battery: 0.07 g Number of battery cells: 1 Battery technology: Lithium-Manganese Dioxide (LiMnO2) Battery type: CR2032 Packaging data Package width: 265 mm Package depth: 235 mm Package height: 52 mm Package weight: 740 g Weight & dimensions Width: 244 mm Depth: 205 mm Height: 35 mm Packaging content Batteries included: Yes Technical details Warranty period: 3 year(s) |
