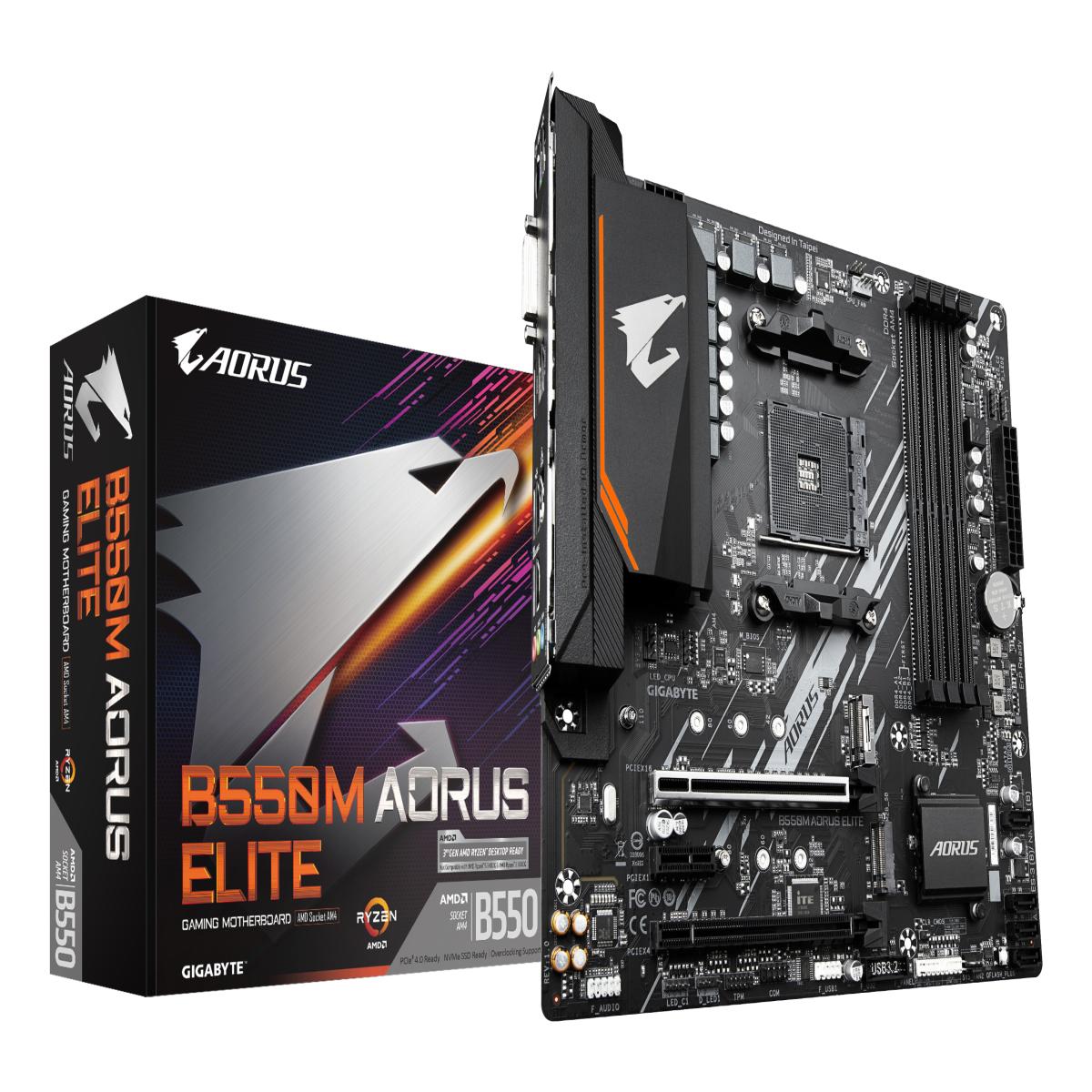

GIGABYTE B550M AORUS ELITE Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1
£79.73
150 in stock
SKU: B550M AORUS ELITE
GIGABYTE B550M AORUS ELITE Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1, AMD, Socket AM4, AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series, Socket AM4, DDR4-SDRAM, 128 GBGIGABYTE B550M AORUS ELITE Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
| Weight | 1.27kg |
|---|---|
| Brand | GIGABYTE |
| Processor socket | Socket AM4 |
| Supported memory types | DDR4-SDRAM |
| Motherboard chipset | AMD B550 |
| Motherboard form factor | micro ATX |
| Specifications | Processor Processor manufacturer: AMD Processor socket: Socket AM4 Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series Maximum number of SMP processors: 1 Supported processor sockets: Socket AM4 Memory Supported memory types: DDR4-SDRAM Number of memory slots: 4 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: ECC & Non-ECC Supported memory clock speeds: 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz Supported memory clock speed (max): 4733 MHz Maximum internal memory: 128 GB Unbuffered memory: Yes Maximum internal memory per slot: 32 GB Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, SATA III Number of HDDs supported: 4 Number of storage drives supported: 6 RAID levels: 0, 1, 10 Graphics Parallel processing technology support: Not supported Maximum resolution: 4096 x 2160 pixels HDCP: Yes DirectX version: 12.0 Internal I/O USB 2.0 connectors: 1 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1 Number of SATA III connectors: 4 Front panel audio connector: Yes Front panel connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes Number of CPU fan connectors: 1 Number of chassis fan connectors: 2 EPS power connector (8-pin): Yes Number of EPS power connectors (8-pin): 1 TPM connector: Yes Serial port headers: 1 12V power connector: Yes Number of water pump connectors: 2 RGB LED pin header: Yes Number of RGB LED pin headers: 5 Rear panel I/O ports USB 2.0 ports quantity: 4 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4 Ethernet LAN (RJ-45) ports: 1 PS/2 ports quantity: 1 HDMI ports quantity: 1 HDMI version: 2.1 DVI-D ports quantity: 1 Headphone outputs: 1 Line-in: Yes Microphone in: Yes Network Ethernet LAN: Yes Ethernet interface type: Gigabit Ethernet LAN controller: Realtek RTL8111H Wi-Fi: No Features Motherboard chipset: AMD B550 Audio chip: Realtek ALC897 Audio output channels: 7.1 channels Product colour: Brown PC health monitoring: Fan, Temperature, Voltage Component for: PC Motherboard form factor: micro ATX Motherboard chipset family: AMD Cooling type: Passive Power source type: ATX Windows operating systems supported: Windows 10 x64, Windows 11 x64 Expansion slots PCI Express x1 (Gen 3.x) slots: 1 PCI Express x16 (Gen 3.x) slots: 1 PCI Express x16 (Gen 4.x) slots: 1 Number of M.2 (M) slots: 2 1st M.2 largest key size: 22110 1st M.2 highest PCI Express generation: 4.0 2nd M.2 largest key size: 2280 2nd M.2 highest PCI Express generation: 3.0 BIOS BIOS type: UEFI AMI BIOS memory size: 128 Mbit ACPI version: 5.0 Clear CMOS jumper: Yes Desktop Management Interface (DMI) version: 2.7 System Management BIOS (SMBIOS) version: 2.7 Logistics data Country of origin: China Products per shipping (inner) case: 1 pc(s) Harmonized System (HS) code: 84733020 Battery Battery weight: 3 g Lithium weight per battery: 0.07 g Number of battery cells: 1 Battery technology: Lithium-Manganese Dioxide (LiMnO2) Battery type: CR2032 Packaging data Package width: 265 mm Package depth: 265 mm Package height: 65 mm Package weight: 1.27 kg Weight & dimensions Width: 244 mm Depth: 244 mm Height: 35 mm Packaging content Batteries included: Yes Screws included: Yes Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software Technical details Warranty period: 3 year(s) |
