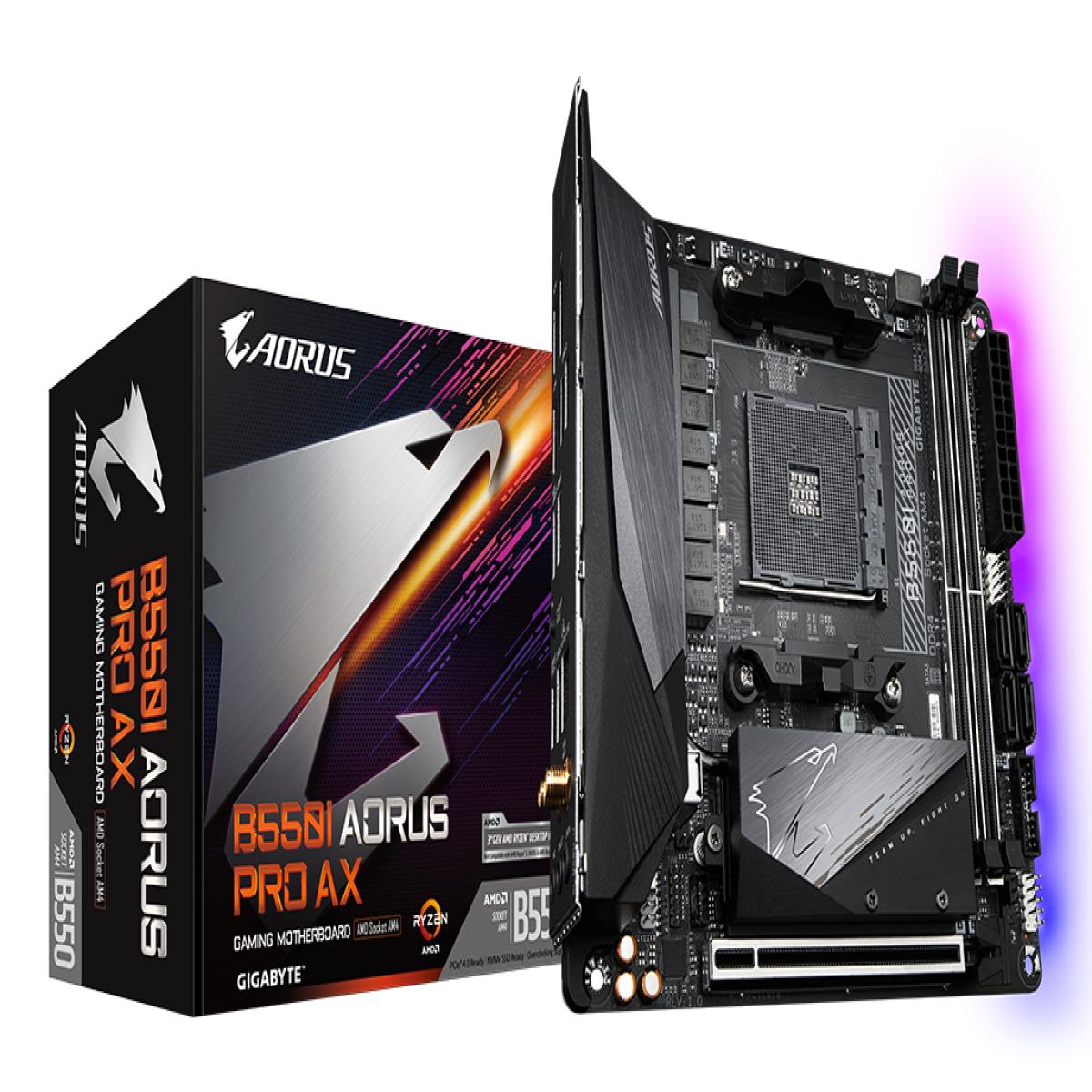

GIGABYTE B550I AORUS PRO AX Motherboard - AMD Ryzen 5000 CPUs, 8 Phases VRM, up to 5300MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
£133.5
out of stock
SKU: B550I AORUS PRO AX
GIGABYTE B550I AORUS PRO AX Motherboard - AMD Ryzen 5000 CPUs, 8 Phases VRM, up to 5300MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2, AMD, Socket AM4, AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series, Socket AM4, DDR4-SDRAM, 64 GBGIGABYTE B550I AORUS PRO AX Motherboard - AMD Ryzen 5000 CPUs, 8 Phases VRM, up to 5300MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
| Weight | 1.40kg |
|---|---|
| Brand | GIGABYTE |
| Processor socket | Socket AM4 |
| Supported memory types | DDR4-SDRAM |
| Motherboard chipset | AMD B550 |
| Motherboard form factor | mini ITX |
| Specifications | Processor Processor manufacturer: AMD Processor socket: Socket AM4 Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series Maximum number of SMP processors: 1 Supported processor sockets: Socket AM4 Memory Supported memory types: DDR4-SDRAM Number of memory slots: 2 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: ECC & Non-ECC Supported memory clock speeds: 5300,5200,5100,4800,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz Supported memory clock speed (max): 5300 MHz Maximum internal memory: 64 GB Unbuffered memory: Yes Maximum internal memory per slot: 32 GB Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, SATA Number of HDDs supported: 4 Number of storage drives supported: 6 RAID support: Yes RAID levels: 0, 1, 10 Graphics Parallel processing technology support: Not supported Maximum resolution: 5120 x 2880 pixels HDCP: Yes DirectX version: 12.0 Number of displays supported: 3 Internal I/O USB 2.0 connectors: 1 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1 Number of SATA III connectors: 4 Front panel audio connector: Yes Front panel connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes Number of CPU fan connectors: 1 Number of chassis fan connectors: 2 EPS power connector (8-pin): Yes Number of EPS power connectors (8-pin): 1 TPM connector: Yes 12V power connector: Yes Number of water pump connectors: 2 RGB LED pin header: Yes Number of RGB LED pin headers: 2 Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1 Ethernet LAN (RJ-45) ports: 1 HDMI ports quantity: 2 HDMI version: 2.1 DisplayPorts quantity: 1 DisplayPort version: 1.4 Headphone outputs: 1 Line-in: Yes Microphone in: Yes WiFi-AP antenna jack: 2 Network Ethernet LAN: Yes Ethernet interface type: 2.5 Gigabit Ethernet LAN controller: Realtek RTL8125 Wi-Fi: Yes Top Wi-Fi standard: Wi-Fi 6E (802.11ax) Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) WLAN controller model: AMD RZ608 Bluetooth: Yes Bluetooth version: 5.3 Features Motherboard chipset: AMD B550 Audio chip: Realtek ALC1220-VB Audio output channels: 7.1 channels Product colour: Black PC health monitoring: Fan, Temperature, Voltage Component for: PC Motherboard form factor: mini ITX Motherboard chipset family: AMD Cooling type: Passive Power source type: ATX Windows operating systems supported: Windows 10 x64, Windows 11 x64 Expansion slots PCI Express x16 (Gen 4.x) slots: 1 Number of M.2 (M) slots: 2 1st M.2 largest key size: 2280 1st M.2 highest PCI Express generation: 4.0 2nd M.2 largest key size: 2280 2nd M.2 highest PCI Express generation: 3.0 BIOS BIOS type: UEFI AMI BIOS memory size: 128 Mbit ACPI version: 5.0 Clear CMOS jumper: Yes Desktop Management Interface (DMI) version: 2.7 System Management BIOS (SMBIOS) version: 2.7 Logistics data Country of origin: Taiwan Products per shipping (inner) case: 1 pc(s) Harmonized System (HS) code: 84733020 Battery Battery weight: 3 g Lithium weight per battery: 0.07 g Number of battery cells: 1 Battery technology: Lithium-Manganese Dioxide (LiMnO2) Battery type: CR2032 Packaging data Package width: 265 mm Package depth: 235 mm Package height: 97 mm Package weight: 1.4 kg Weight & dimensions Width: 170 mm Depth: 170 mm Height: 35 mm Packaging content Batteries included: Yes Antenna included: Yes Screws included: Yes Bundled software: Norton® Internet Security (OEM version) XSplit Gamecaster + Broadcaster (12 months license) Realtek® 8125 Gaming LAN Bandwidth Control Utility Other features Weight: 790 g Technical details Warranty period: 3 year(s) |
