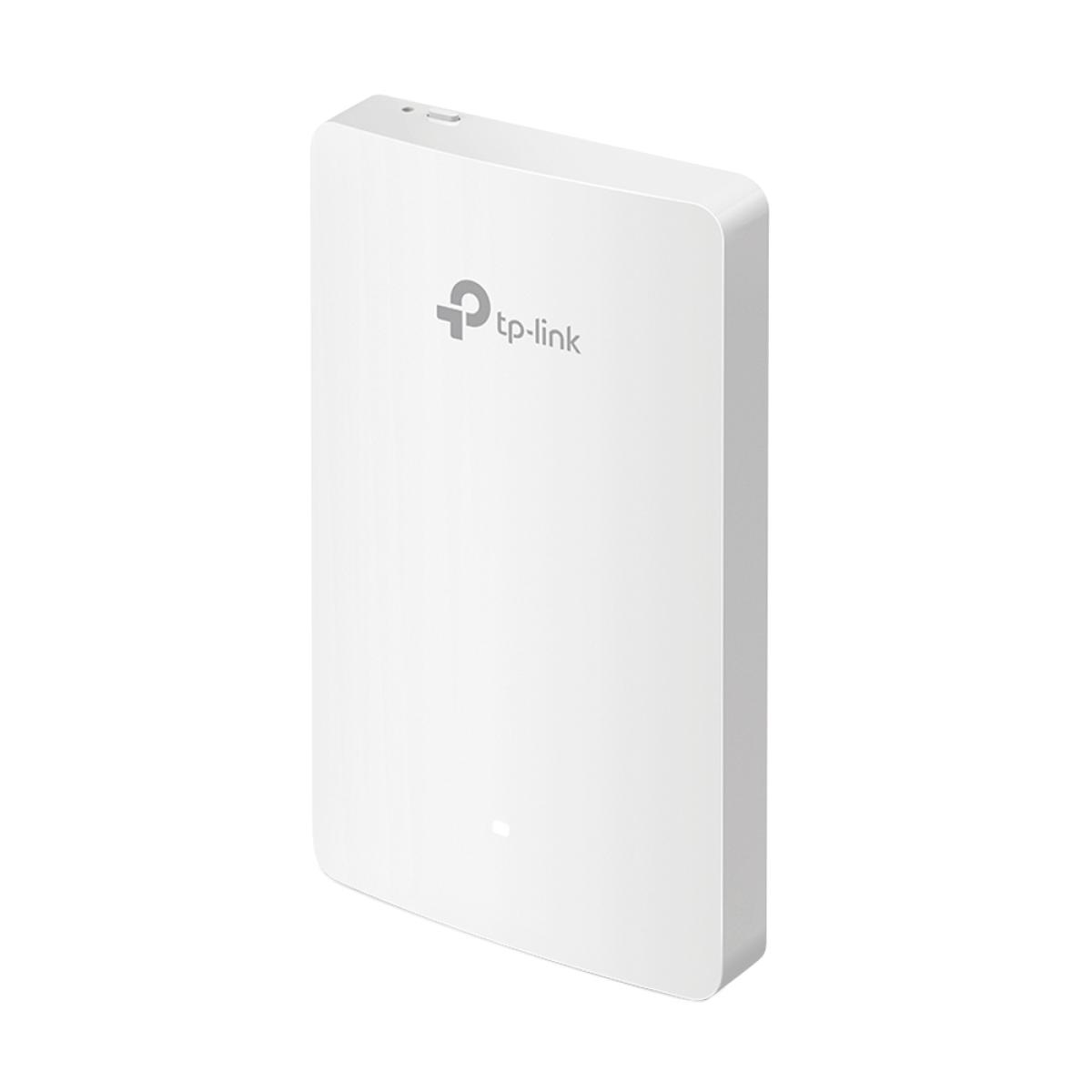

TP-Link Omada EAP235-Wall
£69.46
out of stock
SKU: EAP235-WALL
Dedicated Complete, Private Wi-Fi Network in Each RoomAn EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.MU-MIMO + Dual-Band: Connect Faster and More802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.Absolute Thinnest, Inconspicuous DesignThe thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.Effortless Deployment with PoE PoweredWith 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.Quick, Simplified InstallationEAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.Full Gigabit Ports to Bridge NetworkEquipped with four Gigabit data ports (1 uplink + 3 downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.Cloud Centralized Management Anytime, AnywhereOmada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.Easy Management with the Omada AppFollow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
E&OE
- 2.4 GHz 300 Mbit/s
- 5 GHz 867 Mbit/s
- Maximum data transfer rate: 1167 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
- 64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK
- Power over Ethernet (PoE)
- Antennas quantity: 2 Internal Integrated antenna
| Weight | 0.30kg |
|---|---|
| Brand | TP-Link |
| Specifications | Features 2.4 GHz: Yes 5 GHz: Yes 6 GHz: No Maximum data transfer rate: 1167 Mbit/s Maximum data transfer rate (2.4 GHz): 300 Mbit/s Maximum data transfer rate (5 GHz): 867 Mbit/s Ethernet LAN data rates: 10,100,1000 Mbit/s Frequency band: 2.4 - 5 GHz Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at Cabling technology: 10/100/1000Base-T(X) Automatic channel selection: Yes Automatic channel scanning: Yes MIMO: Yes MIMO type: Multi User MIMO Wi-Fi Multimedia (WMM)/(WME): Yes VLAN support: Yes Virtual LAN features: Port-based VLAN, VLAN mapping Rate limiting: Yes Wireless isolation: Yes Band steering: Yes Quality of Service (QoS) support: Yes BeamForming: Yes Transmitting power (CE): 20 - 23 dBm Transmitting power (FCC): 21 dBm Security Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK MAC address filtering: Yes Service Set Identifier (SSID) features: Multiple SSIDs Number of SSID supported: 16 Remote Authentication Dial-In User Service (RADIUS): Yes Access Control List (ACL): Yes Protocols Universal Plug and Play (UPnP): Yes Management features Web-based management: Yes Syslog: Yes Ports & interfaces Ethernet LAN (RJ-45) ports: 4 WAN connection: Ethernet (RJ-45) Power Power over Ethernet (PoE): Yes Power over Ethernet (PoE) type supported: Active PoE, Passive PoE Power consumption (typical): 24.4 W Design Placement: Wall Product colour: White Cable lock slot: Yes Reset button: Yes LED indicators: LAN, Power, Status, WAN, WLAN Antenna Antenna type: Internal Antenna features: Integrated antenna Antennas quantity: 2 Antenna gain level (max): 4 dBi Performance Compatible operating systems: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 Certificates Compliance certificates: CE, Federal Communications Commission (FCC), RoHS Weight & dimensions Width: 143 mm Depth: 86 mm Height: 20 mm Packaging data Package width: 117 mm Package depth: 184 mm Package height: 33 mm Package weight: 300 g Package type: Box Packaging content Quantity per pack: 1 pc(s) Mounting kit: Yes Quick start guide: Yes Operational conditions Operating relative humidity (H-H): 10 - 90% Operating temperature (T-T): 0 - 40 °C Storage temperature (T-T): -40 - 70 °C Storage relative humidity (H-H): 5 - 90% Sustainability Sustainability compliance: Yes Logistics data Harmonized System (HS) code: 85176990 |
