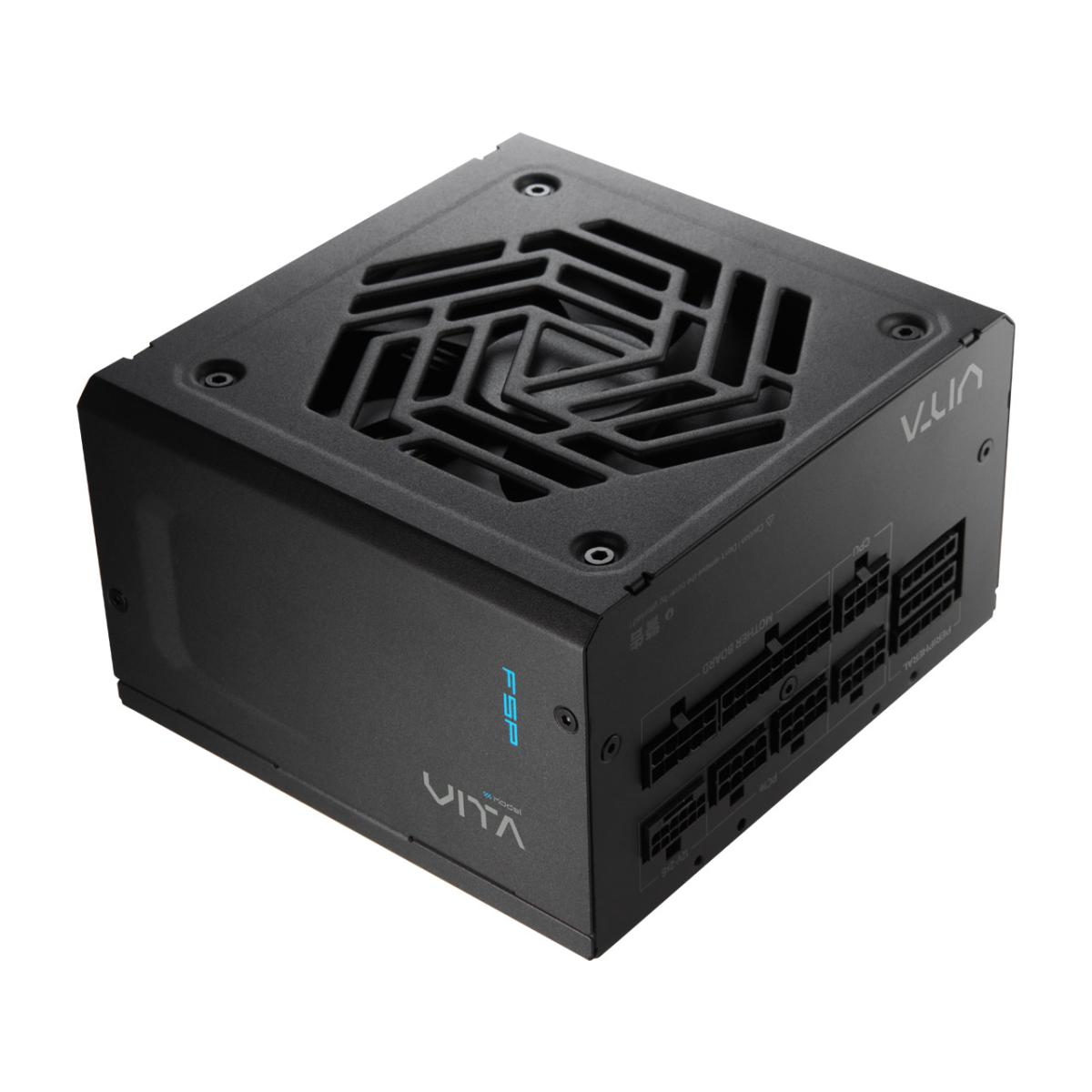

FSP VITA-1000GM power supply unit 1000 W 20+4 pin ATX ATX
£125.79
out of stock
SKU: VITA-1000GM
Complies with Intel ® Power Design Guide ATX 3.1Built for the demanding power requirements of tomorrow, these PSUs offer maximum total power excursion support as per ATX 3.1 and PCIe Gen 5.1 specifications, ensuring peak performance with future hardware upgrades.High Efficiency in Gold-certifiedCertified by world-class organizations 80 PLUS® gold certifications and reach platinum efficiency at typical load for lower power loss, less heat, and quieter operation.LLC Resonant-converter Topology with Synchronous RectifierReducing switching losses, boosting efficiency, and keeping the output voltage regulated under load conditions.+5V & 3.3V DC to DC Circuit DesignIncrease the efficiency and stabilize the output voltage to ensure system stability.105°C Japanese Bulk CapacitorEquip your PC with the best-in-class capacitors to offer maximize reliability, performance, and lasting power.120 mm hydraulic bearing (HYB) fanQuality bearing keeps fan noise to a minimum while providing maximum cooling performance.Powerhouse Single +12V RailThis high-amperage +12V rail delivers high load capabilities, it’s ideal for intensive workloads of high-performance CPUs and graphics cards.The Force Comes with YouIndividual CPU 4+4 pin cables provide CPU direct output power to ensure stable operation even under the most demanding workloads.The Force Comes with YouDual PCIe 6+2Pin cables and a versatile 12V-2x6 cable offer flexible configuration for even the most power-hungry NVIDIA or AMD graphics cards.Fully Modular Cabling DesignTo make power supply installation easy and allows users to use only the needed cables, improving airflow and reducing system clutter.Compact PSU Size：140 x 150 x 86mm140mm in length which is relatively shorter than industry standard, it’s ideal for compact PC or space-constraint environment without compromising on performance.Fortress-level ProtectionOur comprehensive circuit shields your valuable components from harm.
E&OE
- 1000 W 100 - 240 V 50/60 Hz
- Motherboard power connector: 20+4 pin ATX
- PC ATX 80 PLUS Gold
- 12 cm
| Weight | 7.90kg |
|---|---|
| Brand | FSP |
| Total power | 1000 W |
| Number of SATA power connectors | 4 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Specifications | Power Total power: 1000 W AC input voltage: 100 - 240 V AC input frequency: 50/60 Hz Input current: 12 - 6 A Power factor: 0.9 Combined power (+3.3V): 100 W Combined power (+12V): 1000 W Combined power (+5V): 100 W Combined power (-12V): 3.6 W Combined power (+5Vsb): 15 W Max output current (+3.3V): 20 A Max output current (+12V): 83.33 A Max output current (+5V): 20 A Max output current (-12V): 0.3 A Max output current (+5Vsb): 3 A Efficiency: 90% Power protection features: No load operation, Over current, Over power, Over total voltage, Over voltage, Short circuit, Surge & inrush protection (SIP), Under voltage Ports & interfaces Motherboard power connector: 20+4 pin ATX Number of SATA power connectors: 4 Peripheral (Molex) power connectors (4-pin): 4 PCI Express power connectors (6+2 pin): 4 PCI Express power connectors (12+4 pin): 1 CPU power connector (4+4 pin): Yes Cabling type: Fully-Modular Performance 80 PLUS certification: 80 PLUS Gold Purpose: PC Power supply unit (PSU) form factor: ATX ATX version: 3.1 Design Fan diameter: 12 cm Packaging content Cables included: CPU, PCIe, Peripheral (Molex), SATA Weight & dimensions Width: 150 mm Depth: 140 mm Height: 86 mm |
