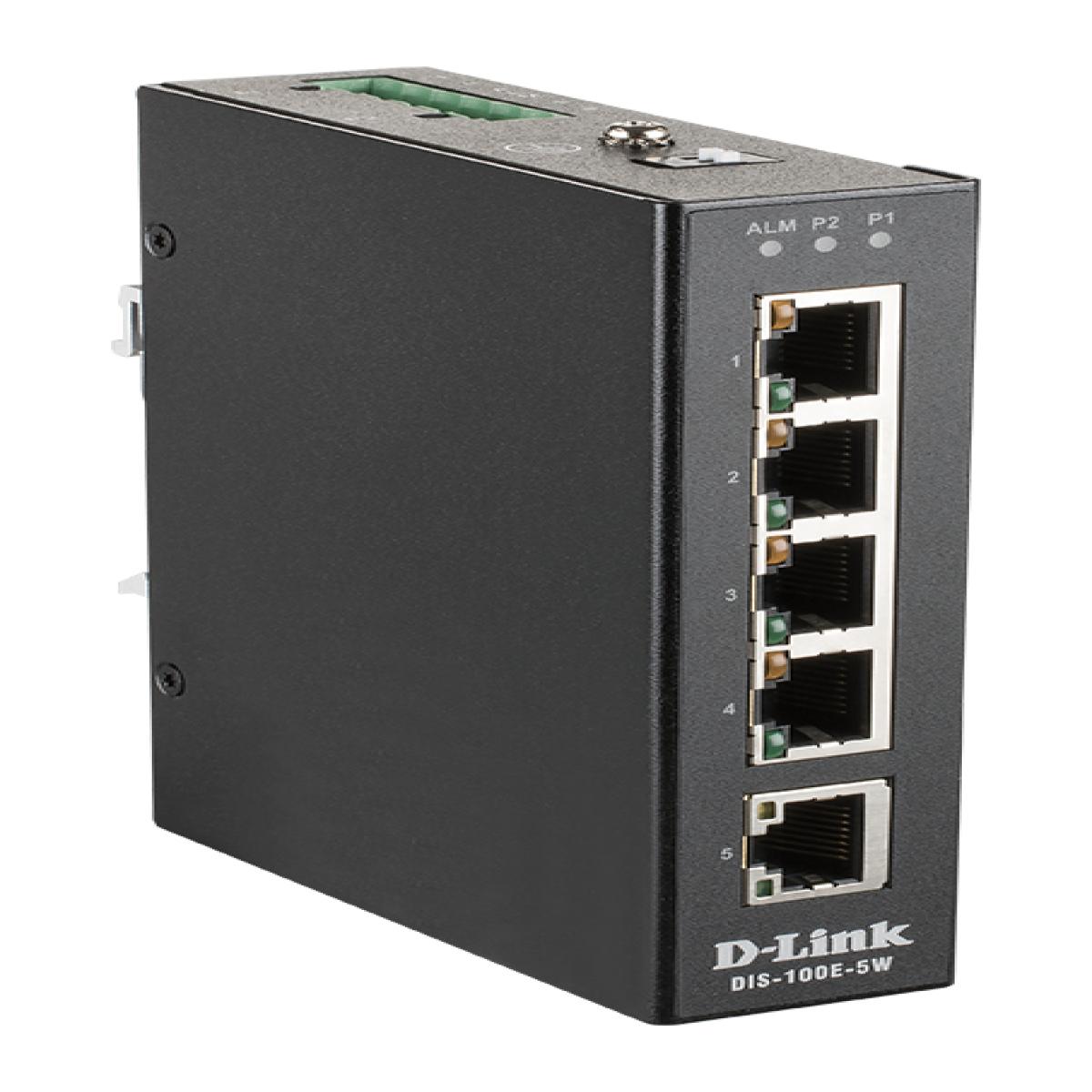

D-Link 5-Port Unmanaged Industrial Switch with 5 x 10/100 BaseT(X) ports
£77.56
D-Link 5-Port Unmanaged Industrial Switch with 5 x 10/100 BaseT(X) ports, Unmanaged, L2, Fast Ethernet (10/100), Full duplex, Rack mounting, Wall mountable
2 in stock
SKU: DIS-100E-5W
D-Link 5-Port Unmanaged Industrial Switch with 5 x 10/100 BaseT(X) ports. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 1000 entries. Networking standards: IEEE 802.3x. DC input voltage: 12 - 58 V. Wall mountable, Rack mounting
| Weight | 0.49kg |
|---|---|
| Brand | D-Link |
| Specifications | Management features Switch type: Unmanaged Switch layer: L2 Ports & interfaces Basic switching RJ-45 Ethernet ports quantity: 5 Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100) Relay outputs: 1 Network Networking standards: IEEE 802.3x 10G support: No Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 100BASE-T Full duplex: Yes Flow control support: Yes Broadcast storm control: Yes Auto MDI/MDI-X: Yes Auto-negotiation: Yes Data transmission MAC address table: 1000 entries Store-and-forward: Yes Design Rack mounting: Yes Stackable: Yes Product colour: Black International Protection (IP) code: IP30 Wall mountable: Yes DIN rail mounting: Yes Performance Plug and Play: Yes Mean time between failures (MTBF): 219000 h Power DC input voltage: 12 - 58 V Power consumption (typical): 0.95 W Power consumption (max): 1.56 W Power over Ethernet (PoE) Power over Ethernet (PoE): No Operational conditions Operating temperature (T-T): -40 - 75 °C Storage temperature (T-T): -40 - 85 °C Operating relative humidity (H-H): 5 - 95% Weight & dimensions Width: 29.1 mm Depth: 89.4 mm Height: 109.2 mm Weight: 320 g Packaging data Package width: 140 mm Package depth: 178 mm Package height: 83 mm Package weight: 488 g Technical details Shipping (inner) case height: 20 cm Shipping (inner) case width: 30.5 cm Shipping (inner) case length: 43 cm Shipping (inner) case net weight: 5.78 kg Products per shipping (inner) case: 10 pc(s) Pallet gross weight (air): 226.4 kg Master (outer) cases per pallet (air): 36 pc(s) Products per pallet (air): 360 pc(s) Pallet gross length: 120 cm Pallet gross width: 110 cm Pallet height (air): 135 cm Pallet gross weight (sea): 330.7 kg Master (outer) cases per pallet (sea): 54 pc(s) Products per pallet (sea): 540 pc(s) Pallet height (sea): 195 cm Shipping (inner) case gross weight: 5.79 kg Certificates Certification: UL 60950‑1 CE FCC Logistics data Harmonized System (HS) code: 85176990 |
