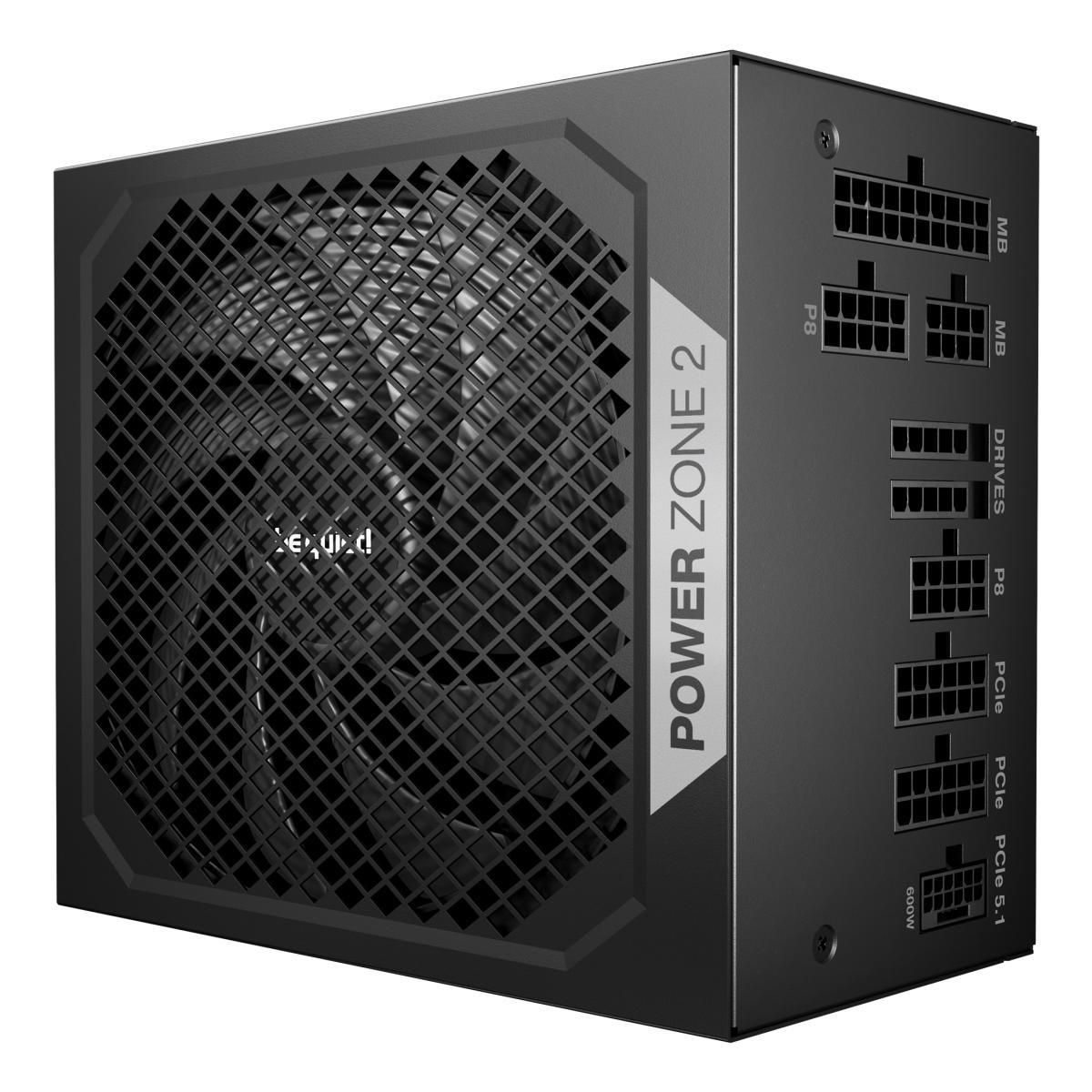

be quiet! POWER ZONE 2 1000W power supply unit 20+4 pin ATX ATX Black
£128.62
be quiet! POWER ZONE 2 1000W, 1000 W, 100 - 240 V, 1070 W, 50/60 Hz, 13 A, 6.5 A
out of stock
SKU: BP008EU
be quiet! POWER ZONE 2 1000W. Total power: 1000 W, AC input voltage: 100 - 240 V, Peak power: 1070 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 550,700,850,1000 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
| Weight | 3.28kg |
|---|---|
| Brand | be quiet! |
| Total power | 1000 W |
| Number of SATA power connectors | 7 |
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply unit (PSU) form factor | ATX |
| Specifications | Power Total power: 1000 W Peak power: 1070 W AC input voltage: 100 - 240 V AC input frequency: 50/60 Hz Maximum input current (@110V): 13 A Maximum input current (@220V): 6.5 A Power factor: 0.98 Number of +12V rail(s): 1 Combined power (+3.3V): 120 W Combined power (+12V): 999.6 W Combined power (+5V): 120 W Combined power (-12V): 6 W Combined power (+5Vsb): 15 W Max output current (+3.3V): 20 A Max output current (+12V): 83.3 A Max output current (+5V): 20 A Max output current (-12V): 0.5 A Max output current (+5Vsb): 3 A Hold time: 22.7 ms Efficiency: 92.6% Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage Ports & interfaces Motherboard power connector: 20+4 pin ATX Motherboard power cable length: 60 cm Number of SATA power connectors: 7 SATA power cable length: 550,700,850,1000 mm Peripheral (Molex) power connectors (4-pin): 1 Peripheral (Molex) power cable length: 1000 mm EPS power connector (8-pin): Yes PCI Express power connectors (6+2 pin): 3 PCI Express power connectors (16-pin): 1 PCI Express power cable length: 60 cm CPU P4 connector (4-pin): 1 CPU power connector (4+4 pin): Yes CPU power cable length: 70 cm PCI Express connector: Yes Cabling type: Fully-Modular Performance 80 PLUS certification: 80 PLUS Platinum Purpose: PC Power supply unit (PSU) form factor: ATX ATX version: 3.1 EPS version: 2.92 Noise level: 27.2 dB Bearing technology: Rifle Mean time between failures (MTBF): 100000 h Design Product colour: Black Cooling type: Active Fan diameter: 14 cm Number of fans: 1 fan(s) Illumination: No On/off switch: Yes Operational conditions Operating temperature (T-T): 0 - 40 °C Storage temperature (T-T): -40 - 70 °C Operating relative humidity (H-H): 0 - 85% Storage relative humidity (H-H): 0 - 95% Certificates Waste Electrical and Electronic Equipment (WEEE) compliance: Yes Compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE Weight & dimensions Width: 150 mm Depth: 160 mm Height: 86 mm Weight: 2.82 kg Packaging data Manual: Yes Manual languages: German, English, Spanish, French, Polish, Russian, Ukrainian Package width: 248 mm Package depth: 328 mm Package height: 102 mm Package weight: 3.28 kg Package type: Box Technical details Sustainability certificates: ENERGY STAR, ErP, Triman Logistics data Shipping (inner) case length: 65.1 cm Shipping (inner) case width: 28.2 cm Shipping (inner) case height: 34.6 cm Products per shipping (inner) case: 6 pc(s) Shipping (inner) case gross weight: 19.6 kg Other features Screws included: Yes Cable ties included: Yes |
