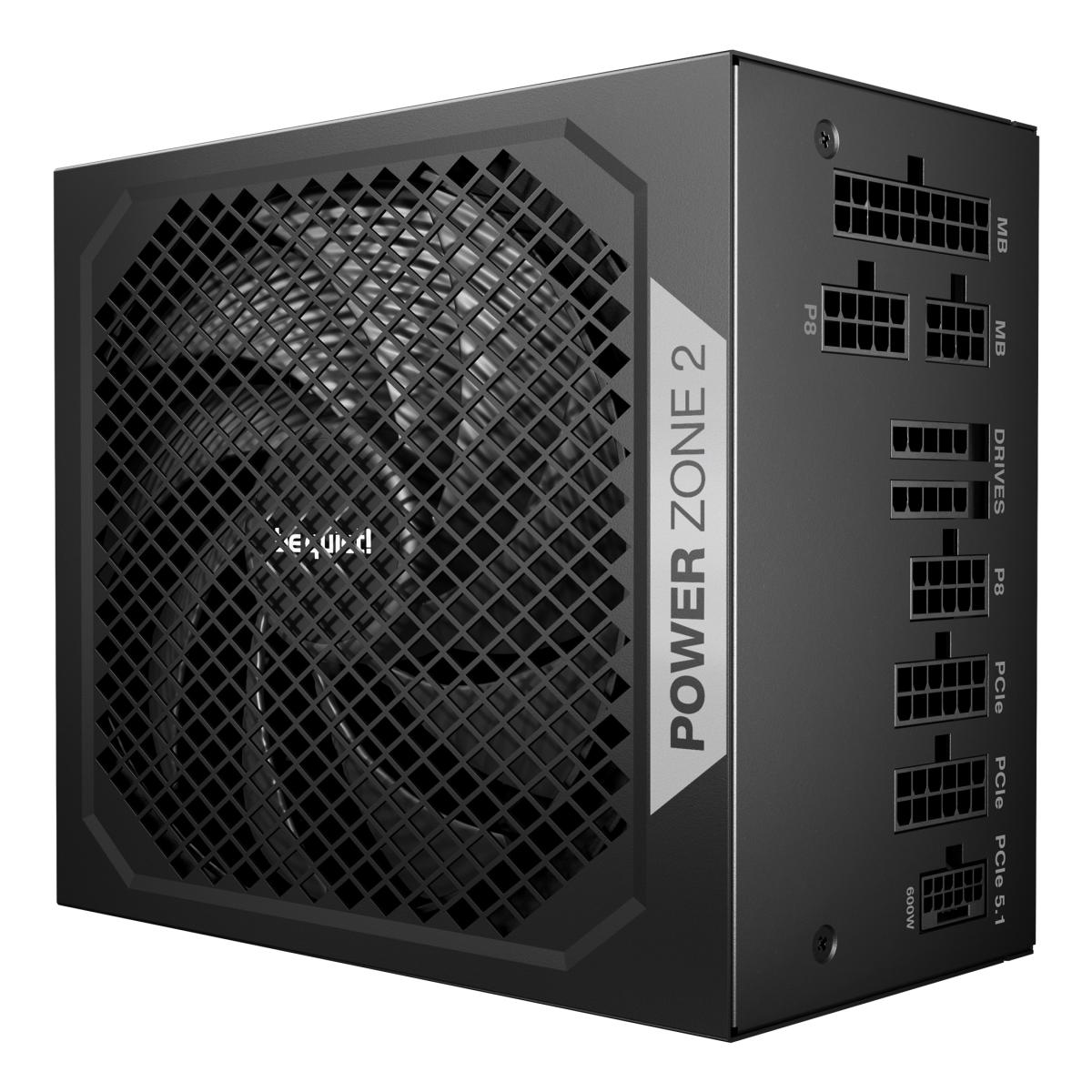

be quiet! POWER ZONE 2 750W power supply unit 20+4 pin ATX ATX Black
£90.89
18 in stock
SKU: BP006EU
Exceptional efficiency for GamersPower Zone 2 750W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions.PLATINUM CERTIFIEDHighly efficient operationPower Zone 2 750W is certified with 80 PLUS Platinum and Cybenetics Platinum, resulting in an energy efficiency rating of up to 94.2%. This results in lower power consumption, overall cooler and quieter operation, and many other benefits for your high-end system.SEMI-PASSIVE ZERO-RPM COOLINGEnjoy the silenceA large Pure Wings 3 140mm fan is keeping Power Zone 2 750W cool. While under low load, the fan turns off completely until its services are needed again for more demanding operations. This post-ventilation requires a short cooldown period of 2-5 minutes to avoid frequent and annoying starts and stops of the fan. Combined with the large fan for active cooling, this power supply is exceptionally silent in all load scenarios.PURE WINGS 3 FANSpecially designed for Power Zone 2No Power Supply is like the other. Hence, we have altered aspects of our renowned Pure Wings 3 140mm fan to make it the perfect match for Power Zone 2 750W. The fan offers outstanding reliability and makes for a long-lasting companion. Due to its large diameter, the fan cools the interior of the PSU efficiently and quietly.FUTURE-PROOF YOUR SYSTEMWith 90° angled 12V-2x6 connector in scope of deliveryPower Zone 2 750W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 3 PCIe 6+2-pin connectors for support of current-gen GPUs. A 90° angled 12V-2x6 connector in the scope of delivery leaves no doubt that this PSU is here to stay. All of this makes Power Zone 2 750W extremely versatile and the perfect choice for powerful systems of today and the ones to come.THE NEW STANDARD OF POWERFor massive transient loadsPower Zone 2 offers 750W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Power Zone 2 750W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.HIGH-CLASS TECHNOLOGIESAll packed in a stunning designWith its LLC topology, the Power Zone 2 750W offers best-in-class voltage regulation and efficiency. This makes it perfect for building very quiet systems or upgrading gaming and media creation PCs. The inner values are what everyone cares about most in a power supply but looks cannot be completely ignored. That is why the Power Zone 2 750W has a distinctive look with a newly designed mesh front. In addition, all cable designations are printed directly on the PSU’s case for a long-lasting impression and an unparalleled look and feel.
E&OE
- 750 W 100 - 240 V 50/60 Hz
- Motherboard power connector: 20+4 pin ATX
- PC ATX 80 PLUS Platinum
- Active 14 cm
- Black
| Weight | 3.21kg |
|---|---|
| Brand | be quiet! |
| Total power | 750 W |
| Number of SATA power connectors | 6 |
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply unit (PSU) form factor | ATX |
| Specifications | Power Total power: 750 W Peak power: 820 W AC input voltage: 100 - 240 V AC input frequency: 50/60 Hz Maximum input current (@110V): 10 A Maximum input current (@220V): 5 A Power factor: 0.98 Number of +12V rail(s): 1 Combined power (+3.3V): 120 W Combined power (+12V): 750 W Combined power (+5V): 120 W Combined power (-12V): 3.6 W Combined power (+5Vsb): 15 W Max output current (+3.3V): 20 A Max output current (+12V): 62.5 A Max output current (+5V): 20 A Max output current (-12V): 0.3 A Max output current (+5Vsb): 3 A Hold time: 24.5 ms Efficiency: 92.5% Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage Ports & interfaces Motherboard power connector: 20+4 pin ATX Motherboard power cable length: 60 cm Number of SATA power connectors: 6 SATA power cable length: 550,700,850,1000 mm Peripheral (Molex) power connectors (4-pin): 1 Peripheral (Molex) power cable length: 850 mm EPS power connector (8-pin): Yes PCI Express power connectors (6+2 pin): 3 PCI Express power connectors (16-pin): 1 PCI Express power cable length: 60 cm CPU P4 connector (4-pin): 1 CPU power connector (4+4 pin): Yes CPU power cable length: 70 cm PCI Express connector: Yes Cabling type: Fully-Modular Performance 80 PLUS certification: 80 PLUS Platinum Purpose: PC Power supply unit (PSU) form factor: ATX ATX version: 3.1 EPS version: 2.92 Noise level: 15.8 dB Bearing technology: Rifle Mean time between failures (MTBF): 100000 h Design Product colour: Black Cooling type: Active Fan diameter: 14 cm Number of fans: 1 fan(s) Illumination: No On/off switch: Yes Operational conditions Operating temperature (T-T): 0 - 40 °C Storage temperature (T-T): -40 - 70 °C Operating relative humidity (H-H): 0 - 85% Storage relative humidity (H-H): 0 - 95% Certificates Waste Electrical and Electronic Equipment (WEEE) compliance: Yes Compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE Weight & dimensions Width: 150 mm Depth: 160 mm Height: 86 mm Packaging data Manual: Yes Manual languages: German, English, Spanish, French, Polish, Russian, Ukrainian Package width: 248 mm Package depth: 328 mm Package height: 102 mm Package weight: 3.21 kg Package type: Box Technical details Sustainability certificates: ENERGY STAR, ErP, Triman Logistics data Shipping (inner) case length: 65.1 cm Shipping (inner) case width: 28.2 cm Shipping (inner) case height: 34.6 cm Products per shipping (inner) case: 6 pc(s) Shipping (inner) case gross weight: 19.3 kg Other features Screws included: Yes Cable ties included: Yes |
