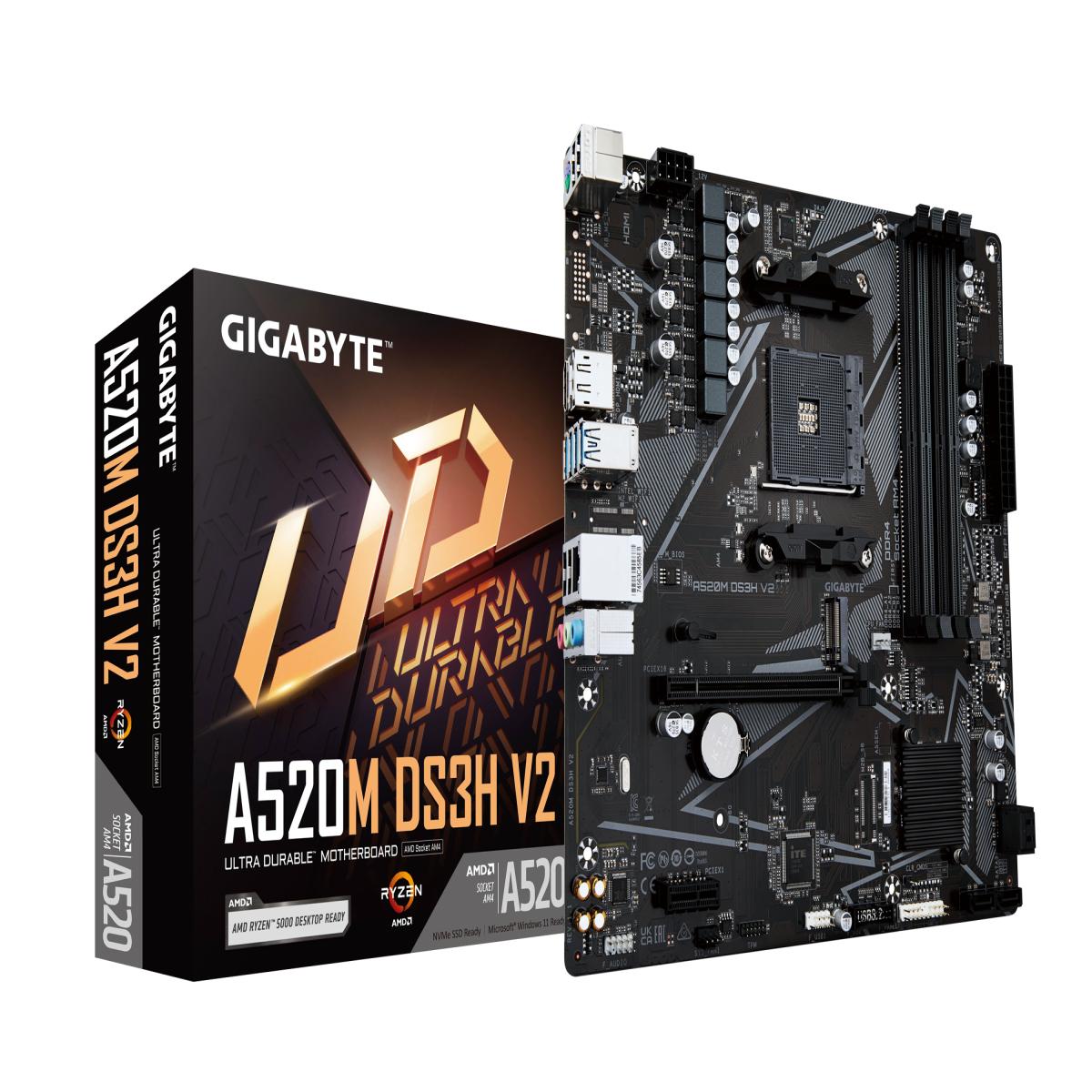

GIGABYTE A520M DS3H V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), PCIe 3.0 x16, GbE LAN, USB 3.2 Gen 1

£61.37

175 in stock

SKU: A520M DS3H V2

GIGABYTE A520M DS3H V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), PCIe 3.0 x16, GbE LAN, USB 3.2 Gen 1, AMD, Socket AM4, AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series, Socket AM4, 128 GB, DDR4-SDRAMGIGABYTE A520M DS3H V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), PCIe 3.0 x16, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. USB connector type: USB Type-A

Weight	0.81kg
Brand	GIGABYTE
Processor socket	Socket AM4
Supported memory types	DDR4-SDRAM
Motherboard form factor	micro ATX
Specifications	Processor Processor manufacturer: AMD Processor socket: Socket AM4 Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series Maximum number of SMP processors: 1 Supported processor sockets: Socket AM4 Maximum internal memory supported by processor: 128 GB Memory Supported memory types: DDR4-SDRAM Number of memory slots: 4 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: ECC & Non-ECC Supported memory clock speeds: 2133,2400,2667,2933,3200,3333,3600,4000,4400,4733 MHz Maximum internal memory: 128 GB Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 16GB, 32GB Unbuffered memory: Yes Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, SATA III Number of HDDs supported: 4 Number of storage drives supported: 5 RAID support: Yes RAID levels: 0, 1, 10 Graphics Maximum resolution: 5120 x 2880 pixels HDCP: Yes Discrete graphics support: Yes Number of displays supported: 3 Internal I/O USB 2.0 connectors: 1 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1 Number of SATA III connectors: 4 Total number of SATA connectors: 4 Front panel audio connector: Yes Front panel connector: Yes ATX Power connector (24-pin): Yes Number of EATX power connectors: 1 Power fan connector: Yes CPU fan connector: Yes TPM connector: Yes Serial port headers: 1 12V power connector: Yes Rear panel I/O ports USB 2.0 ports quantity: 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4 Ethernet LAN (RJ-45) ports: 1 PS/2 ports quantity: 1 HDMI ports quantity: 1 HDMI version: 2.1 DVI-D ports quantity: 1 DisplayPorts quantity: 1 DisplayPort version: 2.0 Headphone outputs: 1 Microphone in: Yes Digital audio optical out: 1 USB connector type: USB Type-A Network Ethernet LAN: Yes Ethernet interface type: Gigabit Ethernet Wi-Fi: No Features Audio chip: Realtek ALC887 Audio output channels: 7.1 channels Product colour: Black PC health monitoring: CPU, LED, Power supply, Temperature, Voltage Component for: PC Motherboard form factor: micro ATX Motherboard chipset family: AMD Cooling type: Active Power source type: ATX Windows operating systems supported: Windows 10 x64 Expansion slots PCI Express x1 (Gen 3.x) slots: 2 PCI Express x16 (Gen 3.x) slots: 1 Number of M.2 (M) slots: 1 BIOS BIOS type: UEFI AMI BIOS memory size: 128 Mbit ACPI version: 5.0 Clear CMOS jumper: Yes Clear CMOS button: Yes Desktop Management Interface (DMI) version: 2.7 System Management BIOS (SMBIOS) version: 2.7 Logistics data Country of origin: China Products per shipping (inner) case: 1 pc(s) Battery Battery weight: 3 g Lithium weight per battery: 0.07 g Number of battery cells: 1 Battery technology: Lithium-Manganese Dioxide (LiMnO2) Battery type: CR2032 Packaging data Package width: 265 mm Package depth: 265 mm Package height: 54 mm Package weight: 810 g Weight & dimensions Width: 244 mm Depth: 244 mm Height: 35 mm Packaging content Cables included: SATA Batteries included: Yes Drivers included: Yes Bundled software: Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility Technical details Warranty period: 3 year(s)
