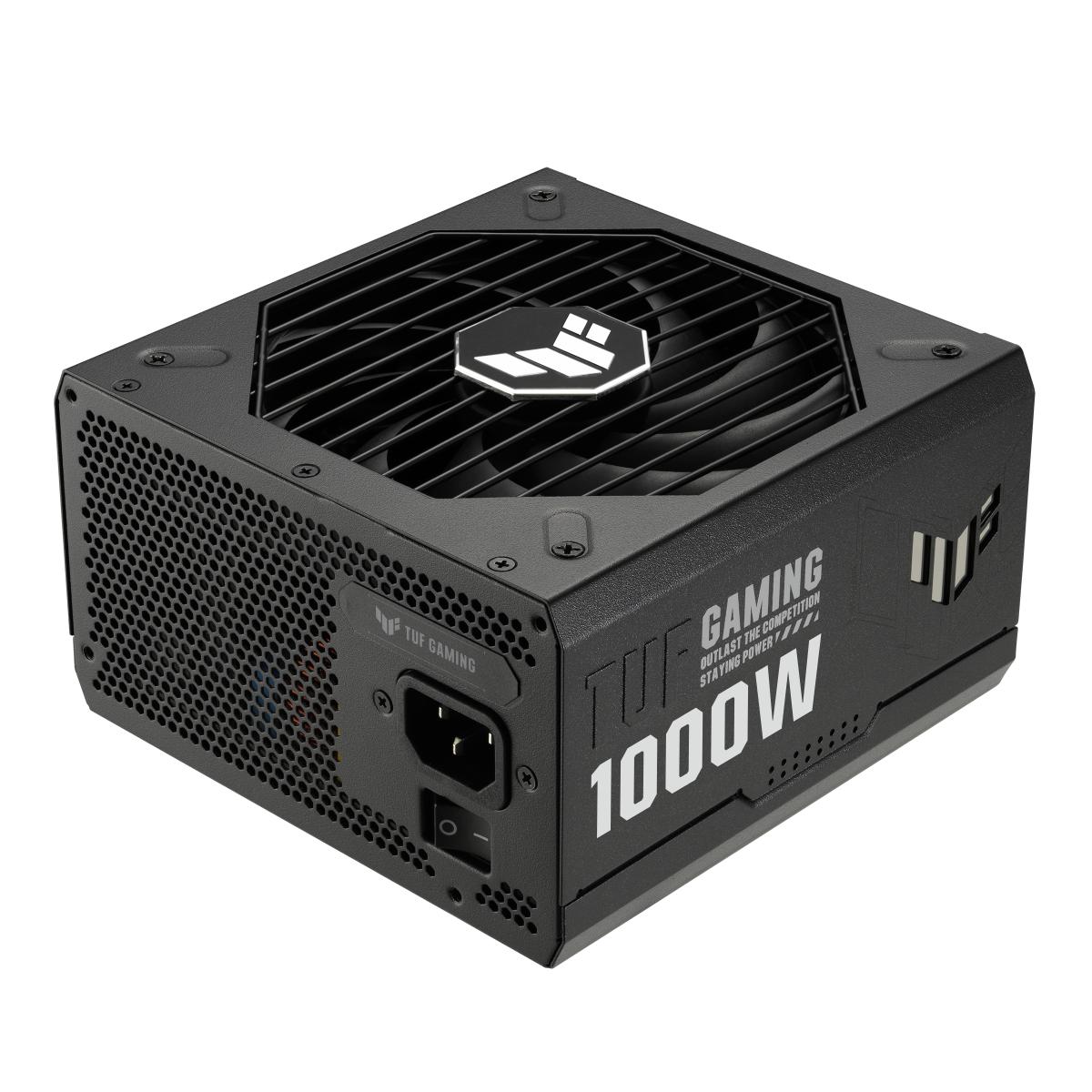

ASUS TUF Gaming 1000W Gold power supply unit 20+4 pin ATX ATX Black
£131.56
out of stock
SKU: 90YE00S1-B0NA00
Built For The Long HaulThe ASUS TUF Gaming 1000W Gold packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.DurabilityTUF ComponentsTop marksWith military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours’ lifespan, the ASUS TUF Gaming 1000W Gold empowers you to build in confidence.Dual Ball Fan Bearings2x longer lifespanExemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.Protective PCB CoatingAll wrapped upA protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.ENGINEERING80 Plus Gold CertificationHeart of goldThe TUF Gaming 1000W Gold Aura Edition features efficient, low-ESR Japanese capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.ATX 3.1 CompatibleStep into the futureThe latest power specification updates have landed. ATX 3.1 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and TUF Gaming 1000W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.Axial-tech Fan DesignBetter, faster, strongerAxial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.EXPERIENCE10-year WarrantyA decade of powerWe're so confident about the reliability of the TUF Gaming 1000W Gold that we back it with a 10-year worldwide warranty.Fully Modular Etched CablesSupple plyThe included fully-modular cable set is etched to provide a similar aesthetic to sleeved cables but a touch more flexibility for tight spaces.
E&OE
- 1000 W 100 - 240 V
- Motherboard power connector: 20+4 pin ATX
- PC ATX 80 PLUS Gold
- Active 13.5 cm
- Black
| Weight | 3.17kg |
|---|---|
| Brand | ASUS |
| Total power | 1000 W |
| Number of SATA power connectors | 5 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Specifications | Power Total power: 1000 W AC input voltage: 100 - 240 V Combined power (+3.3V): 130 W Combined power (+12V): 1000 W Combined power (+5V): 130 W Combined power (-12V): 9.6 W Combined power (+5Vsb): 15 W Max output current (+3.3V): 25 A Max output current (+12V): 83.3 A Max output current (+5V): 25 A Max output current (-12V): 0.8 A Max output current (+5Vsb): 3 A Efficiency: 92% Power protection features: Over power, Over voltage, Overcharge, Overheating, Short circuit, Under power, Under voltage Ports & interfaces Motherboard power connector: 20+4 pin ATX Motherboard power cable length: 61 cm Number of SATA power connectors: 5 SATA power cable length: 120,400 mm Peripheral (Molex) power connectors (4-pin): 4 Peripheral (Molex) power cable length: 150,400 mm PCI Express power connectors (8-pin): 4 PCI Express power connectors (16-pin): 1 PCI Express power cable length: 67.5 cm CPU power connector (4+4 pin): Yes CPU power cable length: 65 cm ATX power connector (20+4 pin): Yes PCI Express connector: Yes Cabling type: Fully-Modular Performance 80 PLUS certification: 80 PLUS Gold Purpose: PC Power supply unit (PSU) form factor: ATX ATX version: 3.1 Design Product colour: Black Cooling type: Active Fan diameter: 13.5 cm Number of fans: 1 fan(s) Illumination: No On/off switch: Yes Packaging content Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA Cable tie(s) included: Yes Certificates Compliance certificates: RoHS Weight & dimensions Width: 150 mm Depth: 150 mm Height: 86 mm Weight: 2.48 kg Packaging data Package width: 310 mm Package depth: 200 mm Package height: 108 mm Package weight: 3.17 kg Package type: Box Technical details Sustainability compliance: Yes |
