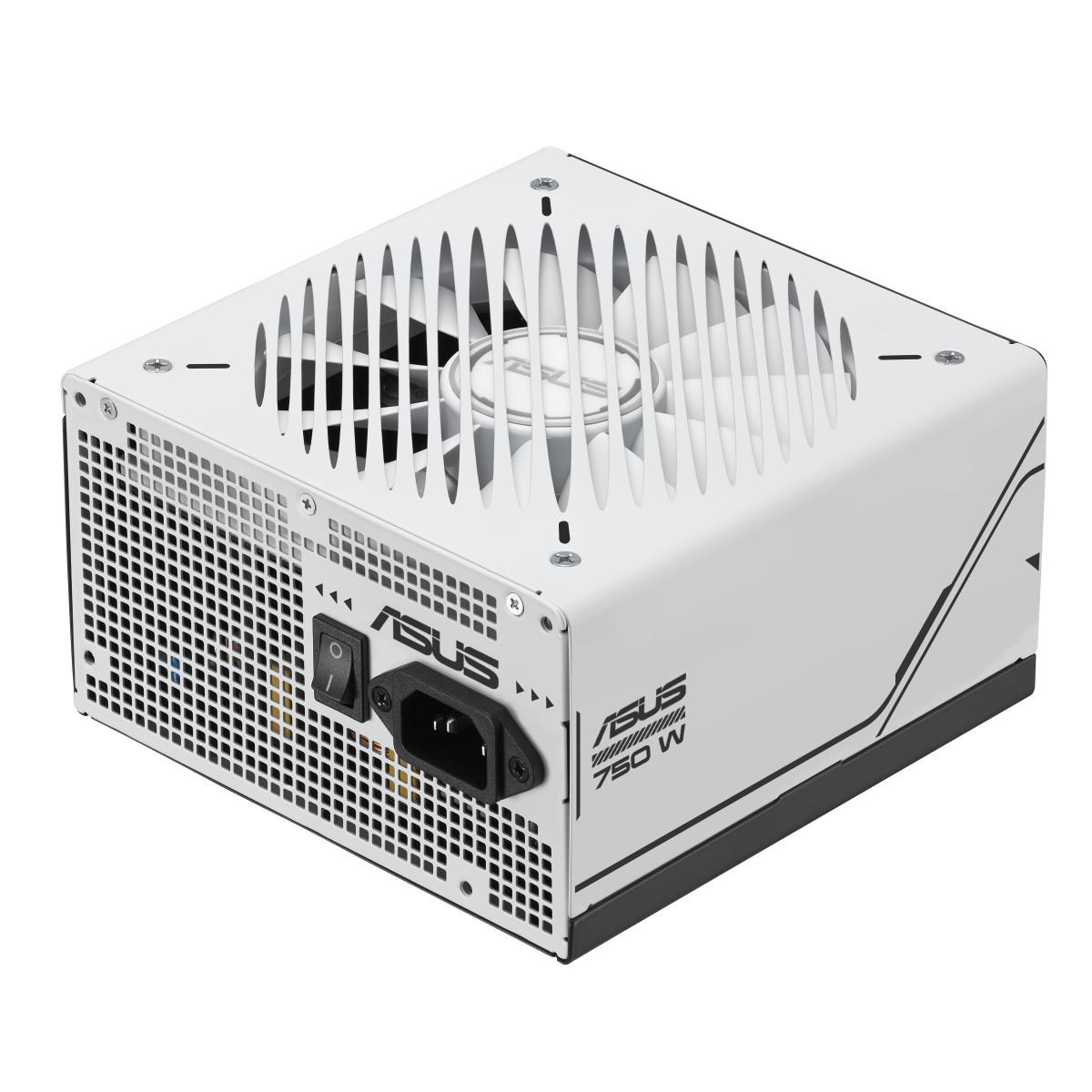

ASUS Prime AP-750G power supply unit 750 W 20+4 pin ATX ATX Black, White
£98.04
ASUS Prime AP-750G, 750 W, 100 - 240 V, Active, 110 W, 744 W, 110 W
out of stock
SKU: 90YE00U1-B0NA00
ASUS Prime AP-750G. Total power: 750 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 120,400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, White, Cooling type: Active. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
| Weight | 2.88kg |
|---|---|
| Brand | ASUS |
| Total power | 750 W |
| Number of SATA power connectors | 5 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Specifications | Power Total power: 750 W AC input voltage: 100 - 240 V Power Factor Correction (PFC) type: Active Combined power (+3.3V): 110 W Combined power (+12V): 744 W Combined power (+5V): 110 W Combined power (-12V): 3.6 W Combined power (+5Vsb): 12.5 W Max output current (+3.3V): 20 A Max output current (+12V): 62 A Max output current (+5V): 20 A Max output current (-12V): 0.3 A Max output current (+5Vsb): 2.5 A Efficiency: 92% Power protection features: Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage Ports & interfaces Motherboard power connector: 20+4 pin ATX Motherboard power cable length: 61 cm Number of SATA power connectors: 5 SATA power cable length: 120,400 mm Peripheral (Molex) power connectors (4-pin): 3 Peripheral (Molex) power cable length: 150,400 mm PCI Express power connectors (8-pin): 3 PCI Express power connectors (16-pin): 1 CPU P4 connector (4-pin): 2 CPU power connector (4+4 pin): Yes CPU power cable length: 65 cm ATX power connector (20+4 pin): Yes PCI Express connector: Yes Cabling type: Fully-Modular Performance 80 PLUS certification: 80 PLUS Gold Purpose: PC Power supply unit (PSU) form factor: ATX ATX version: 3.0 Bearing technology: Ball bearing Mean time between failures (MTBF): 120000 h Design Product colour: Black, White Cooling type: Active Illumination: No On/off switch: Yes Packaging content Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA Weight & dimensions Width: 150 mm Depth: 150 mm Height: 86 mm Weight: 1.47 kg Packaging data Package width: 346 mm Package depth: 208 mm Package height: 144 mm Package weight: 2.88 kg Package type: Box |
