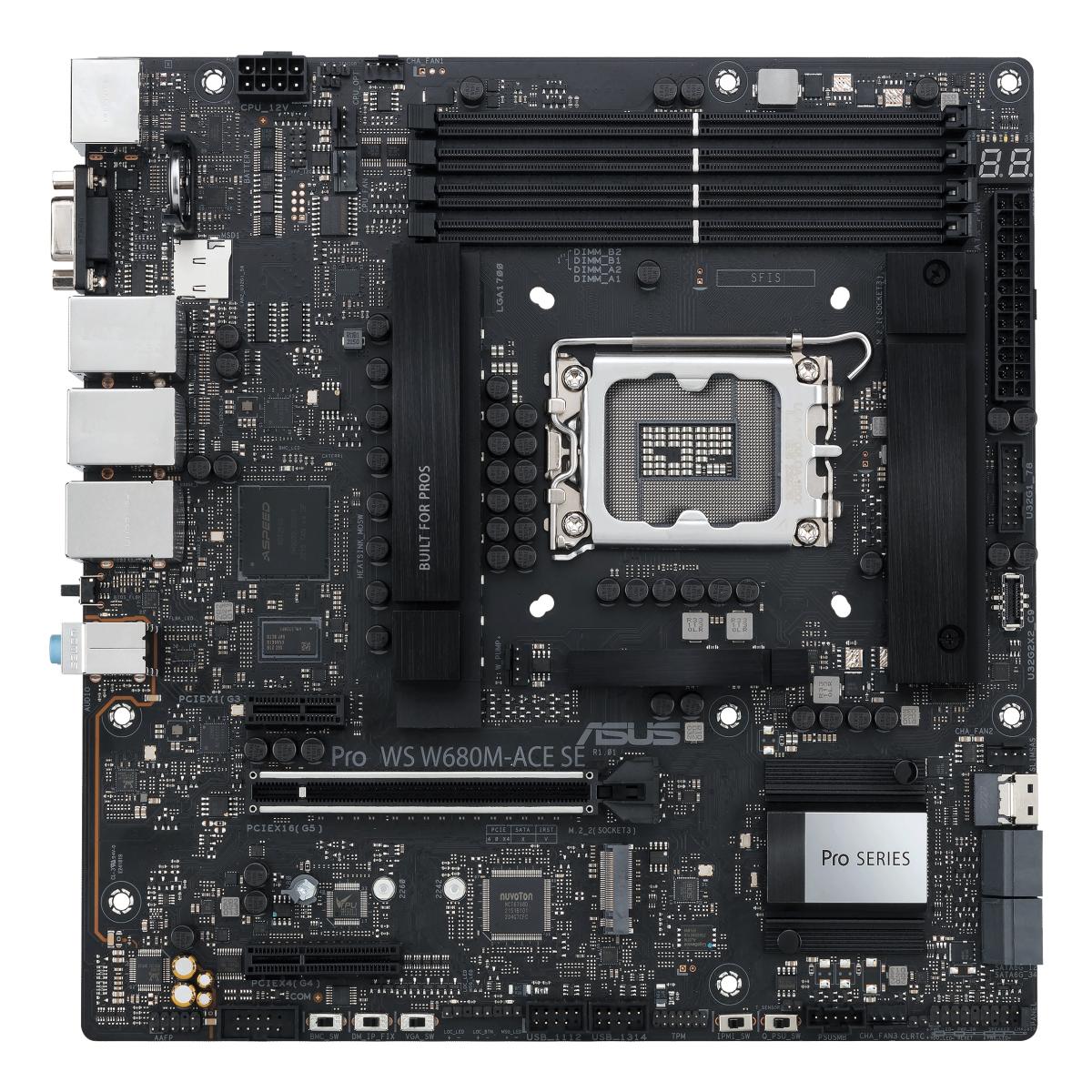

ASUS PRO WS W680M-ACE SE Intel W680 LGA 1700 micro ATX
£475.46
ASUS PRO WS W680M-ACE SE, Intel, LGA 1700, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, LGA 1700, DDR5-SDRAM, 192 GB
10 in stock
SKU: 90MB1FA0-M0EAY0
ASUS PRO WS W680M-ACE SE. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, NVMe, PCI Express 4.0, SATA III, SlimSAS, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
| Weight | 1.35kg |
|---|---|
| Specifications | Processor Processor manufacturer: Intel Processor socket: LGA 1700 Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 Supported processor sockets: LGA 1700 Memory Supported memory types: DDR5-SDRAM Number of memory slots: 4 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: Non-ECC Maximum internal memory: 192 GB Unbuffered memory: Yes Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, NVMe, PCI Express 4.0, SATA III, SlimSAS Number of HDDs supported: 8 Number of storage drives supported: 10 RAID support: Yes RAID levels: 0, 1, 5, 10 Graphics Parallel processing technology support: Not supported Internal I/O USB 2.0 connectors: 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1 USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1 Number of SATA III connectors: 4 Audio connector: Yes Front panel connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes Number of chassis fan connectors: 3 Chassis intrusion connector: Yes EPS power connector (8-pin): Yes Number of COM connectors: 1 TPM connector: Yes 12V power connector: Yes Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1 Ethernet LAN (RJ-45) ports: 3 VGA (D-Sub) ports quantity: 1 HDMI ports quantity: 1 HDMI version: 2.1 DisplayPorts quantity: 1 DisplayPort version: 1.4 Headphone outputs: 1 Line-in: Yes Number of SAS ports: 1 Network Ethernet LAN: Yes Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet Wi-Fi: No Features Motherboard chipset: Intel W680 Audio output channels: 7.1 channels Component for: PC Motherboard form factor: micro ATX Motherboard chipset family: Intel Cooling type: Passive Power source type: ATX Windows operating systems supported: Windows 10, Windows 11 Expansion slots PCI Express x1 (Gen 3.x) slots: 1 PCI Express x4 (Gen 4.x) slots: 1 PCI Express x16 (Gen 5.x) slots: 1 Number of M.2 (M) slots: 2 BIOS BIOS type: UEFI AMI BIOS memory size: 256 Mbit Packaging data Package width: 275 mm Package depth: 275 mm Package height: 67.5 mm Package weight: 1.35 kg Weight & dimensions Width: 244 mm Depth: 244 mm Packaging content Cables included: SATA User guide: Yes Other features Weight: 820 g Back-to-BIOS button: Yes |
