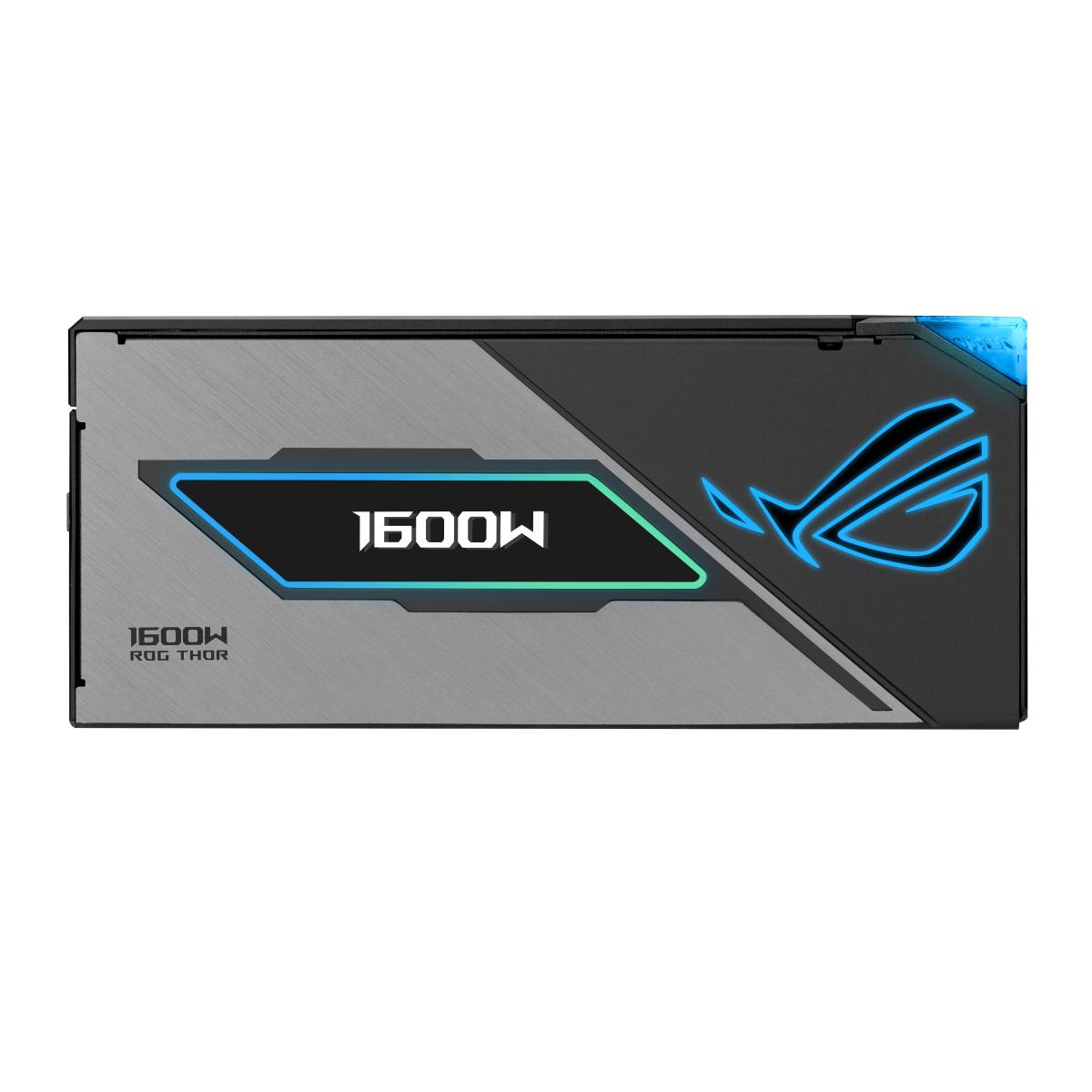

ASUS ROG -THOR-1600T3-GAMING power supply unit 1600 W 20+4 pin ATX ATX Grey
£691.49
ASUS ROG -THOR-1600T3-GAMING, 1600 W, 100 - 240 V, Active, 125 W, 1600 W, 125 W
out of stock
SKU: 90YE00V1-B0NA00
ULTIMATE POWER. UNMATCHED STABILITY.The ROG Thor 1600W Titanium III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads.The ROG Thor 1600W Titanium III also features the signature Thor OLED display, now upgraded for easy magnetic attachment - it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
E&OE
- 1600 W 100 - 240 V
- Motherboard power connector: 20+4 pin ATX
- PC ATX 80 PLUS Titanium
- Active
- Grey
| Weight | 6.30kg |
|---|---|
| Specifications | Power Total power: 1600 W AC input voltage: 100 - 240 V Power Factor Correction (PFC) type: Active Combined power (+3.3V): 125 W Combined power (+12V): 1600 W Combined power (+5V): 125 W Combined power (-12V): 3.6 W Combined power (+5Vsb): 15 W Max output current (+3.3V): 30 A Max output current (+12V): 133.3 A Max output current (+5V): 25 A Max output current (-12V): 0.3 A Max output current (+5Vsb): 3 A Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage Ports & interfaces Motherboard power connector: 20+4 pin ATX Motherboard power cable length: 61 cm Number of SATA power connectors: 10 SATA power cable length: 120,400 mm Peripheral (Molex) power connectors (4-pin): 9 Peripheral (Molex) power cable length: 150,400 mm PCI Express power connectors (6+2 pin): 4 PCI Express power connectors (16-pin): 2 PCI Express power cable length: 75 cm CPU power connector (4+4 pin): Yes CPU power cable length: 100 cm PCI Express connector: Yes Cabling type: Fully-Modular Performance 80 PLUS certification: 80 PLUS Titanium Purpose: PC Power supply unit (PSU) form factor: ATX ATX version: 3.1 Silent mode: Yes Bearing technology: DBB Mean time between failures (MTBF): 120000 h Design Product colour: Grey Cooling type: Active Number of fans: 1 fan(s) Illumination: Yes Built-in display: Yes Display type: OLED On/off switch: Yes Packaging content Cables included: CPU, PCIe, Peripheral (Molex), SATA Cable tie(s) included: Yes Weight & dimensions Width: 200 mm Depth: 150 mm Height: 86 mm Weight: 2.8 kg Packaging data Package width: 390 mm Package depth: 251 mm Package height: 159 mm Package weight: 6.3 kg Package type: Box |
